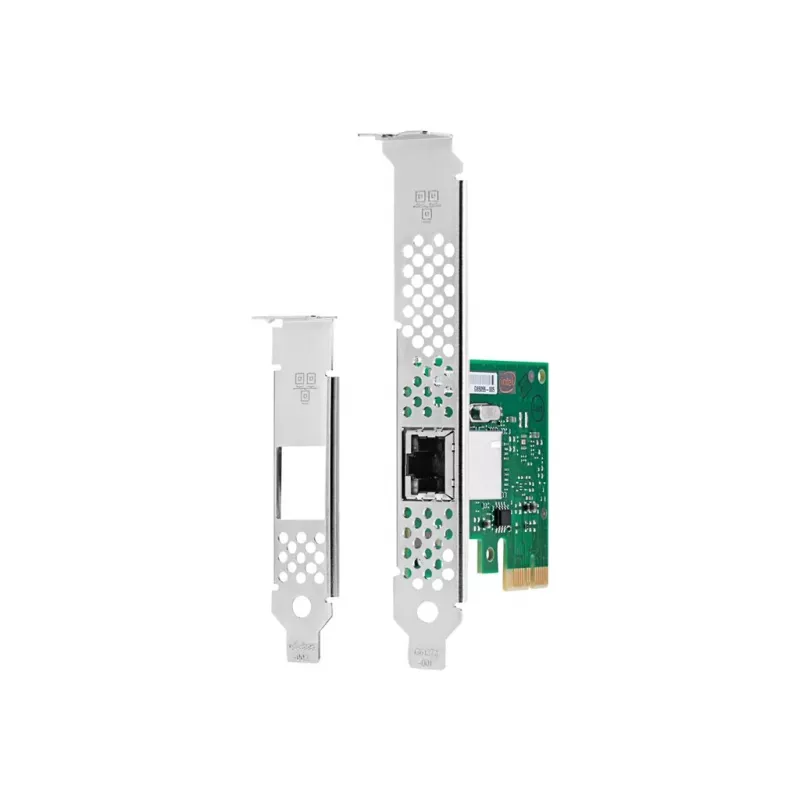

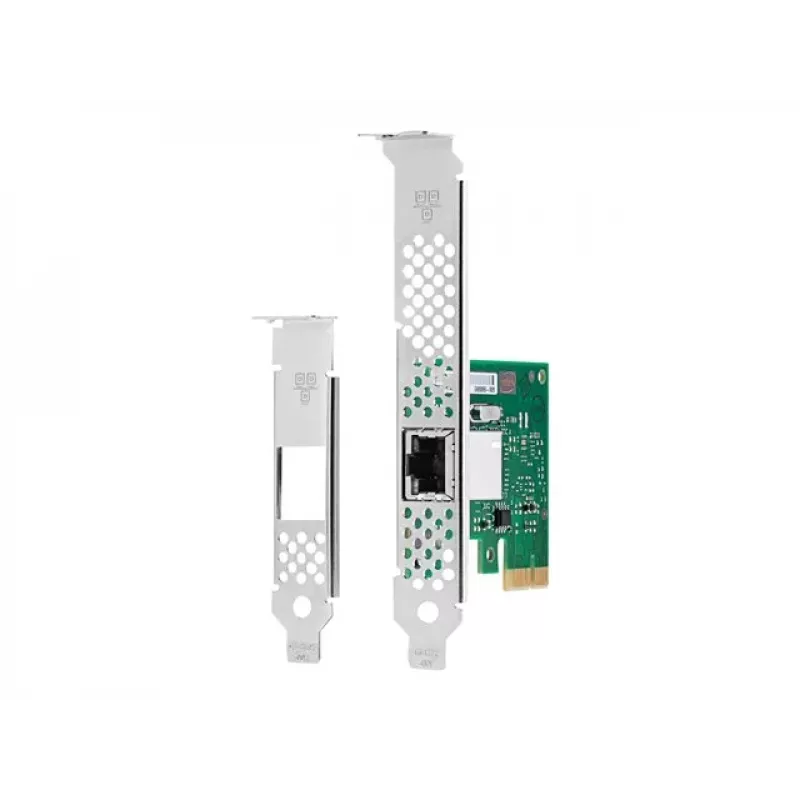

HP Intel I210-T1 verkkosovitin - PCIe 2.1 Low-Profile

The HP Intel I210-T1 Network Adapter is a high-performance Gigabit Ethernet adapter designed for HP ProLiant Gen8/Gen9 servers. It features a single RJ-45 port and utilizes the Intel I210-AT controller for reliable and efficient network connectivity. The adapter supports PCI Express 2.1 x4 interface and comes with a low-profile bracket, making it suitable for space-constrained environments.

Advantages

This network adapter offers enhanced network performance with support for jumbo frames up to 9KB, TCP/IP checksum offload, VLAN tagging, and teaming. It also features Energy Efficient Ethernet (EEE) to reduce power consumption during low data activity. The adapter is compatible with various operating systems including Windows Server, Linux, and VMware ESXi.

Suitable for

• HP ProLiant Gen8 and Gen9 servers requiring a reliable Gigabit Ethernet connection
• Data centers and enterprise environments needing low-profile network adapters
• Applications that benefit from advanced features like jumbo frames and VLAN tagging

Key specifications

• Product Type: Network Adapter
• Interface: PCI Express 2.1 x4
• Ports: 1 x Gigabit Ethernet (RJ-45)
• Data Transfer Rate: 1 Gbps
• Controller Chipset: Intel I210-AT
• Form Factor: Low-profile plug-in card
• Network Standards: IEEE 802.3, 802.3u, 802.3ab
• Features: PXE support, Jumbo Frames (up to 9KB), TCP/IP checksum offload, VLAN tagging, IPv6 support, Teaming support, Energy Efficient Ethernet
• Bracket Type: Low-profile (standard height bracket included)
• Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• LED Indicators: Link/Activity
• Duplex Mode: Full Duplex, Half Duplex
• Virtualization Support: VMware NetQueue, Microsoft VMQ
• Cabling Type: Copper (1000Base-T)
• Max Power Consumption: 3.5 W

Recommendations

For optimal performance, ensure your server has an available PCI Express 2.1 x4 slot. The adapter is ideal for upgrading network connectivity in HP ProLiant servers, providing reliable and efficient data transfer.
