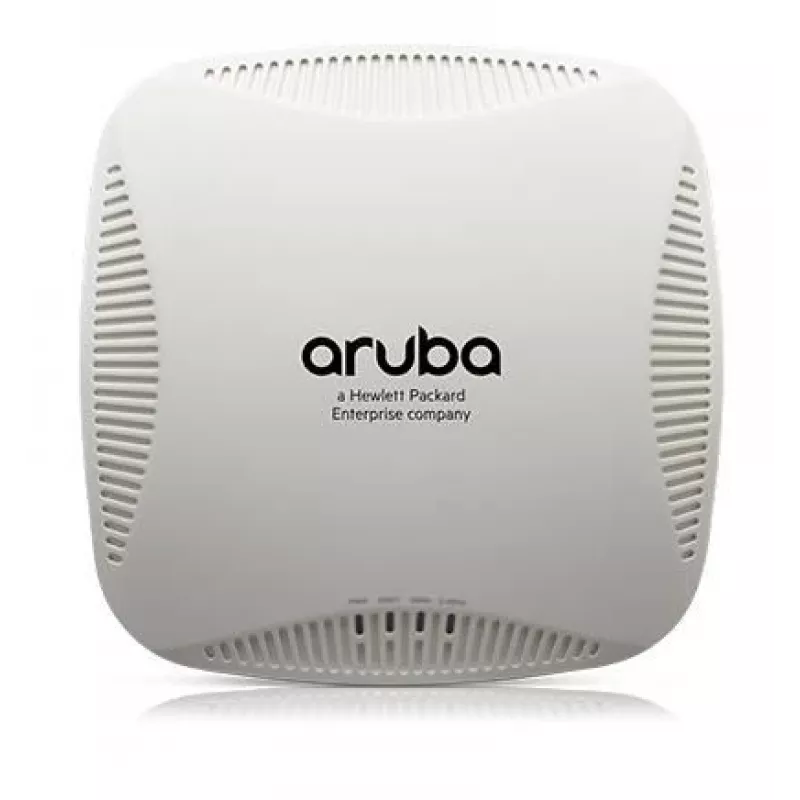

Hewlett Packard Enterprise Aruba AP-205 Dual 2x2:2 JW164A-RFB 2,4 GHz 5 GHz 802.11ac

Hewlett Packard Enterprise Aruba AP-205 Dual 2x2:2 JW164A-RFB 2.4GHz 5GHz 802.11ac is a dual-band wireless access point that supports 802.11ac connectivity with a 2x2:2 antenna configuration. Designed for deployments in small and medium offices, classrooms, and public areas, the AP-205 provides concurrent operation on 2.4 GHz and 5 GHz bands and delivers combined data throughput up to 1.2 Gbps. The unit is intended for managed network environments and integrates with Aruba network controllers or cloud management platforms for centralized configuration and monitoring.

Advantages

The Aruba AP-205 offers dual-band operation (2.4 GHz and 5 GHz) and a 2x2:2 MIMO antenna layout that supports reliable spatial streams and improved throughput for modern client devices. Support for the 802.11ac standard ensures compatibility with a wide range of laptops, smartphones and tablets while delivering up to 1.2 Gbps aggregate data rates. The access point supports managed deployment models, enabling centralized policy enforcement, firmware updates and performance monitoring. Its form factor and mounting options make it suitable for ceiling or wall installation in indoor environments.

Suitable for

• Small and medium-sized office wireless networks
• Classroom and educational campus Wi‑Fi coverage
• Public indoor spaces such as libraries and meeting rooms
• Managed environments that require centralized controller or cloud management

Key specifications

• Model: Aruba AP-205 (JW164A-RFB)
• Standards: IEEE 802.11ac (backward compatible with 802.11a/b/g/n)
• Frequency bands: 2.4 GHz and 5 GHz (dual-band concurrent)
• Antenna: 2x2:2 MIMO configuration
• Maximum data rate: Up to 1.2 Gbps aggregate
• Management: Integrates with Aruba controllers and cloud management platforms
• Brand: HP Enterprise
• MPN: JW164A-RFB
• EAN: 5704174560586

How to use

Install the AP-205 on a ceiling or wall using the manufacturer-supplied mounting kit and connect it to the wired network using an Ethernet cable. Power the unit via Power over Ethernet (PoE) from a compatible switch or PoE injector. Adopt the access point into the existing Aruba controller or cloud management account following Aruba’s provisioning procedure to apply SSIDs, security settings and policies. Place access points to provide overlapping coverage while avoiding sources of radio interference and ensure proper channel planning if using controller-managed radio settings.

Recommendations

For optimal performance, place the AP-205 centrally in the coverage area with minimal obstructions, keep firmware up to date through the management platform, and configure separate SSIDs or VLANs for guest and corporate traffic. Use channel planning and power tuning via the Aruba controller to reduce co-channel interference in dense deployments.
