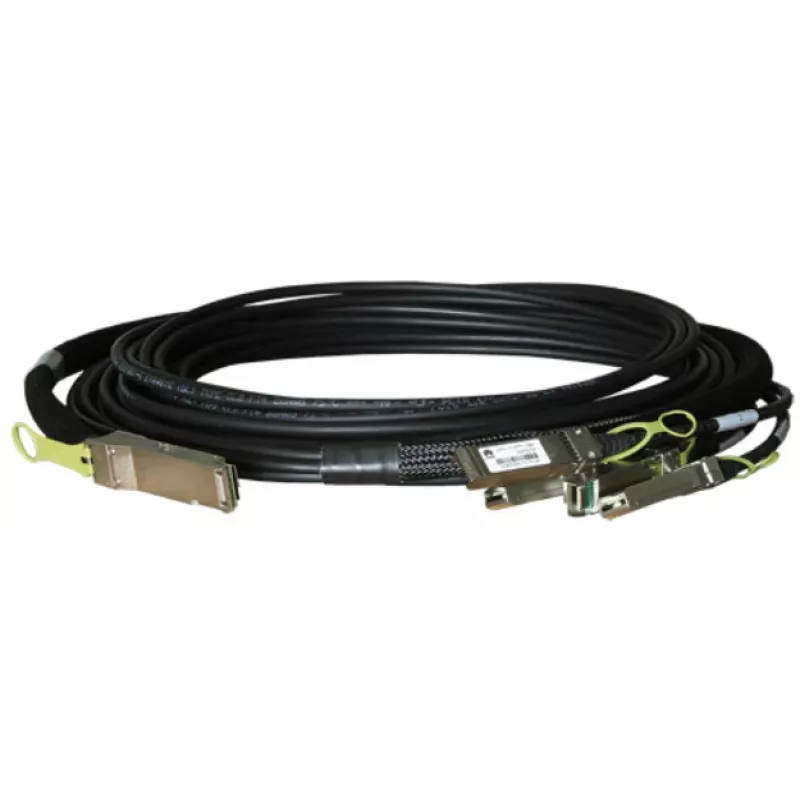

HUAWEI SFP+ 10G High Speed Direct-Attach Cable 1m SFP+20M CC2P0.254B(S) SFP+20M Used Indoor

The HUAWEI SFP+ 10G High Speed Direct-Attach Cable (DAC) is a passive copper twinax cable designed for high-performance data center and enterprise network connections. With a length of 1 meter, it provides a cost-effective, low-latency solution for 10 Gigabit Ethernet links between switches, servers, and storage devices.

Advantages

This direct-attach cable eliminates the need for separate transceivers, reducing cost and power consumption. Its passive design ensures zero power draw from the host equipment, while the SFP+ connectors offer hot-swappable convenience. The cable is fully compliant with IEEE 802.3ae and SFF-8431 standards, guaranteeing interoperability with standard SFP+ ports.

Suitable for

• Data center interconnects
• Server-to-switch connections
• Network Attached Storage (NAS) links
• High-performance computing environments

Key specifications

• Cable Type: Direct Attach Cable (DAC) - Passive
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Cable Length: 1 meter (3.3 ft)
• Cable Material: Copper Twinax, 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Power Consumption: <0.1W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Voltage Supply: 3.3V
• Hot-Swappable: Yes
• RoHS Compliant: Yes
• Standards: IEEE 802.3ae, SFF-8431, SFF-8472

Recommendations

For optimal performance, use this cable with compatible SFP+ ports on Huawei or other standard equipment. Ensure proper handling to avoid damage to the connectors. This cable is intended for indoor use only.
