IGLU CHARGE AC SERIES PRO -malli ilman lämmitystä ja mittaria

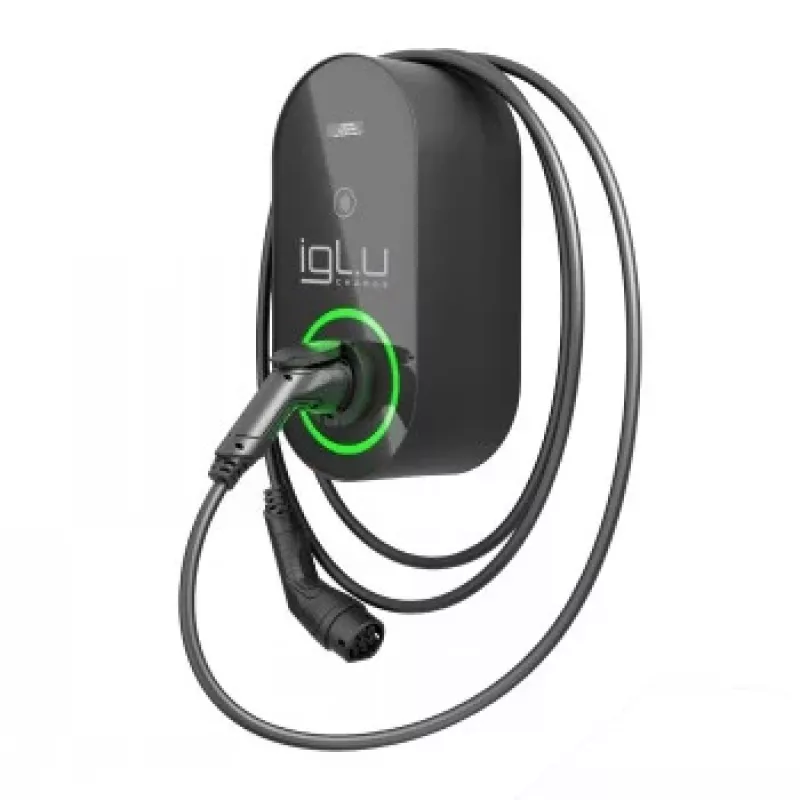

For electricians and facility managers equipping commercial parking areas or residential complexes, the IGLU TECH C320002000/H01 AC Series Pro delivers robust 22 kW three-phase charging in a compact wall-mounted unit. Built without integrated heating or energy metering, it is ideal for installations where external metering is already present and a straightforward, high-power AC charging point is required.

Key specifications

• Charging power: 22 kW (3-phase, 32 A per phase)
• Input voltage: 400 V AC (3-phase + N + PE), 50/60 Hz
• Connector: Type 2 (IEC 62196-2) with 5 m integrated cable
• Communication: OCPP 1.6J via Wi-Fi, Bluetooth, or Ethernet
• Protection: IP65, IK10, integrated DC 6 mA fault detection, overcurrent, overvoltage, undervoltage, short circuit, ground fault, surge protection, temperature monitoring
• Operating temperature: -30°C to +50°C
• Housing: UV-resistant PC/ABS
• Certifications: CE, RoHS, IEC 61851-1, IEC 62196-2

Why choose it

This charger offers fast 22 kW AC charging for compatible electric vehicles, significantly reducing charging time compared to lower-power units. Its rugged IP65 and IK10 ratings ensure reliable operation in harsh outdoor environments, while multiple connectivity options and OCPP 1.6J compliance make it easy to integrate into existing charging management systems. The omission of internal heating and metering simplifies the design and reduces cost for projects where those functions are handled externally.

Ideal use cases

• Commercial parking lots and fleet depots requiring high-power AC charging
• Residential complexes with dedicated EV parking and external metering
• Workplace charging stations for employees
• Public charging networks managed via OCPP backend

Good to know

Installation requires a dedicated three-phase circuit with appropriate external RCD Type A protection. The integrated DC 6 mA fault detection covers DC leakage, but an external RCD Type A is still mandatory. The charger does not include an energy meter, so an external meter must be installed for billing or monitoring. The 5-meter cable provides flexibility in vehicle positioning, and the unit can be controlled via mobile app or integrated into a smart charging network.
