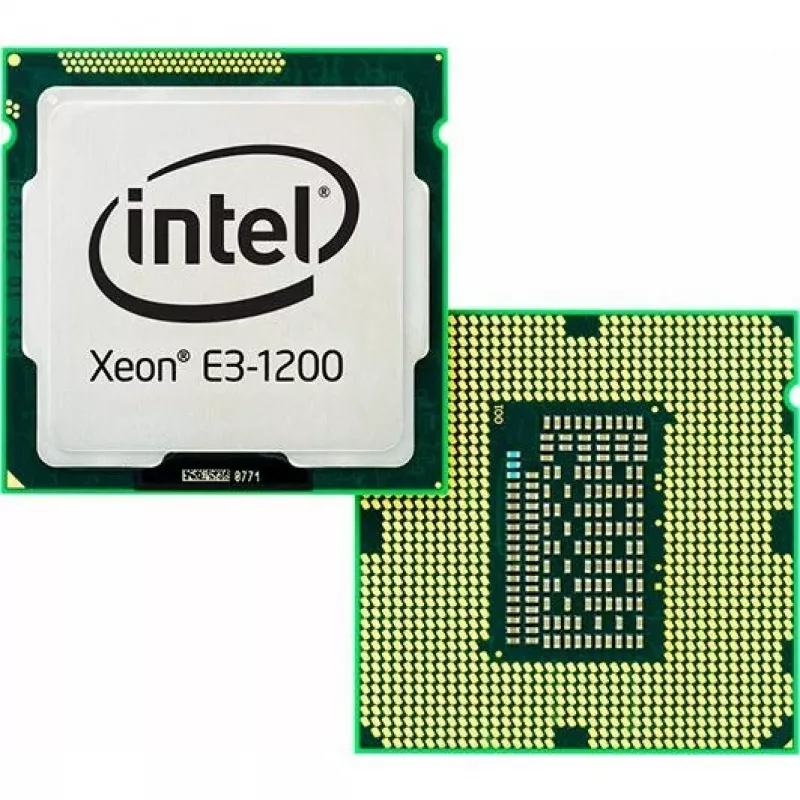

Intel Xeon E3-1230V5 3,4GHz neliydin LGA1151 palvelinprosessori

With a base clock of 3.4GHz and Turbo Boost up to 3.8GHz, the Intel Xeon E3-1230V5 delivers responsive performance for entry-level servers and workstations. Four physical cores and eight threads handle multitasking and parallel workloads with ease, while 8MB of Smart Cache reduces latency for frequently accessed data.

Overview

The Intel Xeon E3-1230V5 is a 64-bit server-grade processor built on 14nm lithography. It fits the LGA1151 socket and supports both DDR4-2133 and DDR3L-1600 memory, with ECC support for enhanced data integrity. The processor lacks integrated graphics, making it ideal for systems with discrete GPUs or headless server configurations.

What stands out

• 4 cores and 8 threads via Intel Hyper-Threading Technology
• Turbo Boost up to 3.8GHz for burst performance
• 8MB Intel Smart Cache
• ECC memory support for reliability
• 16 PCIe 3.0 lanes for expansion
• 80W TDP balances performance and power efficiency

Technical details

• Processor family: Intel Xeon E3 v5
• Socket: LGA1151
• Base frequency: 3.4GHz
• Max turbo frequency: 3.8GHz
• Memory support: DDR4-2133, DDR3L-1600
• Max memory: 64GB
• Memory channels: 2
• ECC: Yes
• PCIe revision: 3.0
• Max PCIe lanes: 16
• Lithography: 14nm
• Virtualization: VT-x, VT-d, EPT
• Security: AES-NI, Trusted Execution Technology
• Thermal monitoring: Yes

Our verdict

The Xeon E3-1230V5 is a solid choice for small business servers, NAS devices, and entry-level workstations. Its combination of four high-clocked cores, ECC support, and low TDP makes it a dependable foundation for always-on systems.
