IP-valvontakamera EZVIZ TY1

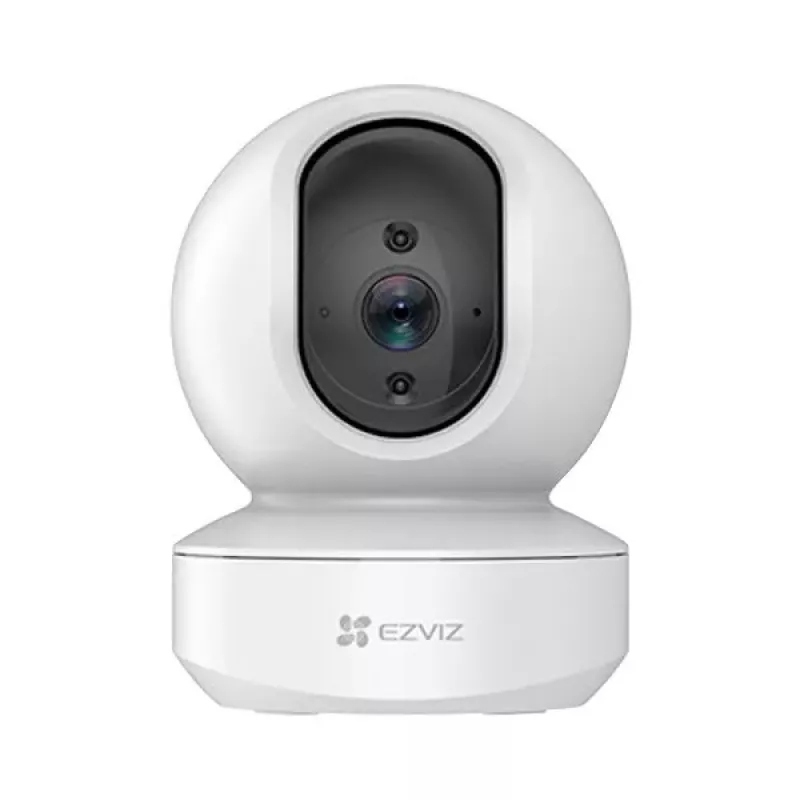

The EZVIZ TY1 is a compact indoor IP security camera that delivers 1920 x 1080 Full HD video and wireless connectivity for home or small office monitoring. Its spherical pan-and-tilt design provides an effective 360-degree field of view for wide coverage, and the camera can be mounted on ceilings or walls. The TY1 uses a 4 mm fixed focal length CMOS sensor and supports two simultaneous storage options for recordings.

Advantages

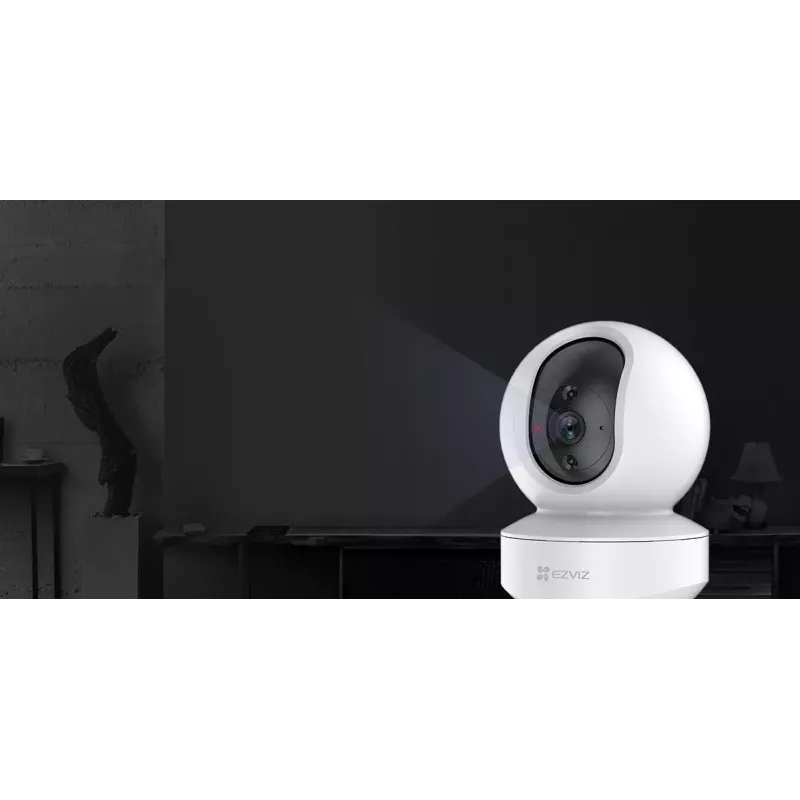

The TY1 offers full-room coverage with its pan-and-tilt mechanism and built-in smart tracking that follows moving objects and sends real-time image alerts. Two-way audio enables live communication through the EZVIZ App, while infrared LEDs provide night vision up to about 10 meters (33 feet). Data transmission to the EZVIZ Cloud is end-to-end encrypted, and a sleep mode is available to enhance privacy.

Suitable for

• Home monitoring of living rooms, nurseries and entryways
• Small office surveillance and reception areas
• Remote check-ins with family members via two-way audio
• Continuous indoor monitoring where full coverage is needed

Key specifications

• Model: EZVIZ TY1 (MPN 303101669, EAN 6941545601380)
• Resolution: 1920 x 1080 (Full HD)
• Sensor: CMOS, fixed focal length 4 mm
• Field of view: 75° horizontal / 45° vertical / 85° diagonal (effective 360° via pan & tilt)
• Night vision: Infrared LEDs, up to ~10 m (33 ft)
• Connectivity: Wi‑Fi (wireless)
• Mounting: Ceiling or wall
• Storage: Two storage options; can save to both simultaneously

How to use

Install the TY1 on a ceiling or wall using the supplied mounting hardware, then connect it to your Wi‑Fi network following the EZVIZ App setup wizard. Use the app to position the camera, enable smart tracking, and configure motion alerts. Access live view, two-way talk, and recorded clips in the app; recordings can be stored to the chosen storage locations.

Recommendations

Place the camera centrally in the room and at a height that allows unobstructed rotation for full 360° coverage. Use the EZVIZ App to test night-vision performance in the intended environment and enable sleep mode when privacy is required. For critical footage, enable dual storage so recordings are backed up if one storage option becomes unavailable.
