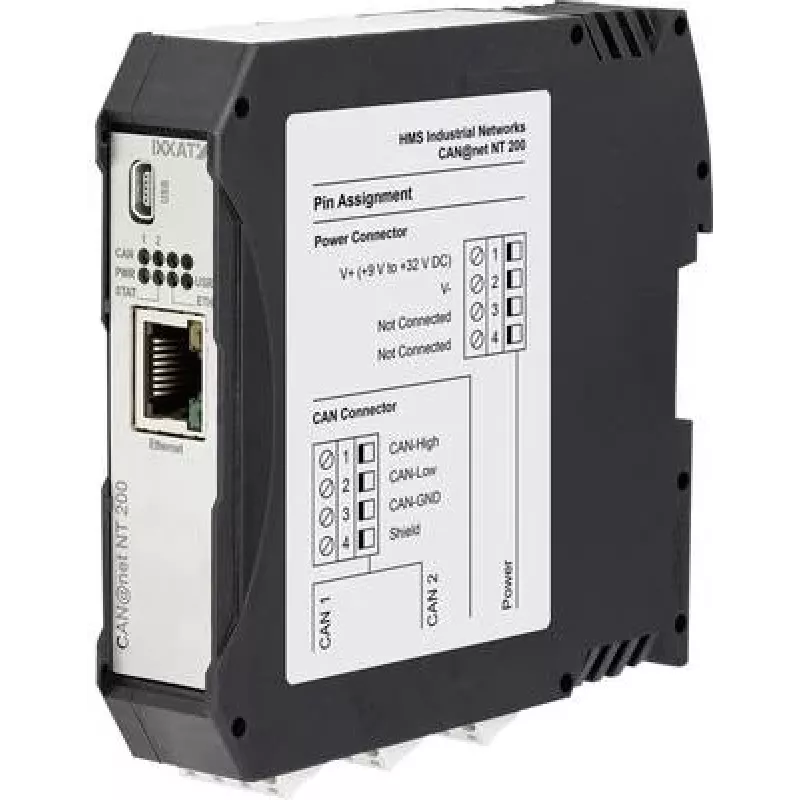

Ixxat CAN-Ethernet/IP-yhdyskäytävä, RJ45, 9-36 V DC, DIN-kisko 1.01.0332.20000

Industrial network gateway that connects a CAN network to Ethernet/IP, enabling seamless data exchange between field devices and control systems. Its galvanic isolation and wide power input range make it suitable for demanding automation environments.

Advantages

The gateway supports CAN baud rates from 10 kbit/s to 1 Mbit/s and features a 10/100 Mbit/s Ethernet interface with an RJ45 connector. It provides reliable data mapping, filtering, and buffering, ensuring efficient communication. The device is configured via web interface or USB, simplifying setup and maintenance.

Suitable for

• Industrial automation systems requiring CAN to Ethernet/IP integration
• Machinery with CAN-based sensors and actuators
• DIN rail installations in control cabinets

Key specifications

• CAN interface: 1x High-Speed CAN (ISO 11898-2), D-sub 9-pin or screw terminal
• Ethernet interface: 1x 10/100 Mbit/s (RJ45)
• Power supply: 9 - 36 V DC, max. 2.5 W
• Operating temperature: -25 °C to +70 °C
• Galvanic isolation between CAN, Ethernet, and power
• LED indicators: Power, CAN status, Ethernet link/activity
• Housing: Plastic (PA6.6-GF30), DIN rail mounting

Recommendations

Ideal for system integrators and OEMs needing a robust, easy-to-configure gateway for CAN-based devices in Ethernet/IP networks.
