Jäähdytyssiili/-kühler Alphacool HDX - M.2 SSD M01

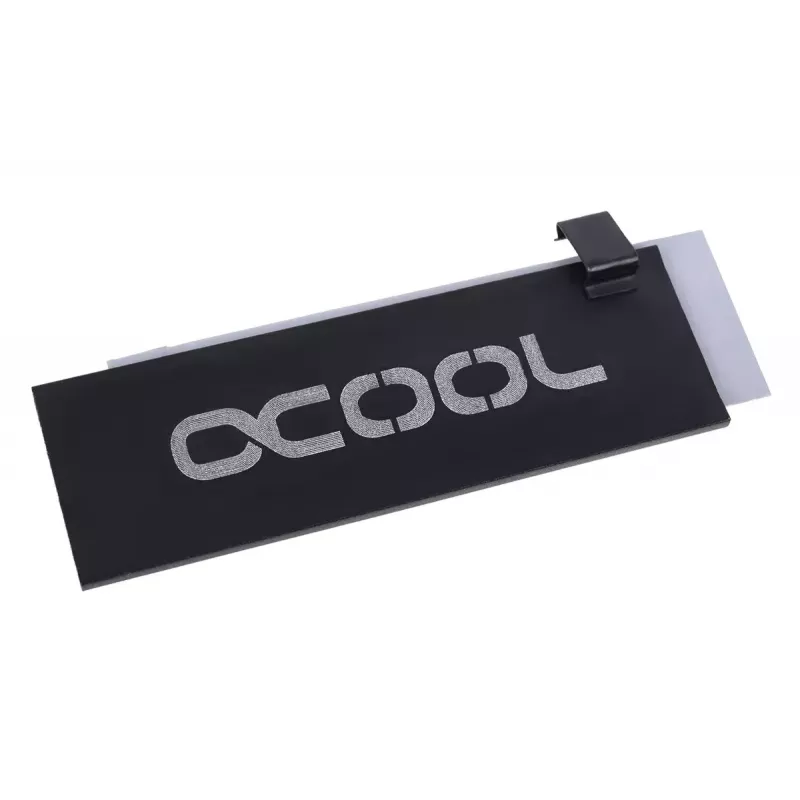

The Alphacool HDX - M.2 SSD M01 is a compact passive heatsink designed for M.2 NVMe SSDs. With dimensions of 68.3 mm × 22 mm × 2 mm and a black anodised finish, the cooler attaches directly to the SSD chips using the supplied thermal pads, clips and two aluminium cooling plates to improve heat dissipation and help maintain sustained performance.

Advantages

This mini cooler provides passive cooling without additional fans, reducing noise while improving thermal stability for M.2 SSDs. The low-profile cooling plates are designed to clear surrounding components during installation and promote efficient heat transfer from the SSD chips to the aluminium plates. The kit includes thermal pads and mounting clips for straightforward installation.

Suitable for

• Cooling M.2 NVMe SSDs in desktop PCs
• Compact builds where low-profile cooling is required
• Systems where passive, fanless cooling is preferred

Key specifications

• Product type: Heatsink / Radiator
• Compatible drive: M.2 NVMe SSD
• Dimensions: 68.3 mm × 22 mm × 2 mm
• Weight: 0.051 kg
• Colour: Black

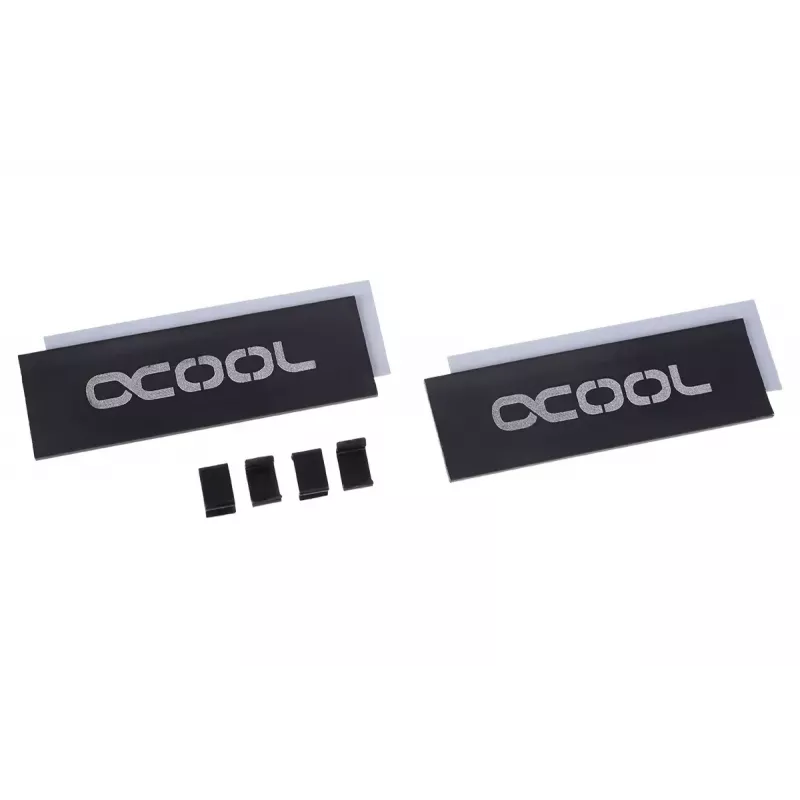

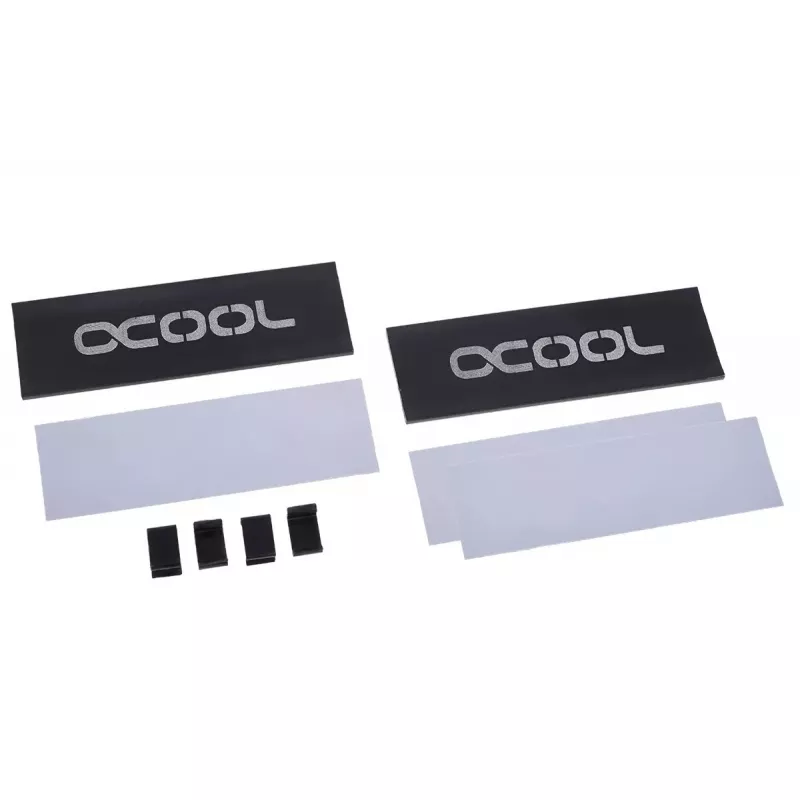

• Includes: thermal pads, clips, two cooling plates
• MPN: 11310, EAN: 4250197113106

How to use

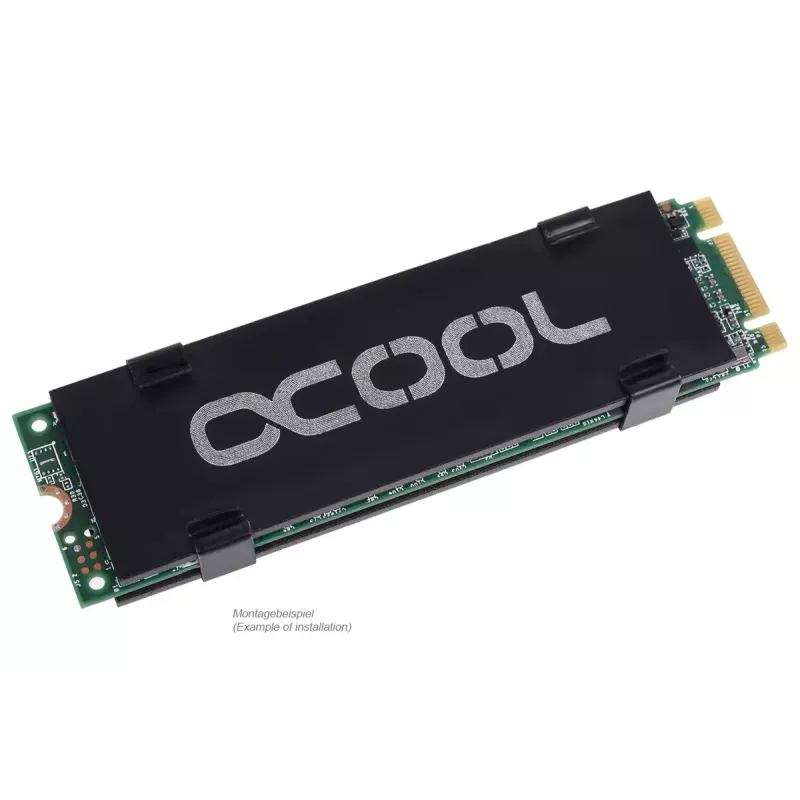

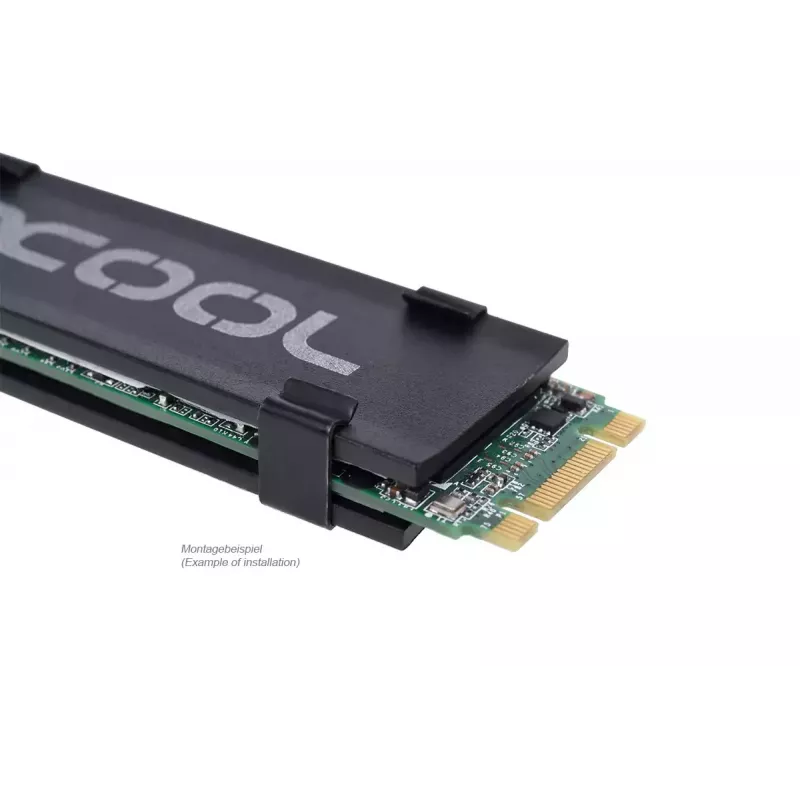

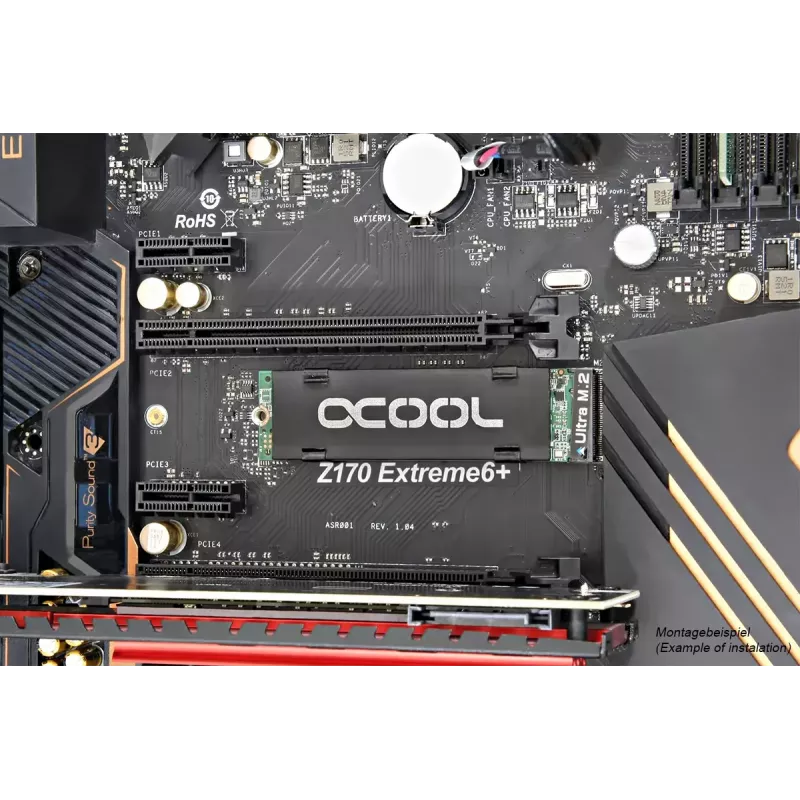

Place the supplied thermal pads directly onto the SSD chips, position the two aluminium cooling plates on top of the pads and secure them with the provided clips. Ensure the SSD and mounting area are clean and free of dust before installation. After fastening, check that the cooler does not contact neighbouring components and that the M.2 screw and connector remain accessible.

Recommendations

For best results, use this heatsink on M.2 NVMe SSDs that experience sustained high load; verify compatibility with your motherboard layout and confirm sufficient clearance inside your case before installation.
