Kaapeliliitin D-Sub 9-napainen EFB Elektronik 29010.1

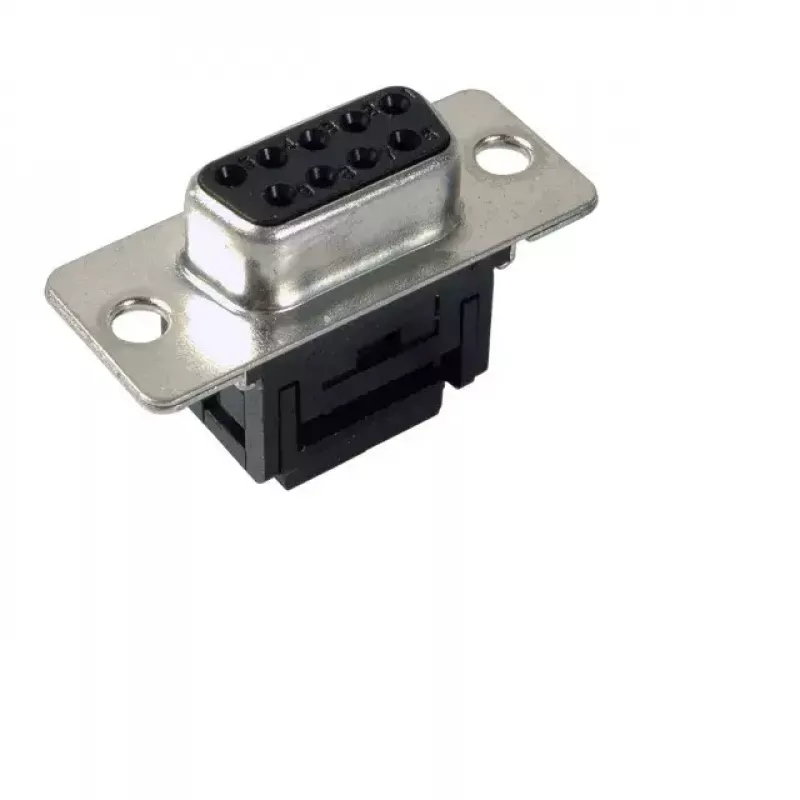

The EFB Elektronik 29010.1 is a D-sub 9-pin wire connector designed for reliable signal and data connections. Constructed from metal and plastic, the connector combines mechanical strength with electrical insulation and is finished in black and grey. It is supplied as a single unit and rated to withstand up to 50 mating cycles at quality level III.

Advantages

The Dsub 9-pin connector offers a compact footprint and robust mechanical housing that protects contacts while enabling repeated mating. Metal components provide durability and grounding capability, while plastic elements contribute to insulation and reduced weight. The individual sale format allows precise replacement or integration into custom assemblies.

Suitable for

• Industrial control interfaces
• Serial communication (RS-232/RS-422/RS-485) assemblies
• Repair or replacement of existing D-sub 9-pin connections
• Custom cabling and prototyping

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 29010.1
• Type: D-sub 9-pin wire connector
• Materials: metal and plastic
• Color: black / grey
• Quantity: 1 piece
• Quality level: III
• Mating cycles: 50
• EAN: 4049759038342

How to use

Wire the individual conductors to the connector contacts following the pinout for a D-sub 9-pin interface. Ensure secure mechanical mounting and proper strain relief to prevent cable movement from stressing contacts. Observe grounding practices where metal shell grounding is required. After assembly, verify continuity and correct signal mapping before placing the connector into regular service.

Recommendations

Use this connector in applications with moderate mating frequency given the 50-cycle rating; for frequent mating environments consider connectors with higher mating cycle ratings. Handle the metal shell and contacts carefully during assembly to avoid deformation that could impair contact reliability.
