Käsikäyttöinen viivakoodinlukija Datalogic DBT6400

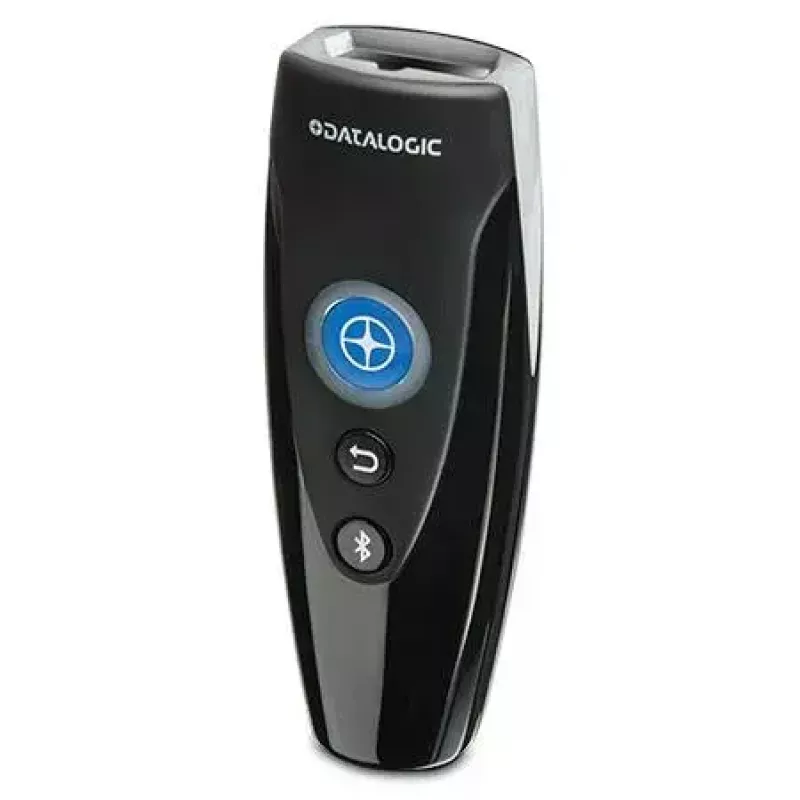

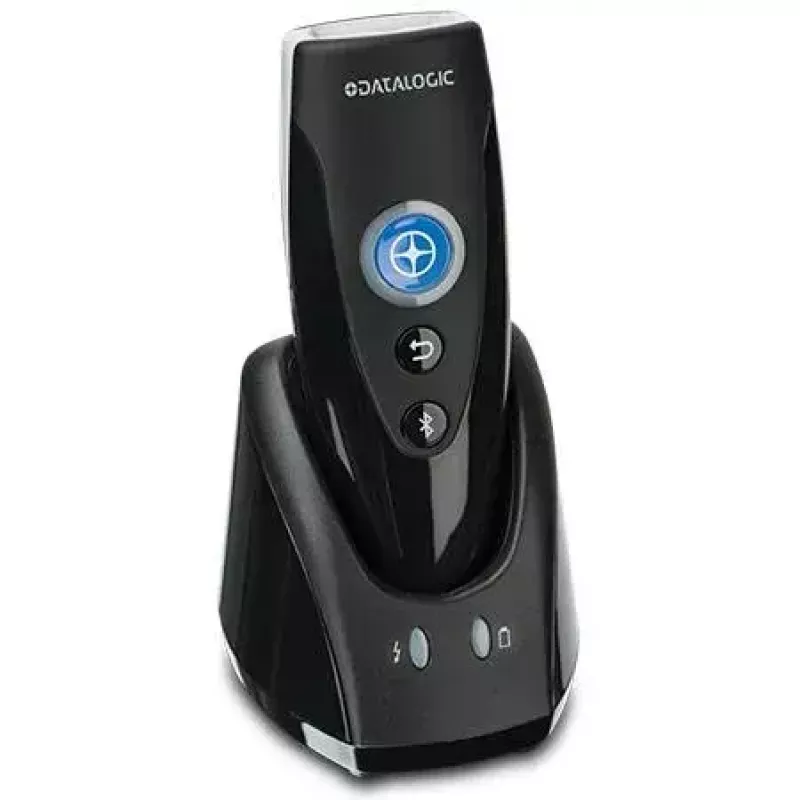

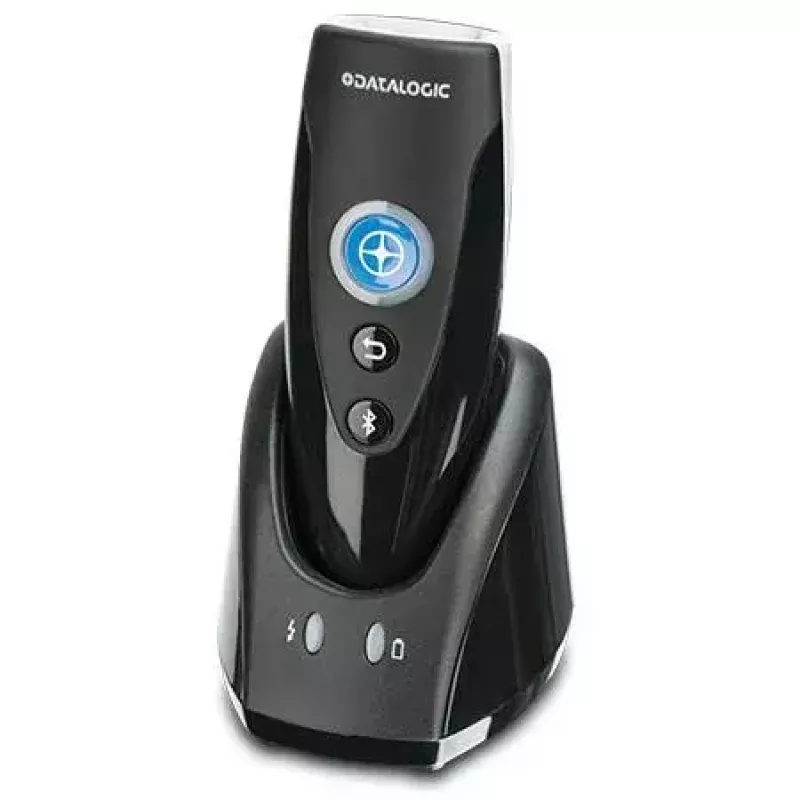

The Datalogic DBT6400 handheld bar code reader is a compact 2D imager designed for cordless use with Bluetooth-enabled devices. Lightweight and ergonomically shaped, it pairs with Android, Apple iOS and Windows Mobile devices as well as laptops equipped with Bluetooth. The scanner reads 1D and 2D barcodes — including QR Code, Data Matrix and Aztec — from printed labels, damaged or poorly printed codes and from mobile phone screens. It offers image capture, white illumination and a wide wireless range for flexible mobile scanning.

Advantages

The DBT6400 provides reliable reading performance on both printed and on-screen 1D/2D codes while maintaining a small, hand-friendly form factor and low weight (approximately 85 g). Bluetooth wireless connectivity enables quick pairing with multiple mobile platforms, and Batch Mode stores over 2,000 linear codes in memory for offline operation. Additional features include image capture capability and efficient aiming combined with white illumination for improved code detection.

Suitable for

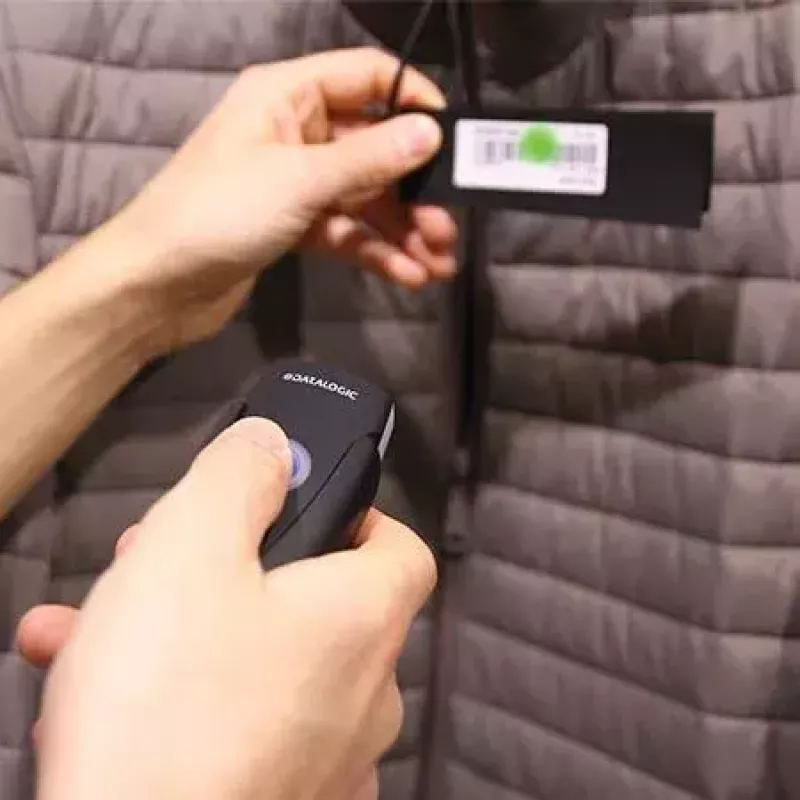

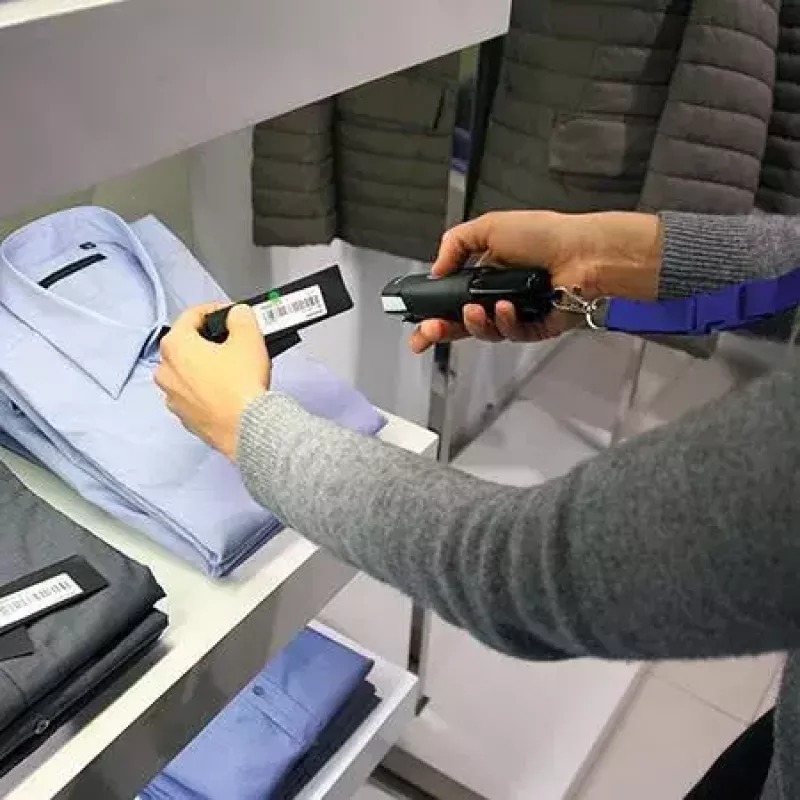

• Retail point-of-sale and price verification
• Mobile inventory and stocktaking
• Ticketing and mobile wallet scanning from phone screens
• Lightweight field service and deliveries

Key specifications

• Scanner type: 2D imager
• Supported codes: QR Code, Data Matrix, Aztec, MicroPDF417, Micro QR, MaxiCode and others
• Interfaces: Bluetooth wireless, USB
• Wireless range: up to 25 m
• Battery: 700 mAh Lithium‑Ion
• Weight: 0.085 kg
• Protection rating: IP50
• Colour: Black

How to use

Power on the DBT6400 and enable Bluetooth on the host device. Pair the scanner following the device-specific Bluetooth pairing procedure; once paired, open the target application on the mobile device or PC and point the imager at the barcode. Use the aiming system to align the code inside the field of view and press the trigger to scan. For offline scanning, enable Batch Mode to store linear codes in the unit memory and upload them later via USB or Bluetooth connection.

Recommendations

For best performance, keep the scanner lens and illumination area clean, avoid direct sunlight on the code during scanning, and use Batch Mode when working in areas without continuous wireless coverage. Replace or recharge the 700 mAh Li‑Ion battery before extended mobile shifts.
