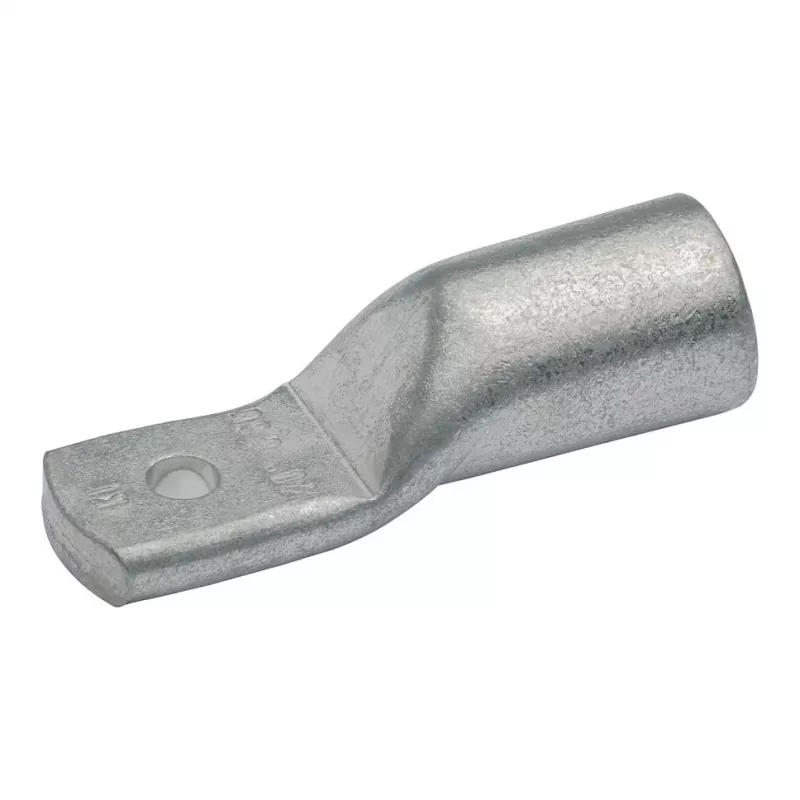

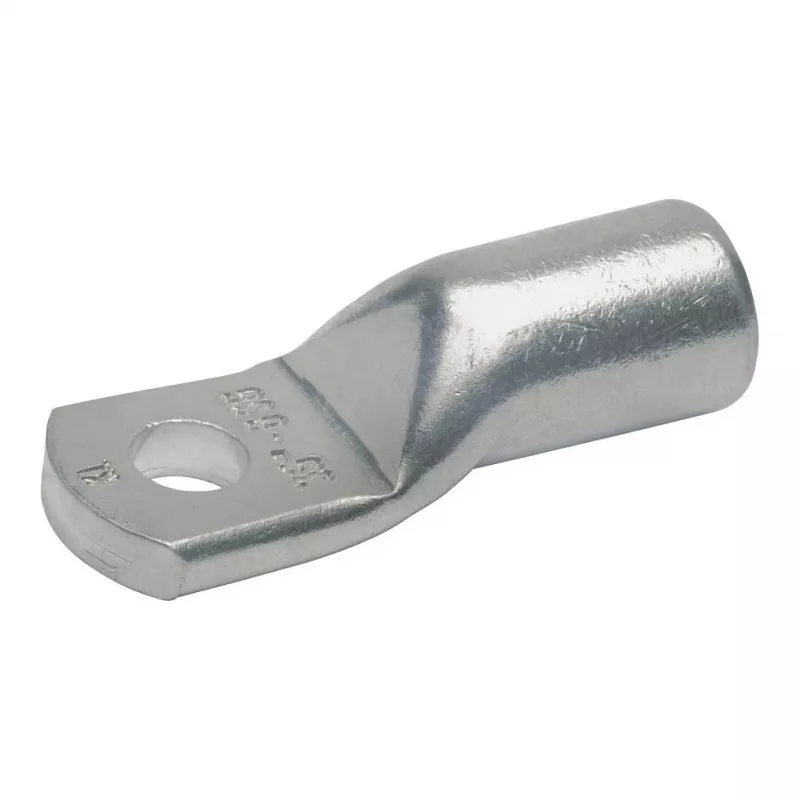

Klauke 8SG8 putkiliitin 95mm² M8-kytkinlaitosliitäntään ilman tarkastusreikää

The Klauke 8SG8 is a high-quality tubular cable lug designed for professional electrical installations. Made from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This lug is specifically engineered for switchgear connections with a cable cross-section of 95 mm² and a bolt hole diameter of 8.4 mm for M8 screws. It features a straight design with no inspection hole, suitable for fine-stranded, multi-stranded, and solid copper conductors.

Advantages

Reliable and durable connection for demanding applications. Tin plating provides long-lasting corrosion protection. Seamless drawn tube manufacturing ensures consistent quality. Suitable for hexagonal crimping, guaranteeing a secure and stable connection.

Suitable for

• Switchgear and control cabinet connections
• Power distribution systems
• Industrial electrical installations
• Connecting copper conductors up to 95 mm²

Key specifications

• Cable cross-section: 95 mm²
• Bolt hole diameter: 8.4 mm (for M8 screws)
• Material: Electrolytic copper (E-Cu), tin-plated
• Lug type: Tubular cable lug
• Application: Switchgear connection
• Inspection hole: No
• Connection angle: Straight
• Number of bolt holes: 1
• Operating temperature: -40°C to +120°C
• Max. voltage rating: 1000 V
• RoHS compliant: Yes

Recommendations

Use with appropriate hexagonal crimping tool for optimal results. Ensure conductor is properly stripped and inserted before crimping. For best performance, follow manufacturer's installation guidelines.
