KOPOS MDZ-300_KB asennuslevy lämmöneristejärjestelmiin 300x300 mm harmaa

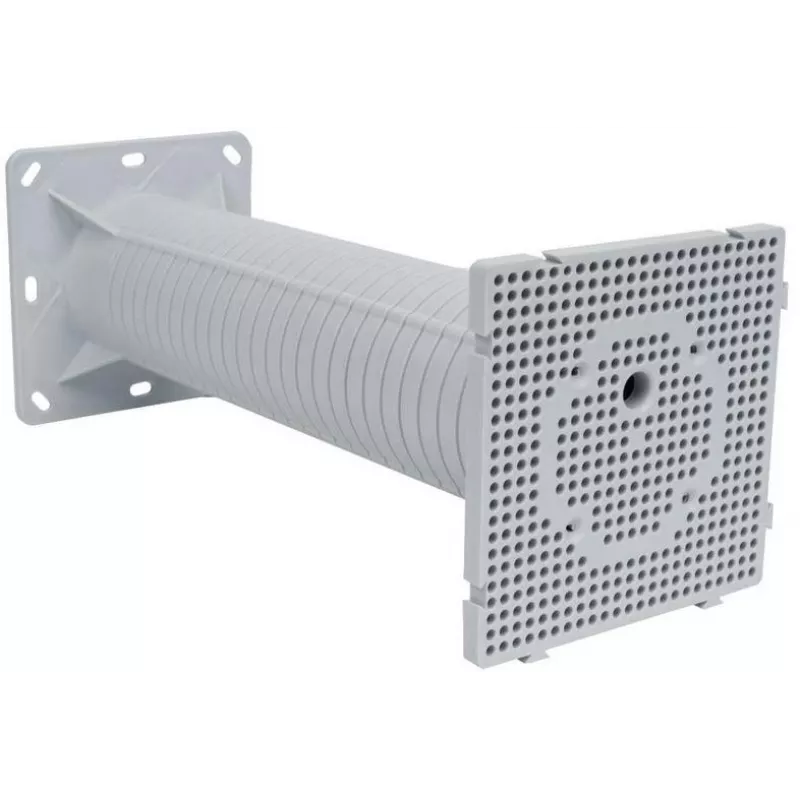

The KOPOS MDZ-300_KB mounting plate is a robust and reliable solution for installing electrical devices on insulated facades (ETICS). Designed to work seamlessly with the KOPOS MDZ-300 installation box, this plate provides a secure base for flush-mounted installations in thermal insulation systems. Made from self-extinguishing polypropylene, it ensures durability and safety in various weather conditions.

Advantages

This mounting plate offers excellent load capacity of up to 4 kg when used with the MDZ-300 box, making it suitable for a wide range of electrical devices. Its UV-resistant material and wide temperature tolerance (-25°C to +60°C) guarantee long-lasting performance. The plate features pre-drilled holes for cable glands, simplifying cable entry and installation.

Suitable for

• Installing sockets, switches, and other electrical devices on insulated facades
• Use with KOPOS MDZ-300 installation box for insulation thicknesses from 50 to 300 mm
• New construction and renovation projects requiring ETICS-compatible mounting

Key specifications

• Product Type: Mounting Plate
• Dimensions: 300 x 300 mm
• Thickness: 10 mm
• Material: Self-extinguishing Polypropylene (PP)
• Colour: Grey
• Load Capacity: Up to 4 kg (with MDZ-300 box)
• Temperature Resistance: -25°C to +60°C
• Protection Class: IP30 (with MDZ-300 box)
• Certifications: CE

Recommendations

For optimal performance, always use the KOPOS MDZ-300_KB mounting plate with the corresponding MDZ-300 installation box. Ensure proper installation according to the manufacturer's guidelines to achieve the specified load capacity and protection class.
