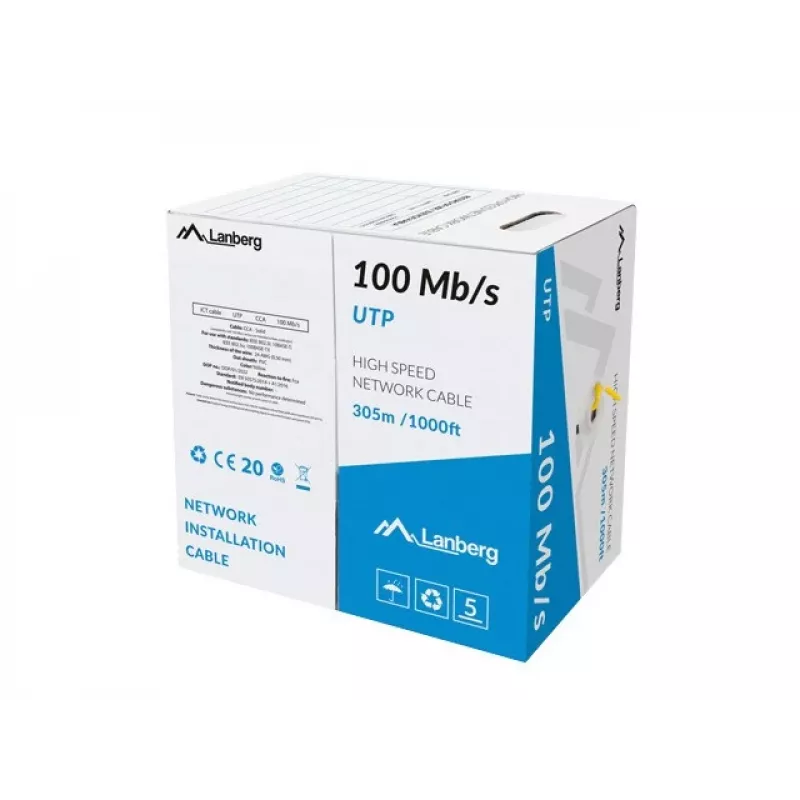

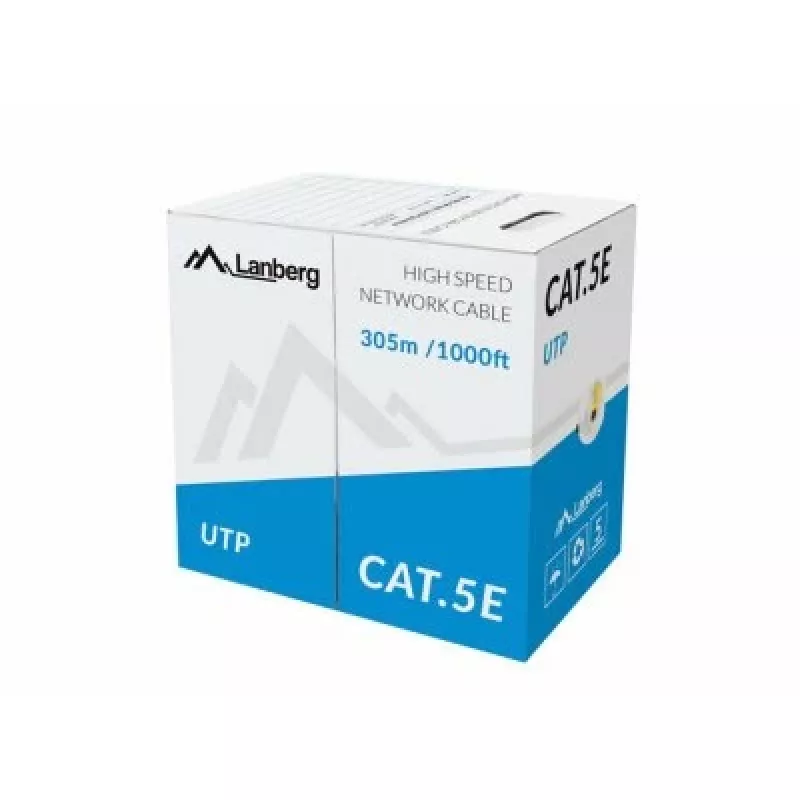

LANBERG verkkokaapeli LCU5-10CC-0305-Y U/UTP Cat5e 305 m, 24 AWG CCA, keltainen

The Lanberg LCU5-10CC-0305-Y is a 305 m U/UTP LAN cable with a yellow (RAL1028) PVC outer sheath and copper-clad aluminum (CCA) conductors. Designed for short-distance networking runs, the cable supports operation up to 100 MHz and is supplied on a cardboard box with a printed meter counter on each meter of the cable.

Advantages

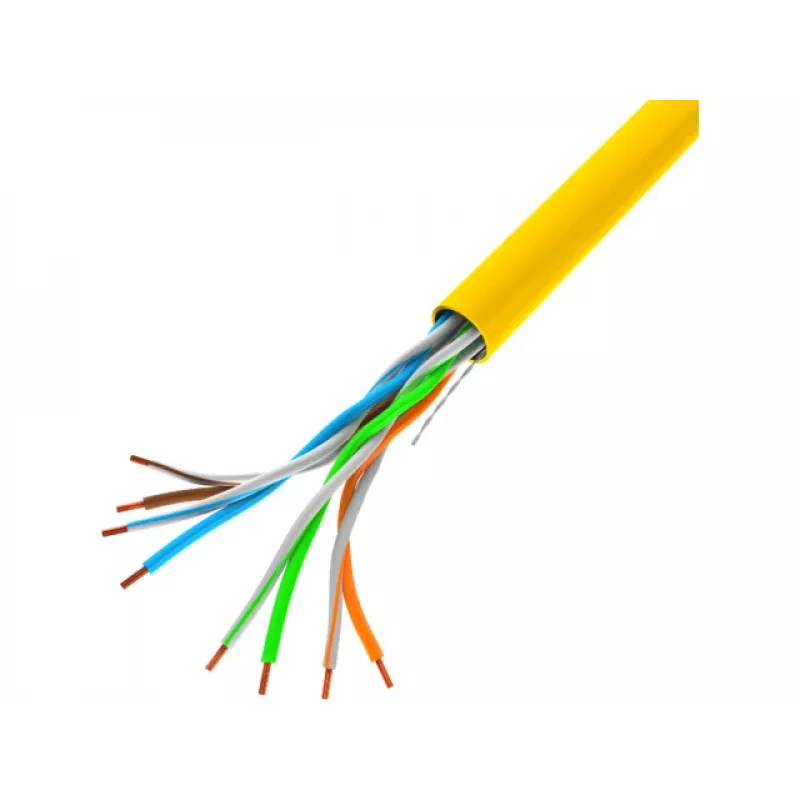

This unshielded U/UTP cable uses AWG 24 single-wire conductors (4 pairs) with 0.93 mm HDPE insulation and 5.0 mm external PVC jacket, offering a clear color for easy identification, per-meter length marking for precise installation, and a compact 305 m spool suitable for structured cabling in homes and small offices.

Suitable for

• Short-distance Ethernet installations (up to 100–120 m)
• Home and small-office structured cabling
• Patch panels and horizontal cabling runs

Key specifications

• Cable type: U/UTP (unshielded)
• Length: 305 m
• Conductor: copper-clad aluminum (CCA), AWG 24, single-wire
• Conductor insulation (HDPE): 0.93 mm
• Outer insulation (PVC): 5.0 mm, color Yellow (RAL1028)
• Printed length counter: every meter
• Frequency range: up to 100 MHz
• Characteristic impedance: < 100 Ω (±15)
• Conductor resistance (max, 305 m): 60–90 Ω
• Insulation resistance (min): 5000 MΩ·km
• Pair-to-ground capacitance: < 330 pF / 100 m
• Operating temperature: -20 to 70 °C
• Transport/storage temperature: 0 to 60 °C
• Packaging: cardboard box (36 x 23 x 36 cm)

How to use

Route the cable following local installation standards and maintain recommended bend radius for Ethernet cables. Use appropriate termination modules or RJ45 connectors rated for AWG 24 and CCA conductors; test continuity and signal performance after termination. The printed meter markings on the cable help measure and cut required lengths accurately before termination.

Recommendations

Intended for short-distance installations; Fluke compliance has not been confirmed, so perform suitable testing after installation if certification-level verification is required.
