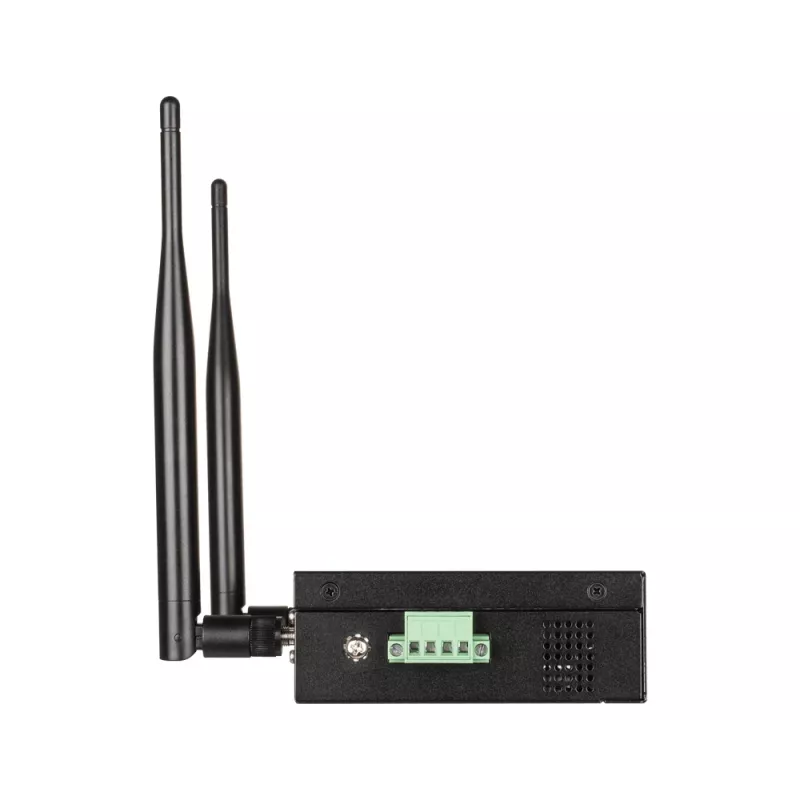

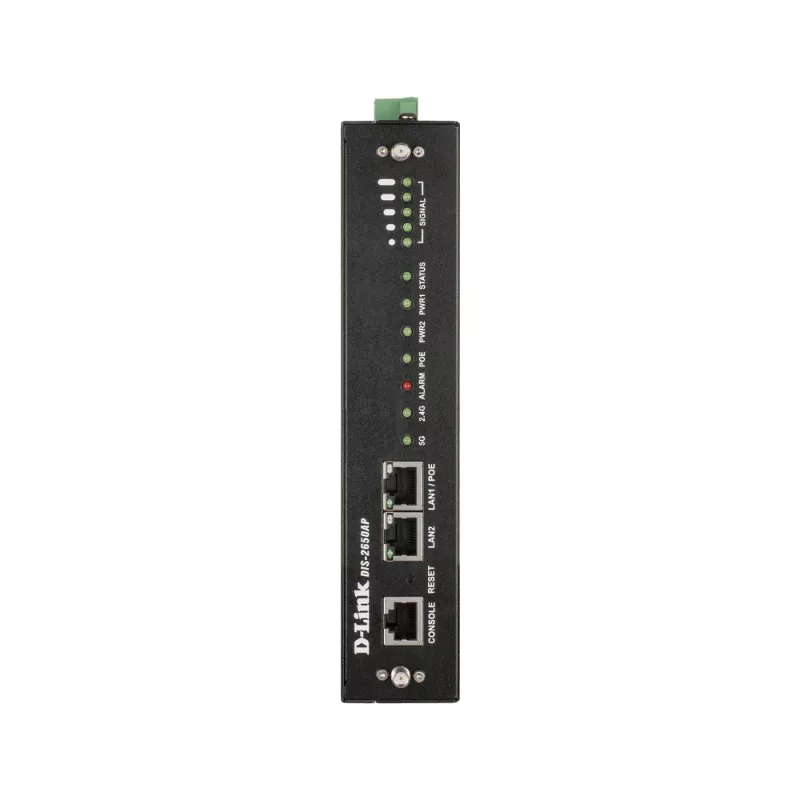

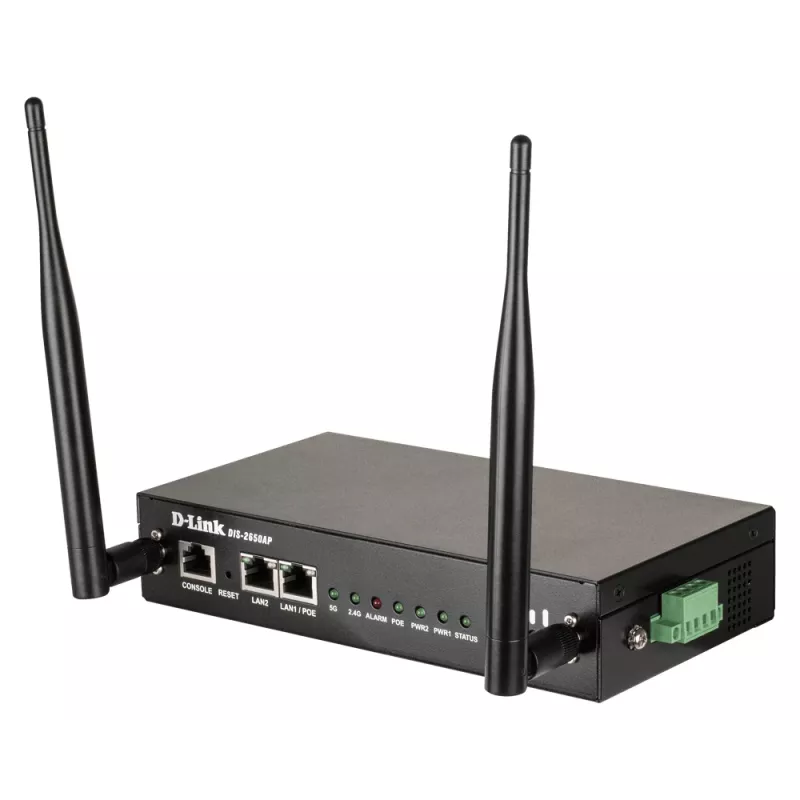

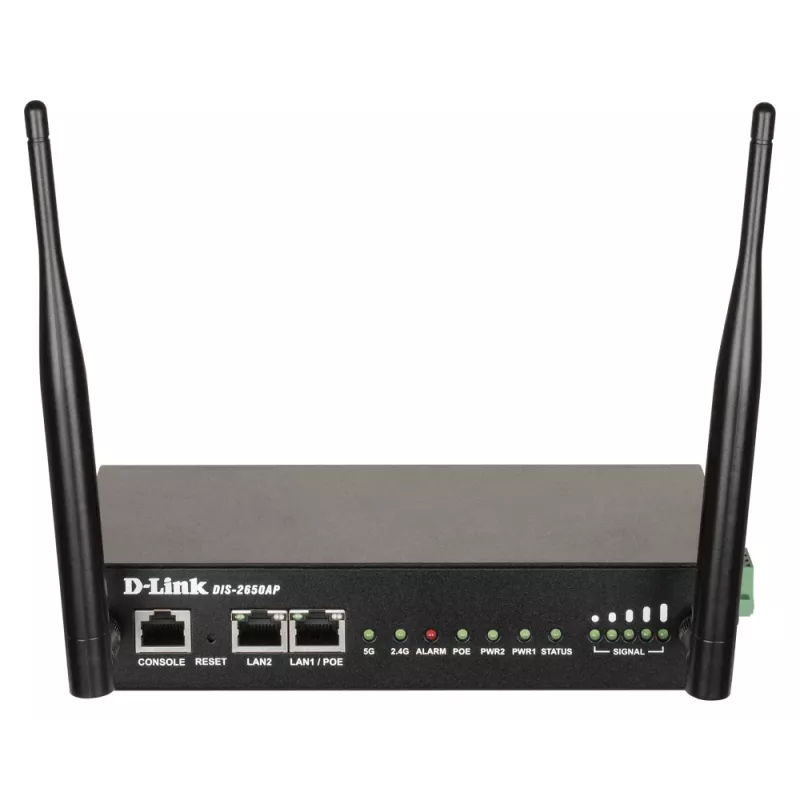

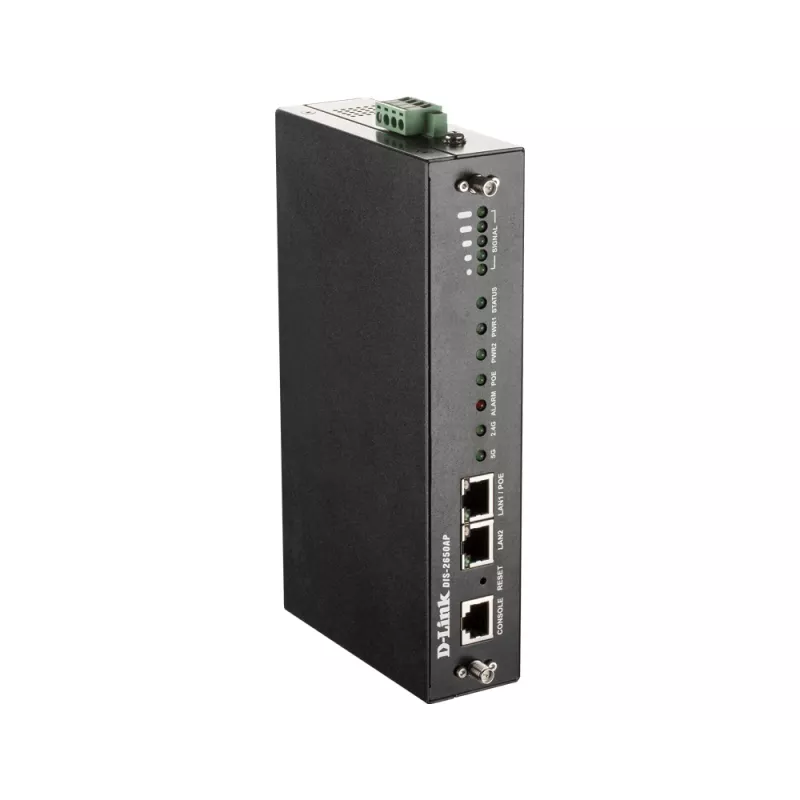

Langaton tukiasema D-Link DIS-2650AP 2,4 GHz 5 GHz Wi-Fi 802.11ac

The D-Link DIS-2650AP is a rugged industrial wireless access point offering dual-band 2.4 GHz and 5 GHz connectivity with combined data rates up to 1200 Mbps. Designed for industrial and smart-city environments, it delivers stable wireless coverage with external high‑power antennas, dual LAN ports with PoE support, and robust metal housing with IP30 protection and wide operating temperature range.

Advantages

The DIS-2650AP uses 802.11ac Wave 2 and MU‑MIMO to serve multiple devices simultaneously and achieve higher throughput than legacy 802.11n equipment. Its dual high‑power external antennas and two LAN ports (one supporting PoE) provide reliable wireless performance and a stable wired backhaul. The terminal block enables power redundancy, and the Wi‑Fi signal indicator helps with installation and coverage optimisation. Metal casing, IP30 rating and -20 to 65 °C operating temperature make it suitable for demanding environments.

Suitable for

• Smart factories and industrial automation
• Intelligent transport systems and smart parking
• Smart city deployments and city‑wide surveillance
• SMB network segments requiring centralized management

Key specifications

• Wireless standard: IEEE 802.11ac Wave 2 (dual‑band 2.4 GHz / 5 GHz)
• Maximum aggregate throughput: up to 1200 Mbps
• Antennas: 2 external dual‑band high‑power antennas
• Ethernet ports: 2 x RJ‑45 (one with PoE support)
• Power options: PoE and terminal block for redundancy
• Protection and mounting: metal casing, IP30, DIN‑rail or wall mountable
• Operating temperature: -20 to 65 °C
• Weight: 0.785 kg
• Colour: Black

How to use

Mount the DIS‑2650AP on a DIN rail or wall using the included brackets. Connect one of the RJ‑45 LAN ports to your network; use a PoE switch or injector to supply power over Ethernet or attach the power terminal block for redundant input. Position the external antennas for optimal coverage and use the built‑in Wi‑Fi signal indicator during installation to verify signal strength. Configure SSIDs, security (WPA/WPA2) and other wireless settings via the D‑Link Nuclias Connect management software or the device’s web interface.

Recommendations

The DIS‑2650AP is intended for industrial and commercial environments; install it in dry, ventilated locations and ensure connectors and terminal block are secured to maintain reliability. For larger deployments, use Nuclias Connect to centrally manage multiple access points and apply consistent security and firmware policies.
