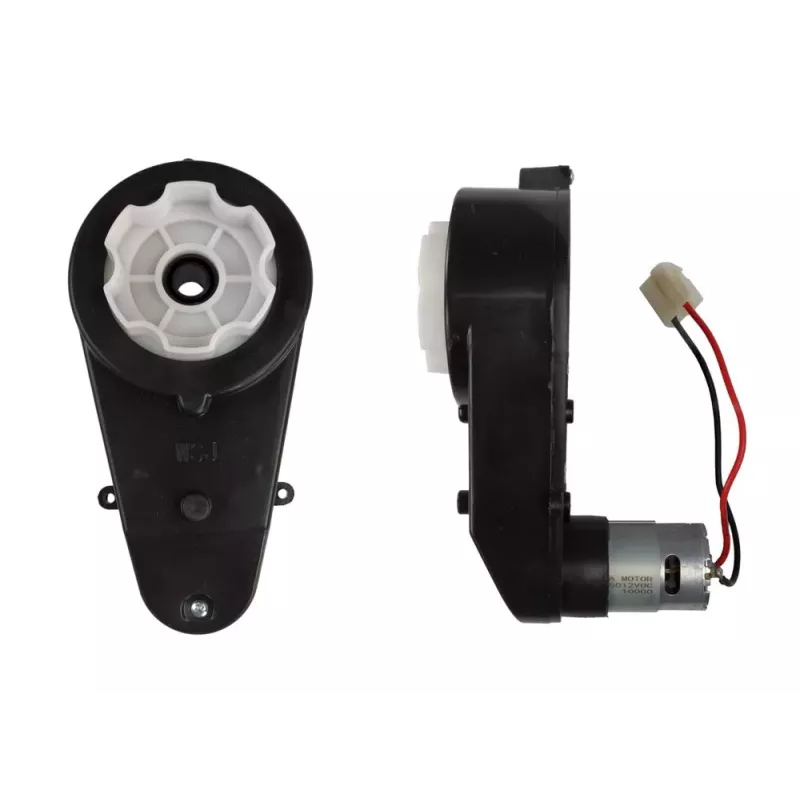

LEAN CARS moottori + vaihteisto 12V 10000 kierr./min

This high-performance brushed DC motor with integrated metal spur gearbox delivers reliable power for your 12V automotive projects. Designed for hobbyists and educators, it combines a no-load speed of 10000 RPM with a 1:100 gear reduction to provide a robust output of 100 RPM and a rated torque of 3.5 kg.cm. The reversible rotation and D-cut shaft make it easy to integrate into various mechanisms.

Advantages

Durable metal construction ensures long life, while the low noise level (<65 dB) keeps operation quiet. The included 2-wire connection simplifies wiring, and the M3 threaded mounting holes allow secure attachment.

Suitable for

• DIY robotics and automation projects
• Educational STEM kits
• Model vehicles and machinery

Key specifications

• Operating Voltage: 12V DC
• Motor No-Load Speed: 10000 RPM
• Gear Ratio: 1:100
• Output No-Load Speed: 100 RPM
• Output Rated Torque: 3.5 kg.cm (0.34 N.m)
• Output Stall Torque: 15 kg.cm (1.47 N.m)
• No-Load Current: 60 mA
• Rated Current: 0.4 A
• Stall Current: 1.5 A
• Shaft Diameter: 6 mm (D-cut)
• Shaft Length: 21 mm
• Motor Type: Brushed DC
• Gearbox Type: Metal Spur Gearbox
• Direction of Rotation: Reversible
• Mounting: M3 threaded holes on front face
• Operating Temperature: -10°C to +60°C
• Noise Level: < 65 dB
• Body Material: Metal (Motor and Gearbox Housing)
• Wiring: 2-wire (Red/Black)

Recommendations

For optimal performance, use a regulated 12V power supply capable of delivering at least 1.5A. Ensure proper heat dissipation if operating near stall conditions.
