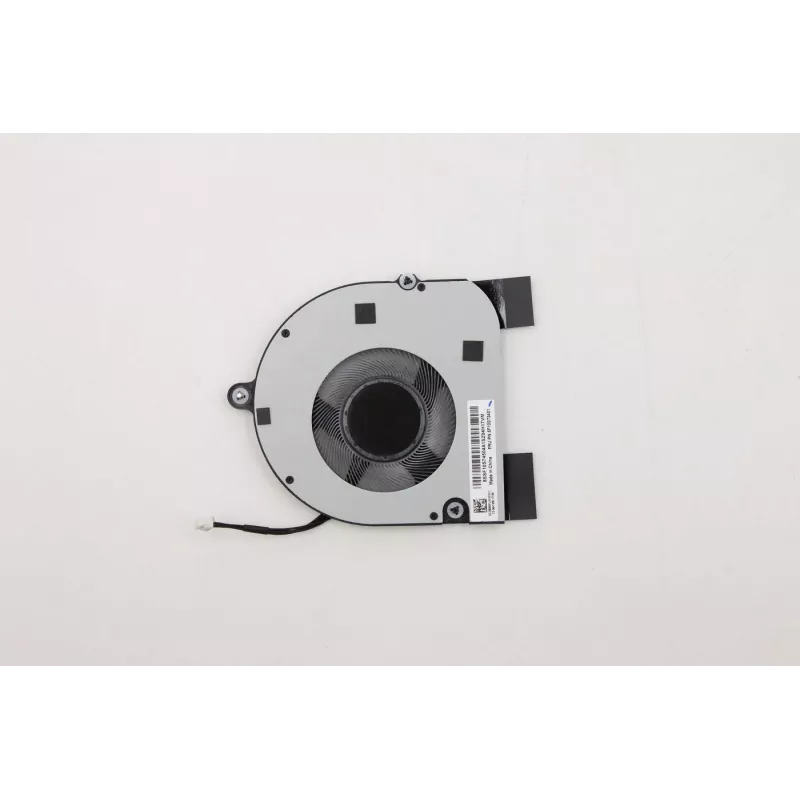

LENOVO Odin Intel FRU tuuletin DC5V

The LENOVO Odin Intel FRU Fan DC5V is a genuine Field Replaceable Unit (FRU) cooling fan designed for Intel NUC mini PCs. This blower-style fan ensures efficient heat dissipation in compact systems, maintaining optimal performance and reliability.

Advantages

Engineered as a direct replacement for original fans, this FRU fan guarantees perfect fit and compatibility. Its fluid dynamic bearing (FDB) technology delivers quiet operation and extended lifespan up to 50,000 hours. PWM speed control allows the system to dynamically adjust fan speed for balanced cooling and noise levels.

Suitable for

• Intel NUC models: NUC5i3RYH, NUC5i5RYH, NUC5i7RYH, NUC5i3RYK, NUC5i5RYK, NUC5i7RYK
• Internal CPU cooling in mini PCs and compact systems
• Replacement or upgrade of existing cooling fans

Key specifications

• Product Type: CPU Cooling Fan
• Fan Type: Blower (Centrifugal)
• Compatibility: Intel NUC (NUC5i3RYH, NUC5i5RYH, NUC5i7RYH, NUC5i3RYK, NUC5i5RYK, NUC5i7RYK)
• Rated Voltage: DC 5V
• Rated Current: 0.36 A
• Power Consumption: 1.8 W
• Connector Type: 4-Pin PWM
• Bearing Type: Fluid Dynamic Bearing (FDB)
• Max Fan Speed: Up to 6500 RPM
• Max Airflow: Approx. 4 CFM
• Max Noise Level: Up to 38 dBA
• Life Expectancy (MTTF): 50,000 hours
• Material: Plastic
• Color: Black
• Mounting: Screw-in (Integrated)
• Features: PWM Speed Control, Field Replaceable Unit (FRU)
• Application: Internal CPU Cooling for Mini PCs
• Operating Temperature: -10°C to 70°C

Recommendations

For optimal thermal performance, ensure proper installation and adequate airflow within the chassis. This FRU fan is a reliable replacement part to restore cooling efficiency in compatible Intel NUC systems.
