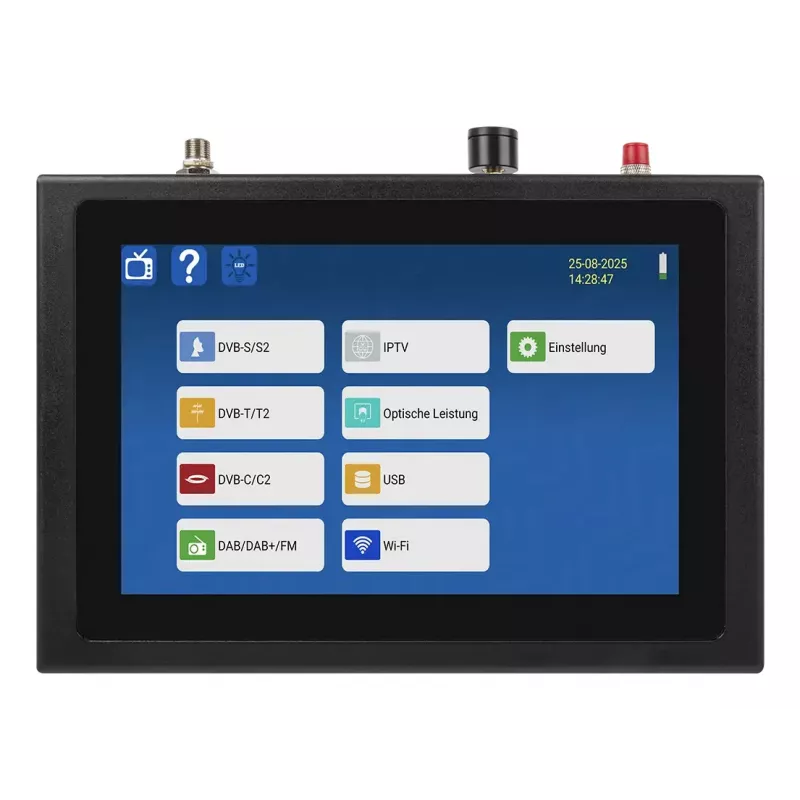

Megasat HD 7 Combo V2 satelliittimittari DVB-S/S2/T/T2/C DAB/DAB+ USB DiSEqC 1 (2600024)

Equipped with a 7-inch TFT LCD color display and support for DVB-S/S2, DVB-T/T2, DVB-C, DAB, and DAB+, the Megasat HD 7 Combo V2 is a versatile signal meter for satellite, terrestrial, and cable installations. It measures signal strength, quality, BER, MER, and C/N, and includes a spectrum analyzer and constellation diagram for precise alignment. The device supports DiSEqC 1.0/1.1/1.2 and USALS, as well as Unicable EN 50494/EN 50607. Video decoding covers MPEG-2, MPEG-4, H.264, and H.265 (HEVC), with audio decoding for MPEG-1, MPEG-2, and AAC. Connectivity includes F-connector for satellite, RF for antenna/cable, HDMI output, AV output, and USB 2.0. Powered by an integrated 7.4V 6300 mAh Li-Ion battery, it offers up to 4 hours of operation. Additional features include blind scan, auto satellite identification, short-circuit protection, integrated speaker, and LED flashlight.

Overview

The Megasat HD 7 Combo V2 is a professional-grade signal meter designed for installers and technicians. Its large 7-inch display provides clear readings, and the built-in spectrum analyzer and constellation diagram allow for detailed signal analysis. The device supports multiple broadcasting standards, making it suitable for a wide range of installation scenarios.

What stands out

• 7-inch TFT LCD color display for easy viewing
• Supports DVB-S/S2, DVB-T/T2, DVB-C, DAB, DAB+
• Spectrum analyzer and constellation diagram
• DiSEqC 1.0/1.1/1.2 and USALS support
• Unicable EN 50494/EN 50607 compatibility
• Blind scan and auto satellite identification
• Integrated 7.4V 6300 mAh Li-Ion battery with up to 4 hours runtime
• HDMI and AV outputs for connecting to external displays
• USB 2.0 port for data transfer and updates
• Short-circuit protection, integrated speaker, and LED flashlight

Technical details

• Display: 7-inch TFT LCD color display
• Satellite standards: DVB-S, DVB-S2
• Terrestrial standards: DVB-T, DVB-T2 (H.264/H.265 HEVC)
• Cable standard: DVB-C
• Radio standards: DAB, DAB+
• Measurement parameters: Signal strength, signal quality, BER, MER, C/N
• Analysis tools: Spectrum analyzer, constellation diagram
• DiSEqC: 1.0, 1.1, 1.2, USALS
• Unicable: Yes (EN 50494, EN 50607)
• Video decoding: MPEG-2, MPEG-4, H.264, H.265 (HEVC)
• Audio decoding: MPEG-1, MPEG-2, AAC
• Inputs: 1x F-connector (SAT), 1x RF-connector (ANT/CABLE)
• Outputs: 1x HDMI, 1x AV Out (3.5mm jack)
• Data: 1x USB 2.0
• Battery: Integrated Li-Ion, 7.4V / 6300 mAh, up to 4 hours
• Special features: Blind scan, auto satellite identification, short-circuit protection, integrated speaker, LED flashlight
• Power supply: 12V DC / 2A

Our verdict

The Megasat HD 7 Combo V2 is a comprehensive tool for any professional installer. Its broad standard support, advanced analysis features, and portable design make it a reliable choice for field work.
