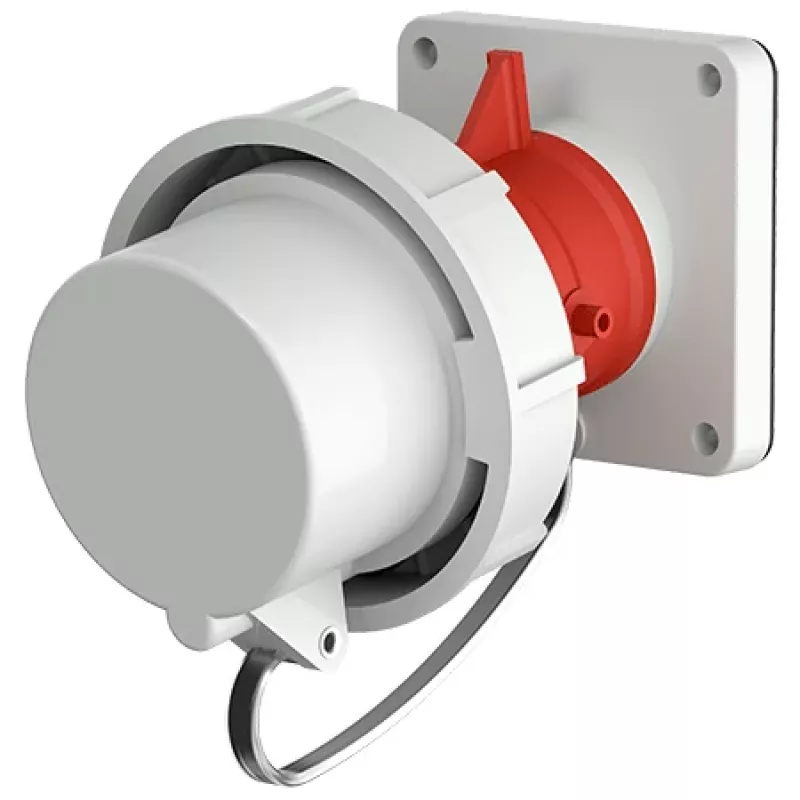

MENNEKES asennuspistoke 32A 5p 6h 400V IP67 punainen 1254

The MENNEKES 1254 panel mounted plug stands out with its 5-pole configuration and 6h earth contact position, ensuring correct phase alignment in three-phase systems. Its IP67 rating provides complete protection against dust and temporary immersion, making it suitable for demanding industrial environments.

Highlights

• 32 A current rating for high-power applications
• 380-415 V AC voltage rating for three-phase systems
• 5-pole (3P+N+PE) with 6h earth position
• IP67 protection against dust and water
• Panel mount design with screw terminals

In daily use

This plug is built for permanent installation in equipment or distribution panels. The screw terminals provide a secure connection for conductors, and the robust housing withstands mechanical impact (IK08). The red colour is standard for three-phase connectors, aiding quick identification.

Full specifications

• Connector Type: Panel Mounted Plug (Appliance Inlet)
• Current Rating: 32 A
• Voltage Rating: 380-415 V AC
• Number of Poles: 5-pole (3P+N+PE)
• Earth Contact Position: 6h
• Ingress Protection: IP67
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount (Flange Mounting)
• Connection Technology: Screw Terminals
• Housing Material: High-performance plastic
• Contact Material: Nickel-plated brass
• Colour: Red
• Standards Compliance: IEC 60309-1, IEC 60309-2
• Operating Temperature Range: -25°C to +40°C
• Phase Configuration: 3-Phase + Neutral + Earth
• Mechanical Impact Protection: IK08

Final note

Designed for reliable power connections in industrial settings, the MENNEKES 1254 ensures safety and performance.
