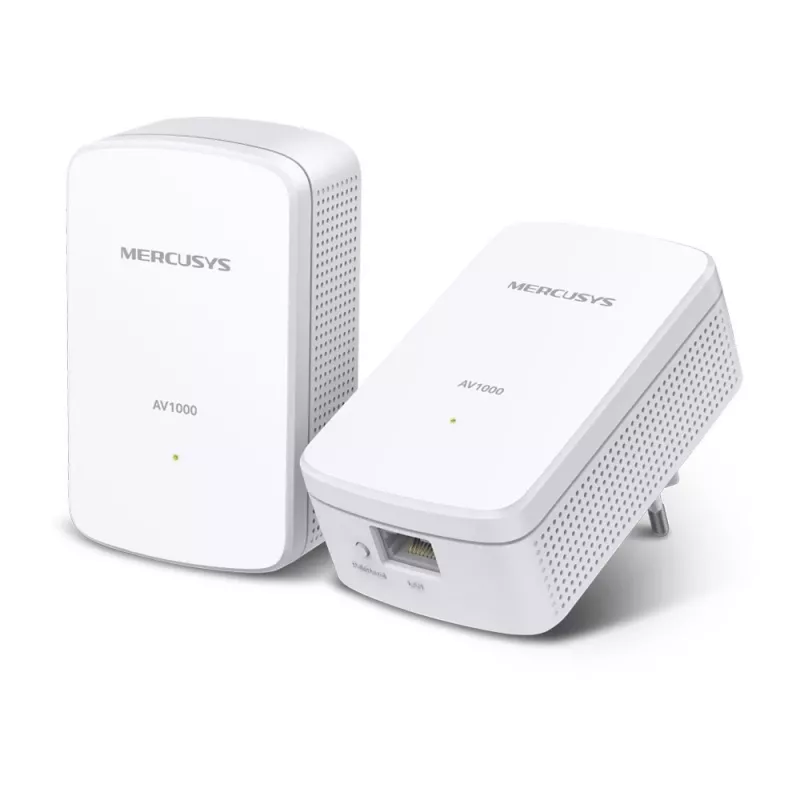

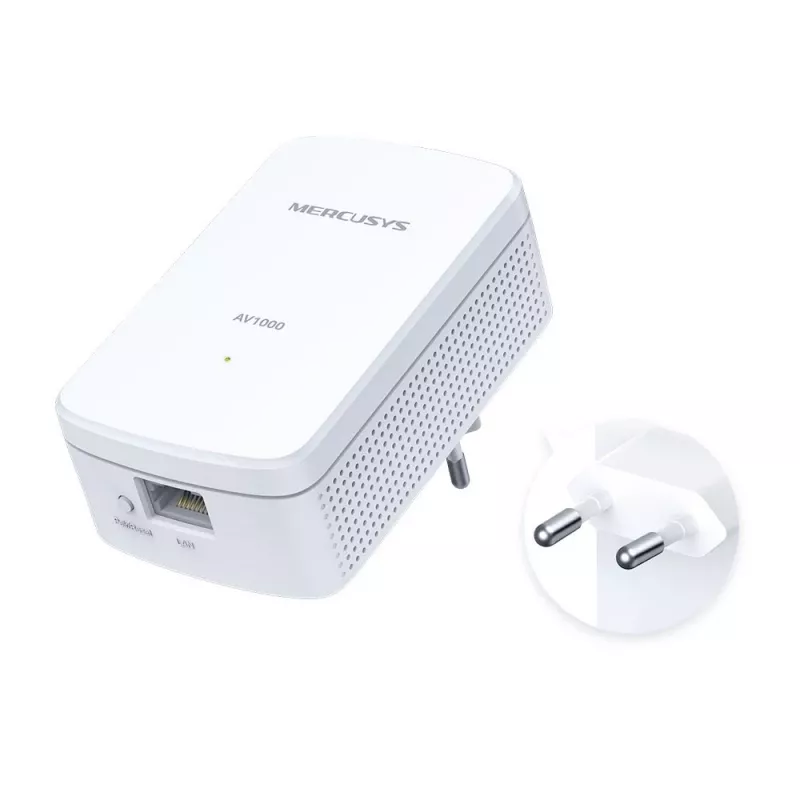

MERCUSYS AV1000 MP500 KIT

Unlike basic powerline adapters that occupy your wall outlet, the MERCUSYS AV1000 MP500 KIT features an integrated pass-through socket on each unit, so you keep the outlet free for other devices while extending your network. This starter kit includes two adapters that leverage your home's existing electrical wiring to deliver up to 1000 Mbps, making it ideal for connecting smart TVs, game consoles, or PCs in rooms where Wi-Fi is weak or unreliable.

Highlights

• HomePlug AV2 technology for stable, high-speed data transfer over power lines
• Gigabit Ethernet port on each adapter for wired devices
• Integrated pass-through socket keeps your power outlet free for other devices
• 128-bit AES encryption ensures secure network connections
• Plug-and-play setup with no driver installation required
• Supports IGMP for smooth IPTV streaming

In daily use

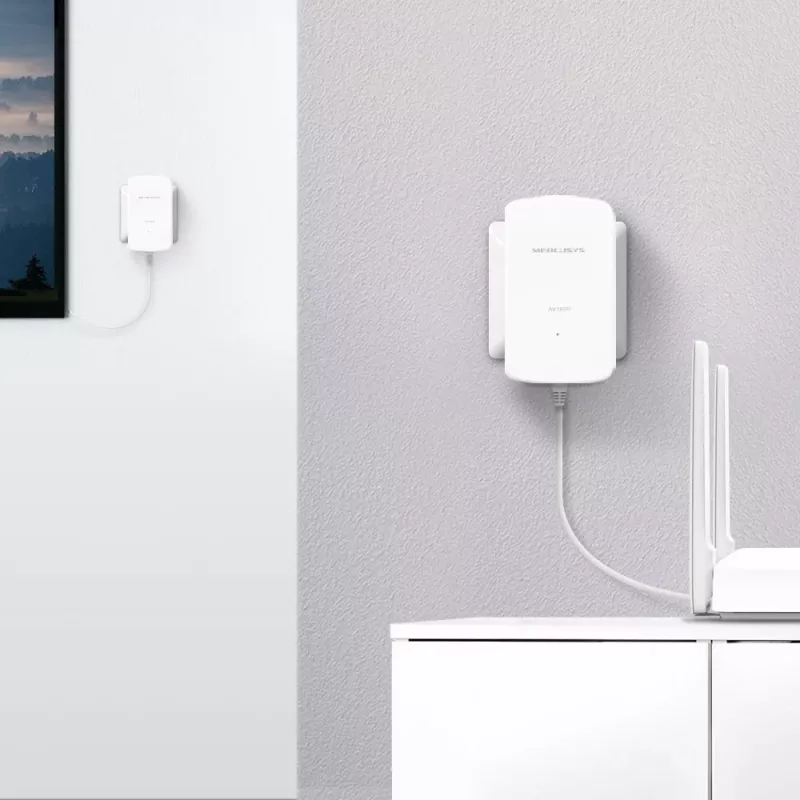

Simply plug one adapter into a wall socket near your router and connect it via Ethernet cable. Plug the second adapter in any room where you need a wired connection, and you're online. The pair button lets you create a secure encrypted network in seconds. The compact design blends into any environment, and the pass-through socket means you can still power a lamp or charger from the same outlet. Ideal for 4K streaming, online gaming, and large file transfers.

Full specifications

• Standards: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Powerline speed: up to 1000 Mbps
• Ethernet ports: 1× Gigabit per adapter
• Integrated power socket: Yes (AC pass-through)
• Number of adapters: 2 (Starter Kit)
• Range: Up to 300 meters (984 feet) over electrical circuit
• Security: 128-bit AES Encryption
• Power Consumption (Maximum): 2.7W
• Power Consumption (Standby): 0.5W
• LED Indicators: Power, Powerline, Ethernet
• Buttons: Pair/Reset Button
• Compatibility: Windows, Mac, Linux
• IGMP Support: Yes (for IPTV optimization)
• Modulation Technology: OFDM

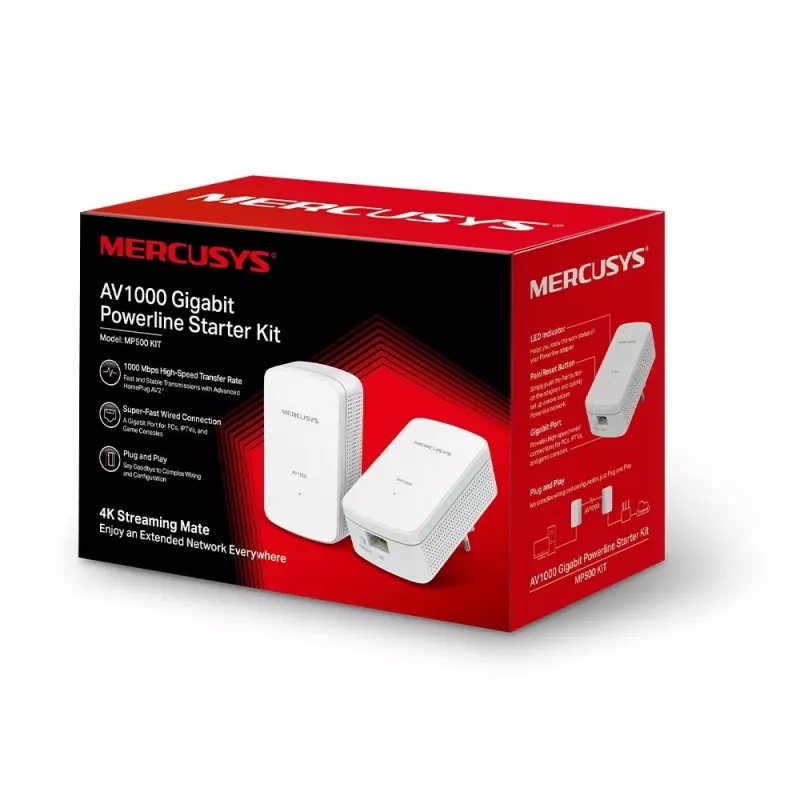

• Kit Contents: 2x Powerline Ethernet Adapters, 2x Ethernet Cables (RJ45), Quick Installation Guide
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% non-condensing
• Certifications: CE, RoHS

Final note

The MERCUSYS AV1000 MP500 KIT is a reliable and secure solution for extending your network to any room without the need for new cabling, while preserving your power outlets.
