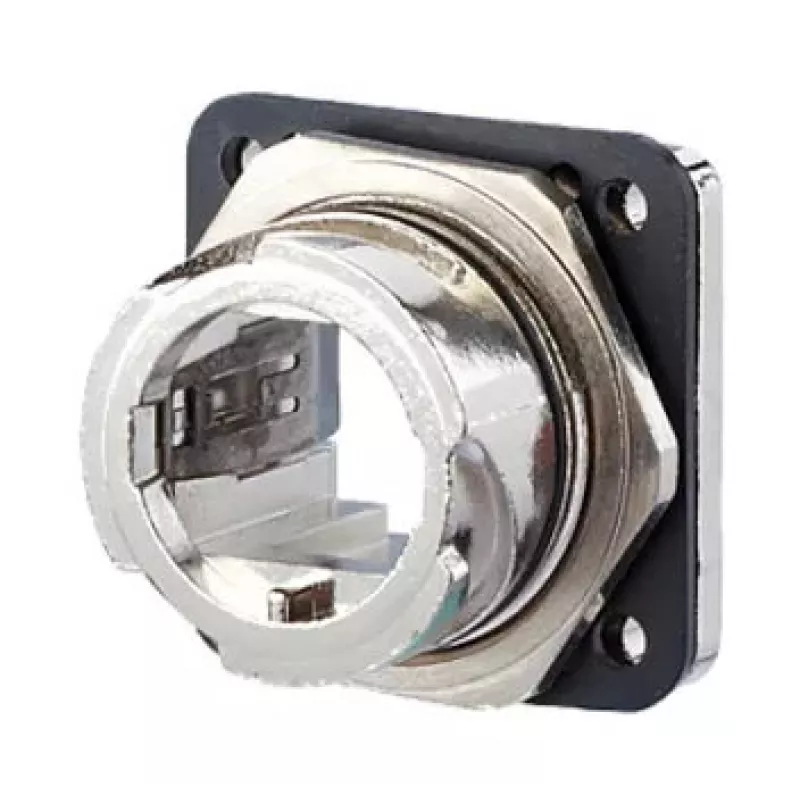

Kaapeliläpivienti BTR 1401013300ME, metalli, metallipinta, IP67

BTR 1401013300ME is a metal cable gland with a metallic finish and IP67 protection rating designed for industrial and outdoor cable entries. The product provides dust-tight and waterproof sealing, strain relief and secure electrical connections. Its industry-compatible metal housing offers improved durability and flammability class UL 94V-0, with enhanced resistance to chemical substances and options for grounding.

Advantages

The metal construction and metallic finish deliver robust mechanical protection and long service life in demanding environments. The flange with bayonet lock conforms to ISO/IEC 24702 and IEC 61076-3-106 var. 1, enabling a reliable locking mechanism. Installation is simplified by round wall recesses compatible with commercially available punch pliers and central screwing, plus an alternative 4-screw (M3) mounting option. The design allows mounting from both front and back sides and supports grounding on RJ45 inserts via 2.8 mm contact pins. A single flange version fits several matching inserts for RJ45, USB and optical couplers, facilitating flexible configurations.

Suitable for

• Industrial cable entries requiring IP67 protection
• Outdoor junction boxes and enclosures
• Applications needing chemical resistance and flame-retardant components
• Installations that require strain relief and secure locking for modular inserts

Key specifications

• Material: metal, metallic finish
• Protection rating: IP67
• Flammability: UL 94V-0
• Flange locking: bayonet lock per ISO/IEC 24702 and IEC 61076-3-106 var. 1
• Mounting: central screwing; alternative with 4 × M3 screws (screws not included)
• Mounting sides: front and back
• Grounding option: on RJ45 insert using 2.8 mm contact pins
• Compatible inserts: E-DAT Industry RJ45 field jack (T568A/T568B/Profinet), E-DAT RJ45 coupler, E-DAT USB coupler, OpDAT SC-RJ/2SC coupler, OpDAT LC-D coupler

How to use

Prepare the enclosure wall by creating round recesses using standard punch pliers that match the flange recesses. Insert the cable gland from the front or back as required, align the bayonet lock and engage it according to the locking standard. Secure the flange using the central screw or, if preferred, fit four M3 screws (not supplied) for alternative fixation. Route the cable through the gland, apply the appropriate strain relief and, where applicable, fit the chosen modular insert (RJ45, USB or optical) to establish the required connection. If grounding is needed for an RJ45 insert, connect using the 2.8 mm contact pins provided on the insert.

Recommendations

Verify compatibility of the selected insert (T568A, T568B or Profinet for RJ45) before installation. Use appropriate sealing practices to maintain IP67 integrity and follow local installation standards for grounding and cable strain relief.
