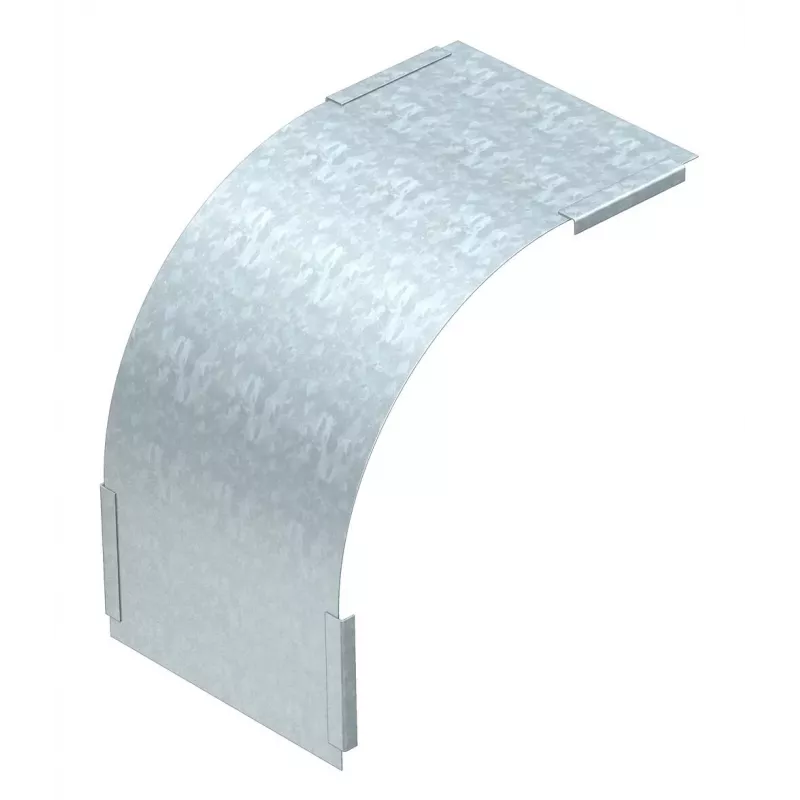

OBO BETTERMANN kansi pystykäyrälle DBV 60 200 FS:lle, laskeva (7130860)

In industrial and commercial buildings, cable tray systems route power and data cables along walls and ceilings. When a vertical bend changes the cable path downward, the OBO BETTERMANN Cover for Vertical Bend DBV 60 200 for FS, Falling (7130860) provides a protective cover that matches the bend geometry. It is used by electrical installers and panel builders who need to enclose cables at 90° falling bends in 60 mm side height, 200 mm wide cable trays.

Key specifications

• Product type: Cover for vertical bend
• Compatible tray width: 200 mm
• Compatible tray side height: 60 mm
• Bend direction: Falling (downward)
• Bend angle: 90°
• Bend radius: 300 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized (FS)
• Material thickness: Approx. 1.0 mm
• Mounting method: Clip-on / fastening
• Standard: DIN EN 61537
• Colour: Metallic

Why choose it

The cover is made from steel with hot-dip galvanizing, providing corrosion protection for long-term use in indoor environments. Its dimensions are matched to OBO BETTERMANN cable trays with 60 mm side height and 200 mm width, ensuring a precise fit at falling bends. The clip-on mounting allows quick installation without additional tools.

Ideal use cases

• Covering vertical falling bends in cable tray runs
• Protecting cables from mechanical damage and debris
• Maintaining a continuous enclosure in industrial cable routing
• Retrofitting existing OBO BETTERMANN tray systems

Good to know

This cover is part of the OBO BETTERMANN cable tray system and is designed for use with FS (hot-dip galvanized) trays. It complies with DIN EN 61537 for cable tray systems. The model number 7130860 identifies this specific size and finish.
