OBO Bettermann pituusliitin LVG 110 FT 114x250 (6216545)

Hot-dip galvanized steel longitudinal connector for joining cable trays, 250 mm long and 114 mm wide, with high corrosion protection per DIN EN ISO 1461.

Overview

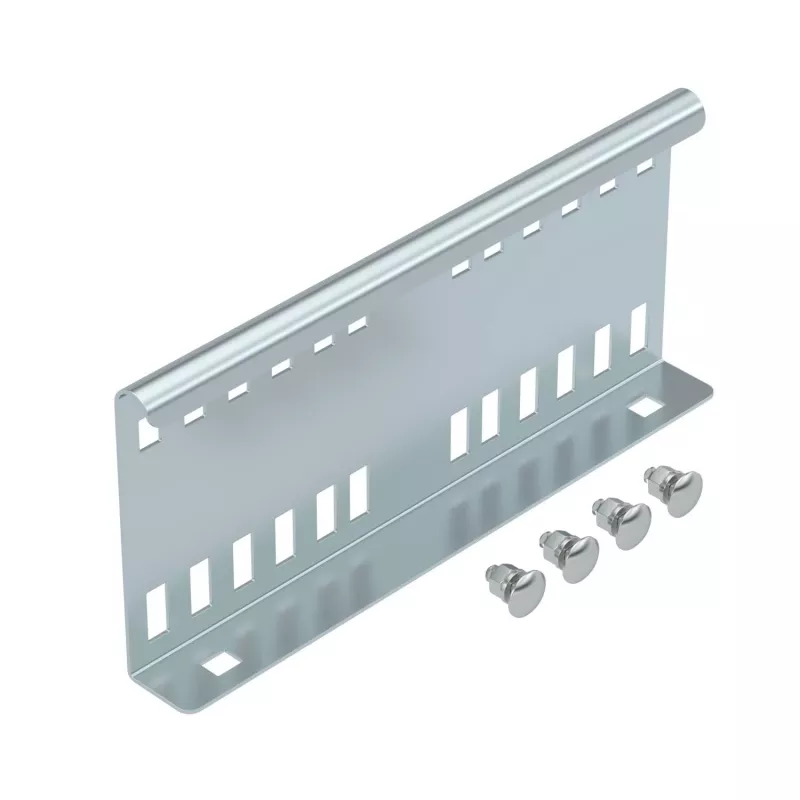

The OBO Bettermann LVG 110 FT is a longitudinal connector designed to join cable trays in electrical installations. It is made of steel with a hot-dip galvanized surface treatment (FT), providing excellent corrosion resistance for both indoor and outdoor use. The connector is compatible with cable trays of 100 mm width from the SKS and SKSM series.

What stands out

• Hot-dip galvanized finish for long-lasting protection
• Compatible with OBO Bettermann SKS and SKSM cable tray systems
• Simple screw mounting with M6 screws (not included)
• Suitable for indoor and outdoor applications

Technical details

• Product type: Longitudinal connector
• Material: Steel
• Surface treatment: Hot-dip galvanized (FT)
• Galvanization standard: DIN EN ISO 1461
• Connector length: 250 mm
• Connector width: 114 mm
• Connector thickness: 2 mm
• Compatible cable tray width: 100 mm
• Compatible cable tray series: SKS, SKSM
• Mounting type: Screw connection
• Required fasteners: M6 screws (not included)
• Colour: Metallic silver-grey
• Environmental suitability: Indoor and outdoor
• Packaging unit: 1 piece

Our verdict

A robust and corrosion-resistant connector that ensures reliable joining of OBO Bettermann cable trays, ideal for demanding environments.
