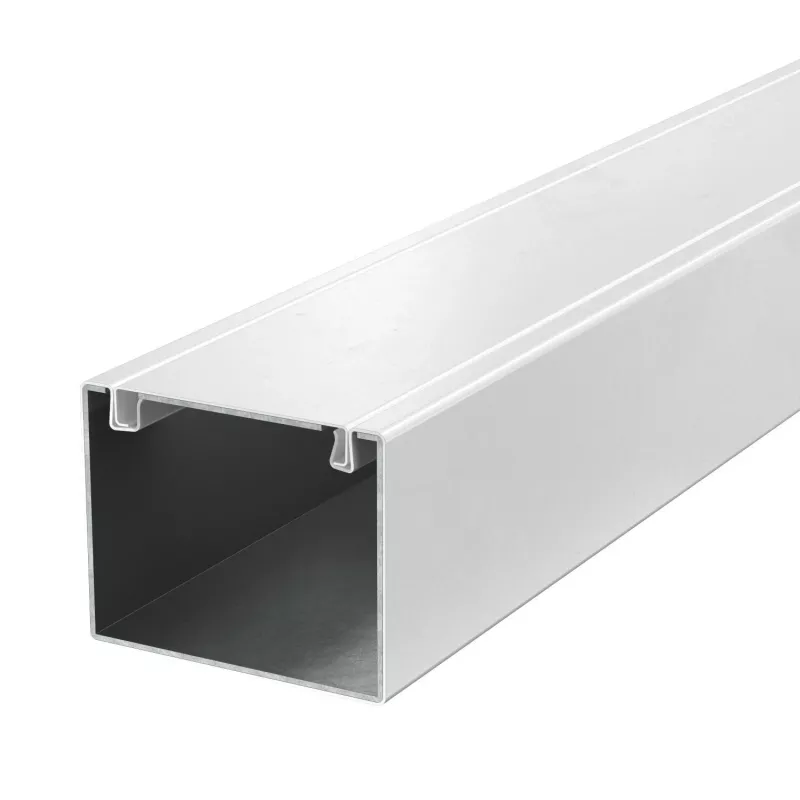

OBO BETTERMANN PLM D 0810 RW palosuojakaapelikanava 80x100x2000 mm, sinkitty teräs, valkoinen 7218010

This OBO BETTERMANN PLM D 0810 RW cable trunking is engineered for maintaining electrical function in the event of fire, meeting DIN 4102-12 with fire resistance classes E30 to E120. Unlike standard metal trunking, it features an integrated fire protection fabric that expands under heat to seal the interior and protect cables.

Highlights

• Fire resistance class E30 to E120 according to DIN 4102-12
• Galvanized steel construction for durability
• Hinged, removable cover for easy cable access
• Pure white RAL 9010 finish
• Wall or ceiling mounting

In daily use

The trunking provides a usable cross-section of 60 cm², suitable for routing power and data cables in buildings where fire safety is critical. Its hinged cover allows for quick installation and maintenance, while the halogen-free materials ensure low smoke emission in case of fire.

Full specifications

• Product type: Fire Protection Cable Trunking
• Material: Galvanized Steel
• External dimensions: 80 mm height x 100 mm width x 2000 mm length
• Usable cross-section: 60 cm²
• Colour: Pure White (RAL 9010)
• Cover type: Hinged, removable
• Mounting type: Wall or Ceiling mounting
• Halogen-free: Yes
• Protection degree: IP20
• Number of compartments: 1
• System series: PYROLINE® Rapid

Final note

Designed for professional electrical installations where fire protection is mandatory, this trunking ensures circuit integrity during a fire, providing crucial time for evacuation and emergency systems.
