OXT mini kohtausohjainmoduuli 12 toimintoa 230V ZigBee TUYA T254

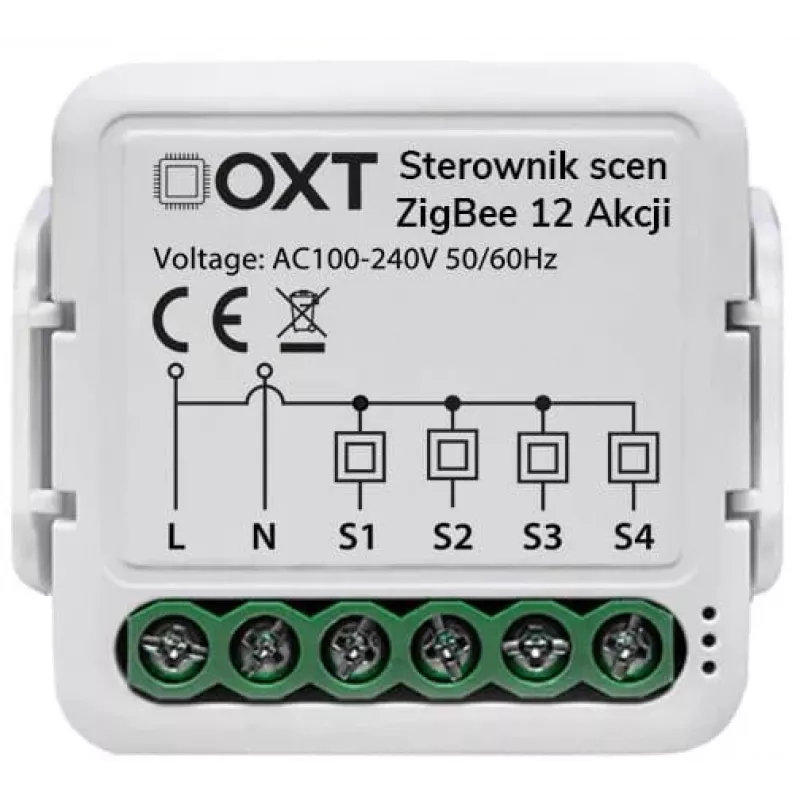

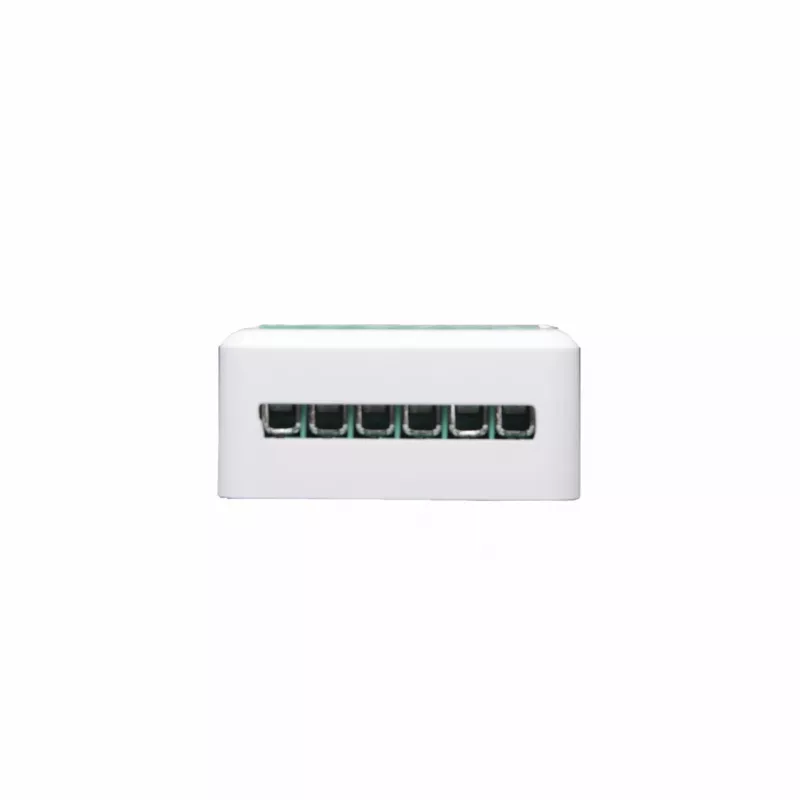

The OXT T254 Mini Scene Controller Module is a compact ZigBee 3.0 device designed to transform traditional wall switches into smart scene triggers. Compatible with the Tuya Smart / Smart Life app, it allows you to program up to 12 actions and control them via 6 external momentary switches. Ideal for flush-mounted installations in standard wall boxes, this module brings intelligent scene control to any home or office environment without replacing existing switches.

Advantages

Upgrade your lighting and appliance control with minimal effort. The OXT T254 enables you to create custom scenes (e.g., 'Movie Night', 'All Off') that can be activated by a simple press of a connected switch. Its compact design fits behind existing switch plates, preserving your interior aesthetics while adding smart functionality. With low standby power consumption (<0.5W) and fire-retardant housing, it is both energy-efficient and safe.

Suitable for

• Smart home automation projects requiring scene control
• Retrofitting existing switches with smart capabilities
• Controlling multiple devices simultaneously via predefined scenes
• Integration with Tuya-compatible ZigBee gateways

Key specifications

• Communication Protocol: ZigBee 3.0 (IEEE 802.15.4)
• Power Supply: 100-240V AC, 50/60Hz
• Number of Programmable Actions: 12

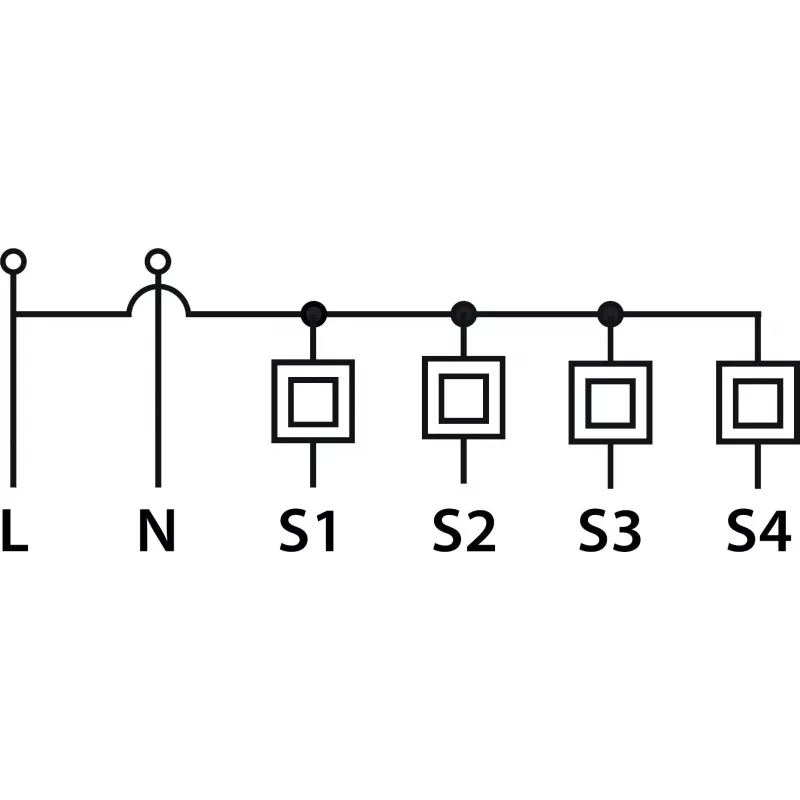

• Input Channels: 6 (for external momentary switches)

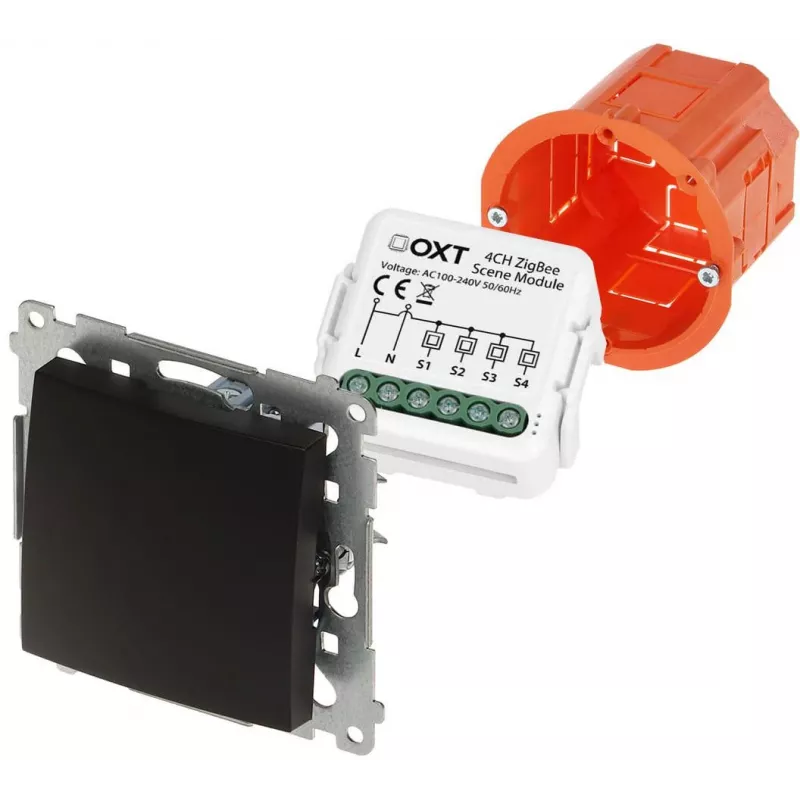

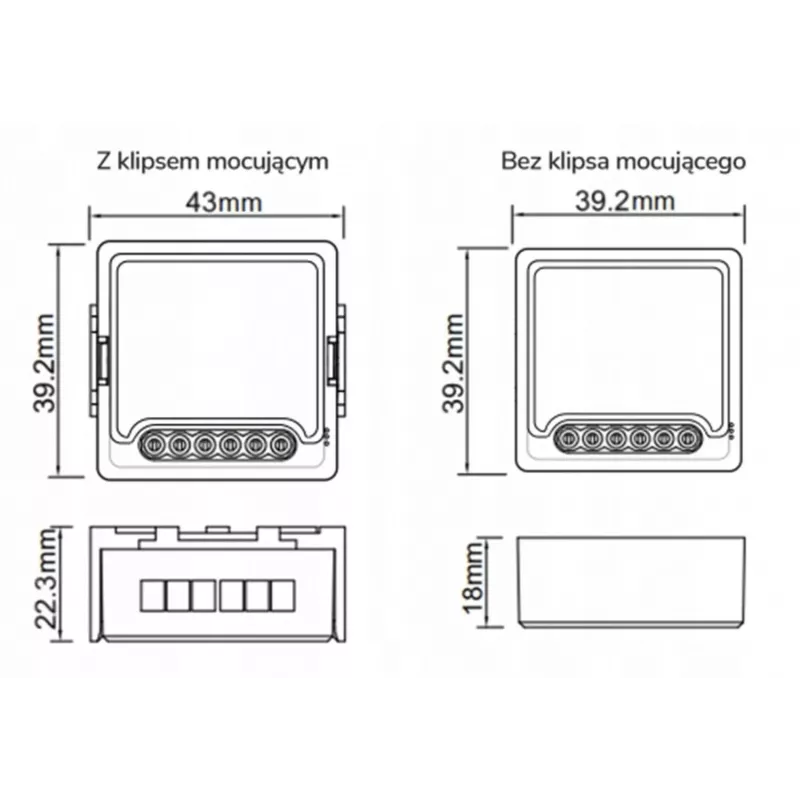

• Installation: Flush-mounted (in standard wall box)
• Operating Temperature: -10°C to +40°C
• Housing Material: PC V0 (Fire-retardant)
• Certifications: CE, RoHS
• Standby Power Consumption: <0.5W
• Wireless Range: Up to 30m indoors (mesh network dependent)
• LED Indicator: Yes (for status and pairing)

Recommendations

For full functionality, pair this module with a Tuya-compatible ZigBee gateway (sold separately). Use the Smart Life app to configure scenes and assign actions to each input channel. Ensure the module is installed by a qualified electrician and that the power is disconnected during installation.
