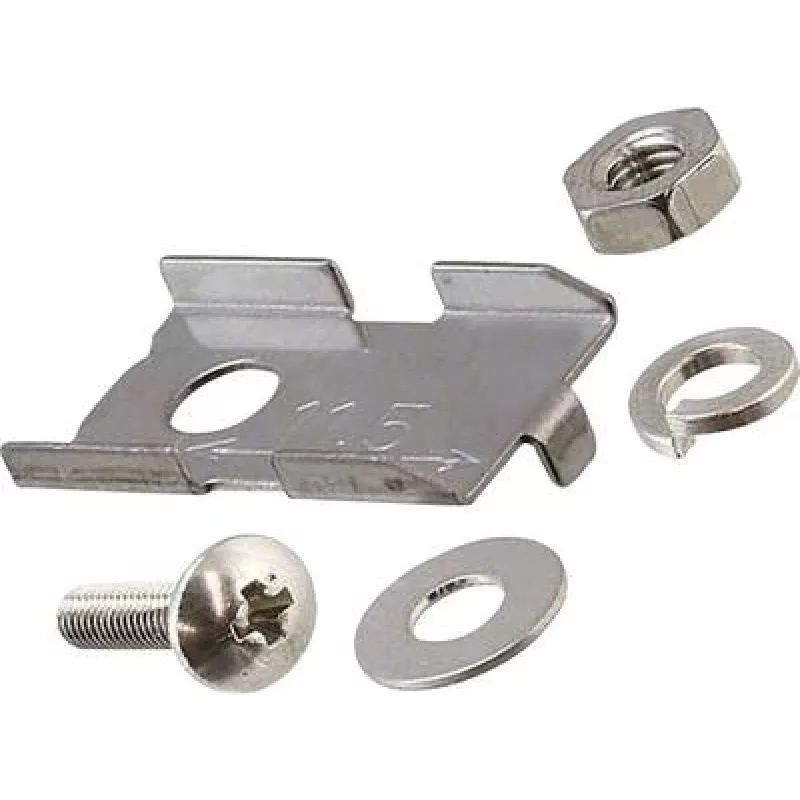

Panasonic asennuskehys MSGXL84 — yleisasennuskehys yhteensopiville laitteille

Panasonic Mounting Frame MSGXL84 is a universal installation frame designed to secure compatible Panasonic devices in standard wall or panel apertures. The frame provides a rigid support structure for flush or recessed mounting, helping to align the device precisely and maintain a stable installation over time. It is intended for professional electricians, AV installers, and experienced DIY users who need a reliable mechanical interface between the device and the mounting surface.

Advantages

The mounting frame offers dimensional accuracy and repeatable alignment to simplify device positioning during installation. Its construction provides consistent support that reduces stress on device housings and connectors. The frame is compatible with common installation depths and fits into typical electrical or AV mounting boxes, enabling neat, low-profile finishes. It also streamlines installation time by offering predefined fixing points for screws and snap-fit engagement where applicable.

Suitable for

• Installing compatible Panasonic control panels or AV modules into wall or panel cutouts
• Flush or recessed mounting where precise alignment is required
• Professional electrical and audiovisual installations in residential and commercial buildings
• Retrofit projects replacing existing frames or upgrading device mounting

Key specifications

• Material: durable engineered plastic for mechanical stability
• Mounting format: universal frame for standard wall/panel apertures
• Fixing method: screw fixation points and/or snap-fit engagement for stable installation
• Compatibility: designed to accept specified Panasonic device form factors for flush or recessed mounting
• Finish: neutral surface suitable for concealment behind faceplates or trims

How to use

Prepare the mounting aperture according to the device installation instructions, ensuring the cutout matches the frame dimensions. Position the mounting frame into the aperture and align the fixing points with the wall box or panel structure. Secure the frame using the recommended screws, taking care not to overtighten and deform the frame. Once the frame is fixed, insert the compatible Panasonic device into the frame, align it, and complete electrical connections where required. Fit the device trim or faceplate to achieve a flush, finished appearance.

Recommendations

Verify device compatibility and aperture dimensions before installation. Use appropriate fasteners for the wall or panel material and follow local electrical codes. For installations involving power connections or concealed wiring, use a qualified electrician. Inspect the frame and device alignment after installation to ensure secure fixing and unobstructed access to connectors.
