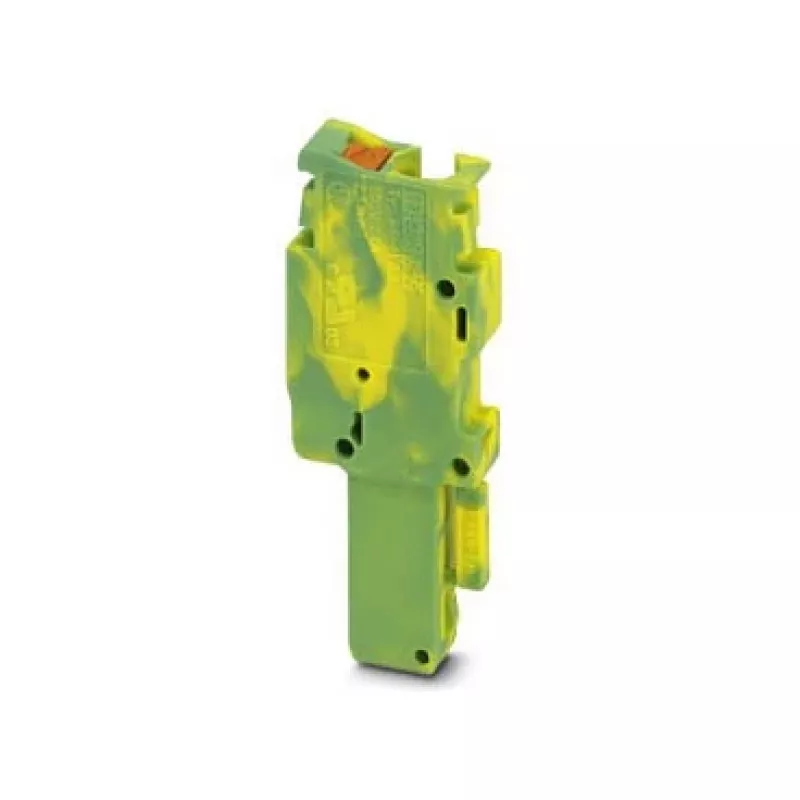

Phoenix Contact PP-H 2,5/1-L GNYE hyppylanka, 1-napainen, vihreä/keltainen

Plug-in bridge for CLIPLINE complete terminal blocks, providing a reliable push-in connection for 2.5 mm² conductors in a green/yellow housing. This 1-position bridge enables quick and secure potential distribution in control cabinets and distribution boards.

Advantages

The push-in technology allows tool-free wiring of solid and stranded conductors with ferrules, reducing installation time by up to 50% compared to screw connections. The green/yellow colour clearly identifies the protective earth function, enhancing safety and compliance. The compact design saves space on the DIN rail, while the polyamide housing offers high mechanical strength and flame retardancy according to UL 94 V0.

Suitable for

• Potential distribution in industrial control panels
• Protective earth bridging in building installation
• Machine building and automation systems
• Railway and transportation applications with high vibration resistance
• Test and measurement setups requiring quick reconfiguration

Key specifications

• Product type: Plug-in bridge
• Number of positions: 1
• Colour: Green/Yellow
• Nominal cross section: 2.5 mm²
• Connection method: Push-in connection
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Insulation material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Mounting type: Plug-in
• Compatibility: PTTB 2,5/2P terminal blocks
• Stripping length: 10 mm
• Conductor type: Solid, stranded, ferruled
• Operating temperature range: -60 °C to 105 °C
• Pollution degree: 3
• Overvoltage category: III
• System: CLIPLINE complete
• RoHS compliant: Yes
• REACH compliant: Yes

Recommendations

For reliable and efficient potential distribution in demanding industrial environments, the Phoenix Contact PP-H 2,5/1-L GNYE plug-in bridge is an excellent choice. Its push-in connection and robust design ensure long-term performance and safety.
