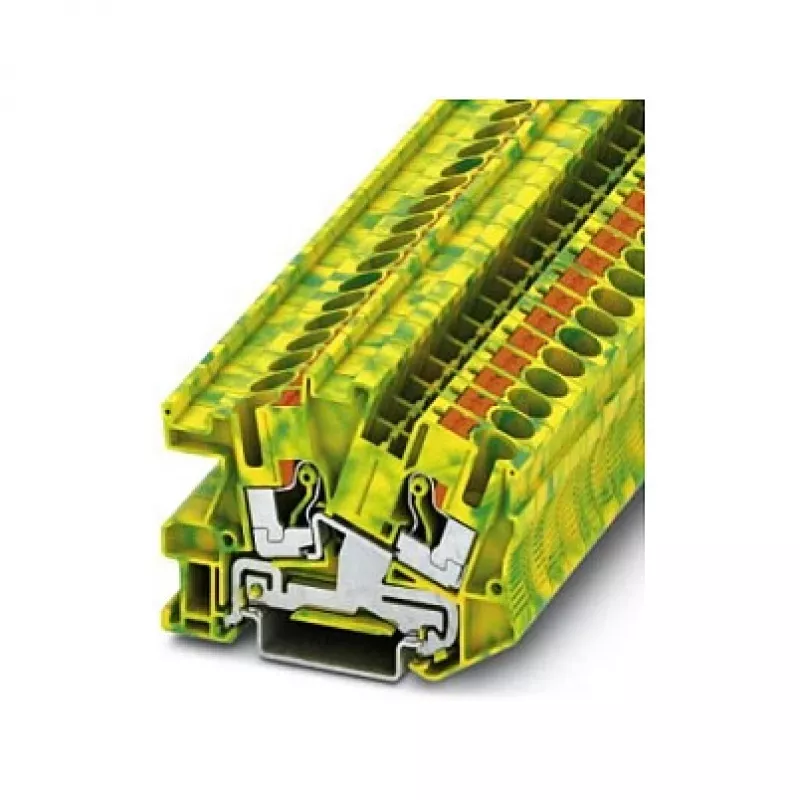

Phoenix Contact PTI 6-PE suojamaaliitin, Push-in-liitäntä, 6 mm², vihreä-keltainen, DIN-kiskoasennus

In industrial control cabinets and junction boxes, a reliable protective conductor connection is non-negotiable for safety and compliance. The Phoenix Contact PTI 6-PE Installation Terminal Block (MPN: 3213966) provides a secure, tool-free push-in termination for protective conductors up to 6 mm², ensuring a stable and low-resistance earth connection. Its compact 1-position design with 2 connections saves valuable rail space while maintaining high performance.

Key specifications

• Type: Protective Conductor (PE) Terminal Block
• Connection method: Push-in connection (tool-free)
• Nominal cross section: 6 mm²
• Number of positions: 1
• Number of connections: 2
• Conductor cross sections: Solid 0.5–10 mm², flexible 0.5–6 mm², AWG 20–8
• Stripping length: 10 mm
• Mounting: DIN rail (NS 35/7,5, NS 35/15, NS 32)
• Colour: Green-yellow (protective conductor identification)
• Housing material: Polyamide (PA), UL 94 V0 flammability rating
• Operating temperature: -60 °C to 105 °C
• Standards: IEC 60947-7-2, pollution degree 3, overvoltage category III

Why choose it

The PTI 6-PE terminal block delivers exceptional reliability and ease of use. The push-in connection technology allows for fast, secure wiring without the need for tools, reducing installation time by up to 50% compared to traditional screw terminals. Its robust polyamide housing ensures long-lasting performance in demanding environments, while the green-yellow colour coding clearly identifies the protective conductor function, enhancing safety and simplifying maintenance.

Ideal use cases

• Industrial control panels and switchgear
• Building automation systems
• Machine building and plant engineering
• Power distribution and electrical installations
• Any application requiring a reliable protective earth connection

Good to know

This terminal block is part of the Phoenix Contact PTI series, known for its compact design and high-density wiring. It is designed for DIN rail mounting and is compatible with common rail types. The push-in connection accepts solid and stranded conductors with ferrules, ensuring a gas-tight and vibration-resistant connection. For detailed technical data, refer to the manufacturer's documentation.
