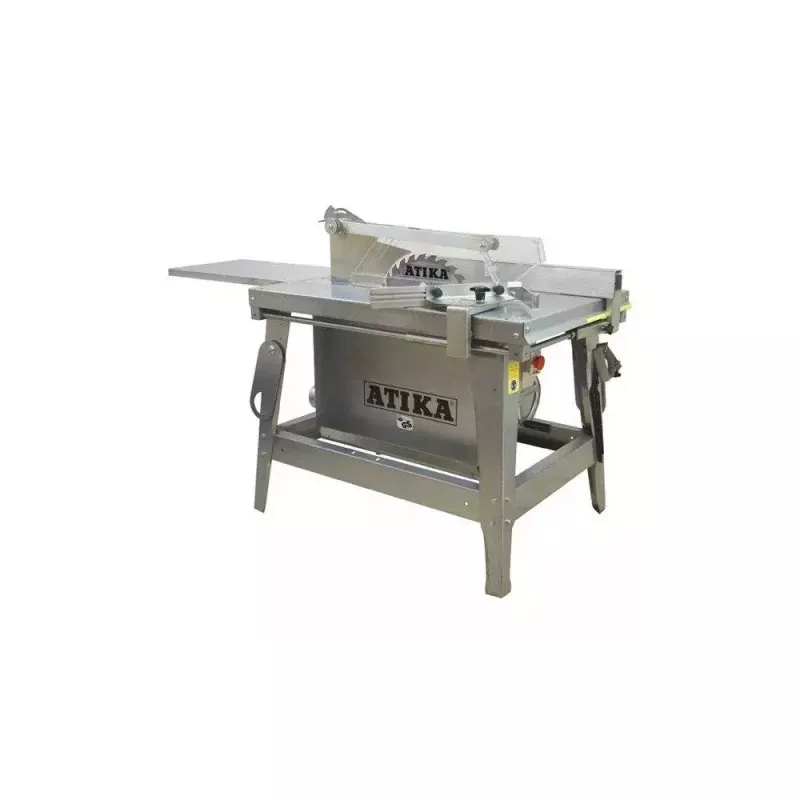

Pöytäsirkkeli ATIKA BTK 500 5,0 kW 400 V

The ATIKA BTK 500 is a professional table saw designed for demanding construction site use. With a powerful 5.0 kW three-phase motor and a 500 mm saw blade, it delivers precise cuts in thick materials. The robust steel construction ensures stability and durability, while the large table with extension provides ample workspace for large workpieces.

Advantages

High cutting performance with 5.0 kW motor and 500 mm blade; precise cuts up to 170 mm depth at 90°; tiltable blade from 0 to 45° for bevel cuts; large table with extension for supporting long workpieces; integrated dust extraction port for cleaner work environment.

Suitable for

• Professional carpenters and construction workers
• Cutting solid wood, panels, and boards
• On-site and workshop applications requiring high power

Key specifications

• Motor power: 5.0 kW
• Voltage: 400 V / 50 Hz
• Motor type: Three-phase motor
• Saw blade diameter: 500 mm
• Saw blade bore: 30 mm
• No-load speed: 2800 rpm
• Max. cutting depth at 90°: 170 mm
• Max. cutting depth at 45°: 120 mm
• Blade tilt range: 0 - 45°
• Table size: 1000 x 660 mm
• Table extension: 800 x 400 mm
• Dust extraction port diameter: 100 mm
• Protection class: IP 54
• Sound pressure level: 95 dB(A)
• Sound power level: 108 dB(A)
• Included accessories: Parallel stop, angle stop, push stick, saw blade protection
• Frame material: Robust steel construction

Recommendations

For optimal performance, use a sharp 500 mm saw blade with 30 mm bore. Ensure proper dust extraction connection (100 mm) to maintain a clean workspace. Always use the included push stick and blade guard for safety.
