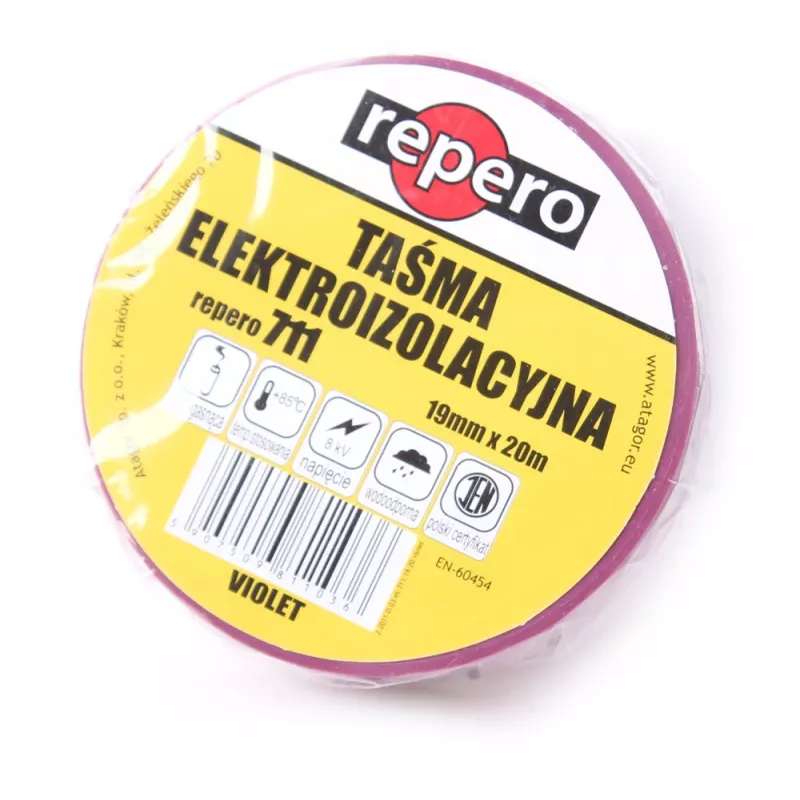

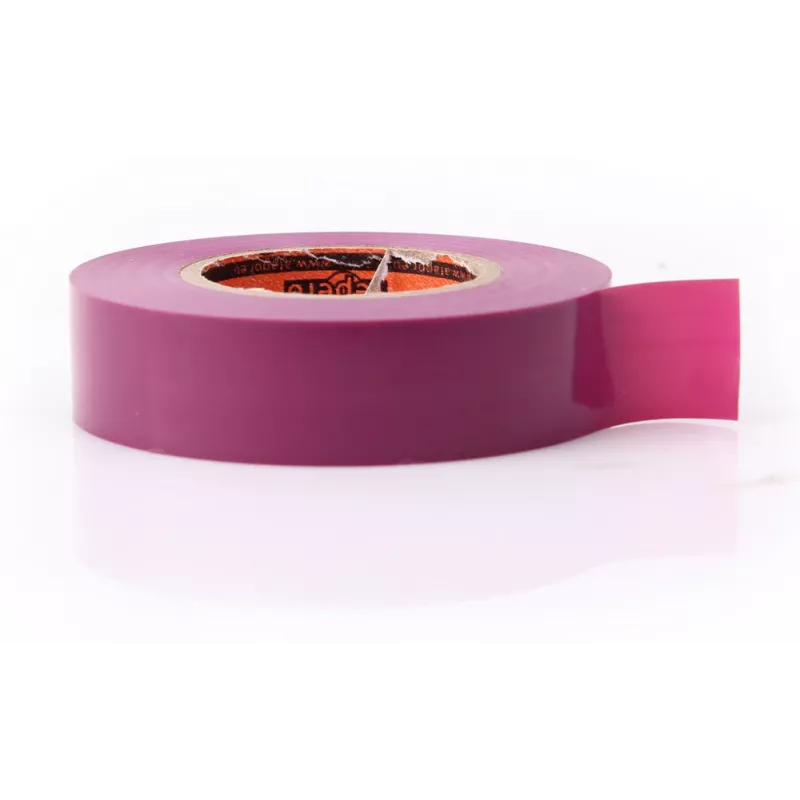

REPERO 711E violetti PVC-eristysnauha 19 mm x 20 m

Electrical insulating tape in violet, crafted from durable PVC with a rubber-based adhesive, delivers dependable insulation for wires and cables up to 600 V. Its self-extinguishing nature and strong adhesion make it a safe choice for a wide range of electrical tasks.

Advantages

With a high dielectric strength of 8 kV, this tape ensures effective insulation and minimizes the risk of electrical leakage. It withstands temperatures from -5°C to +80°C and offers good resistance to UV and water, making it suitable for both indoor and outdoor applications. The violet colour allows for clear colour-coding of circuits, aiding in quick identification and organization.

Suitable for

• Insulating electrical wires and connections
• Bundling and organising cables
• Colour-coding for phase identification
• Repairing damaged insulation
• General electrical maintenance

Key specifications

• Material: PVC with rubber-based adhesive
• Width: 19 mm
• Length: 20 m
• Thickness: 0.13 mm
• Dielectric strength: 8 kV
• Voltage rating: up to 600 V
• Temperature resistance: -5°C to +80°C
• Adhesion to steel: > 1.8 N/10mm
• Tensile strength: > 20 N/10mm
• Elongation at break: > 125%
• Flame retardancy: self-extinguishing
• UV resistance: good
• Water resistance: yes
• Standard compliance: IEC 60454-3-1-5/F-PVCP/90

Recommendations

For best results, apply the tape to clean, dry surfaces with 50% overlap. Store in a cool, dry place away from direct sunlight to maintain adhesive properties.
