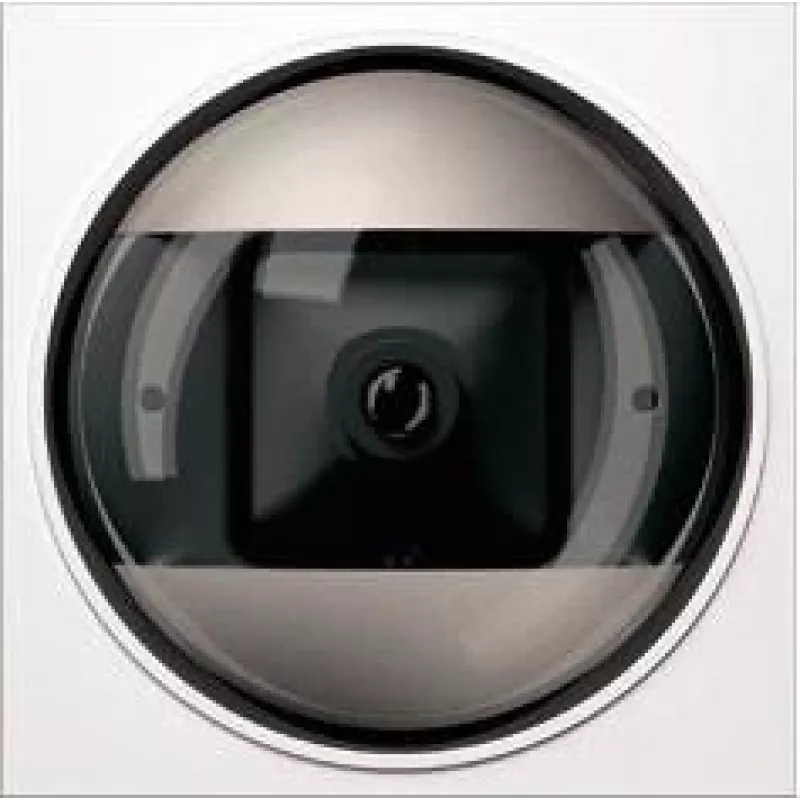

Ritto 1878370 TwinBus-kameramoduuli oviasemille

Where most door station cameras force a choice between wide coverage and night-time clarity, the Ritto 1878370 camera module delivers both without extra wiring or power supplies. It slots directly into compatible Ritto TwinBus door stations, turning a basic audio intercom into a full video entry system over the existing 2-wire bus. The 1/3" CMOS sensor captures colour video with a 130° horizontal field of view, so you see visitors from edge to edge, while integrated IR LEDs maintain a clear image after dark. Mechanical angle adjustment of ±15° in both axes lets installers fine-tune the framing to suit the mounting height and approach path.

Highlights

• Native TwinBus compatibility — no additional power supply or video distributor required
• Wide-angle 130° lens covers the full doorway area with minimal blind spots
• Integrated infrared LEDs provide automatic night vision without external illuminators
• Mechanically adjustable ±15° horizontally and vertically for precise scene alignment
• Compact module designed for flush integration into Ritto door station fronts

In daily use

Once installed, the module behaves as a seamless part of the door station. When a visitor presses the call button, the indoor monitor receives a live colour image — even in complete darkness, thanks to the IR LEDs. The wide viewing angle means you can identify packages left on the ground or see a second person standing to the side. Because the camera draws power directly from the TwinBus, there are no extra cables to route or transformers to hide. The mechanical adjustment is a practical advantage during installation: instead of shimming the entire door station, you simply tilt the camera module a few degrees to avoid glare or centre the visitor in the frame.

Full specifications

• Product type: Camera module
• System compatibility: Ritto TwinBus
• Image sensor: 1/3" CMOS
• Video output: Colour
• Lens type: Wide-angle
• Horizontal viewing angle: approx. 130°
• Vertical viewing angle: approx. 90°
• Night vision: Integrated infrared (IR) LEDs
• Angle adjustment: Mechanically adjustable ±15° (horizontal & vertical)
• Connection technology: 2-wire bus
• Power supply: Via TwinBus system
• Installation type: Integrated into Ritto door stations
• Application: Video door communication
• Manufacturer series: TwinBus

Final note

The Ritto 1878370 is a straightforward upgrade path for TwinBus audio systems — one module adds video, night vision, and installation flexibility without changing the existing infrastructure.
