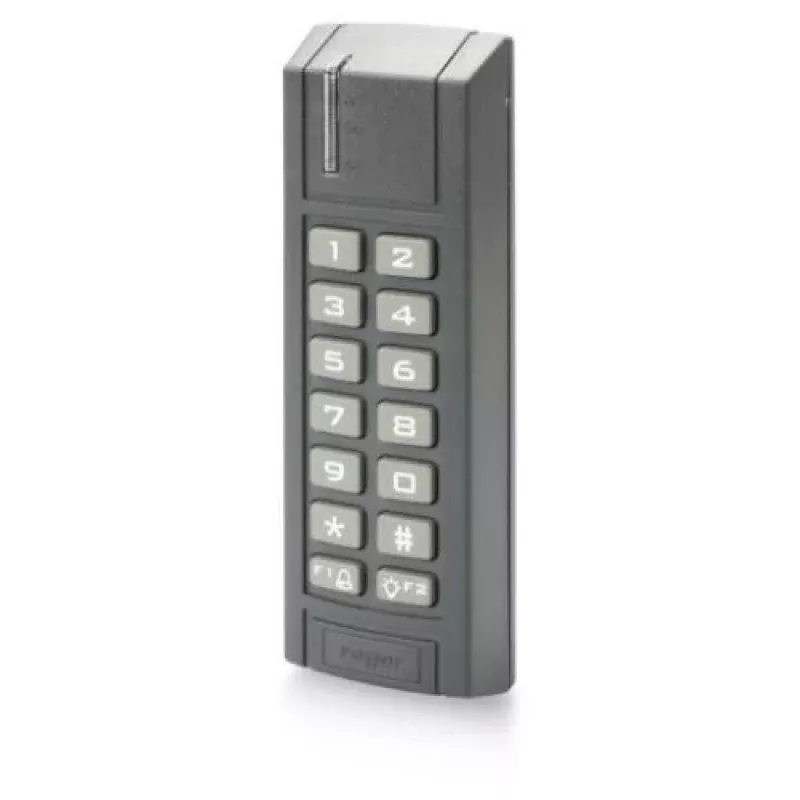

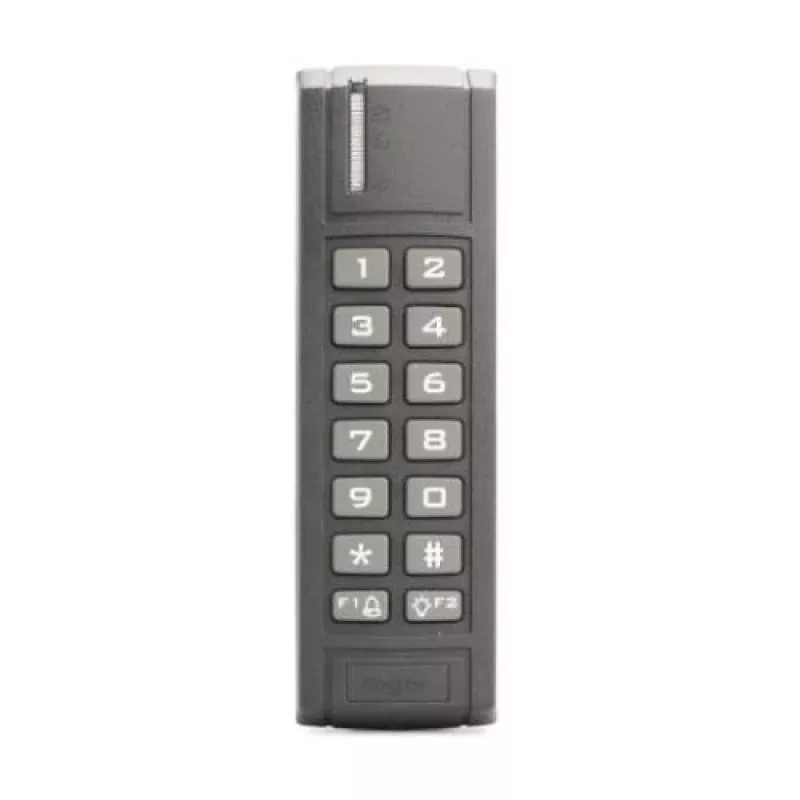

ROGER PRT12MF-R4 etäisyyskortinlukija, 13,56 MHz MIFARE

The ROGER PRT12MF-R4 is a proximity card reader operating at 13.56 MHz and supporting MIFARE® Ultralight/Classic cards. It features a RACS CLK/DTA or Wiegand interface, an optical LED indicator, and a buzzer with adjustable volume. The keypad backlight brightness is adjustable, and the device includes two function keys. It is designed for both outdoor and indoor use.

Key features

• 13.56 MHz MIFARE® Ultralight/Classic
• RACS CLK/DTA or Wiegand interface
• Optical LED indicator
• Buzzer with adjustable volume
• Keypad with adjustable backlight brightness
• 2 function keys
• Control input for LED indicator and buzzer
• Enclosure opening and detachment detection
• Configuration from PC (RogerVDM program)
• Software update
• Connection cable 0.5 m
• Power supply 12 VDC
• Outdoor and indoor operation

Specifications

• Brand: Roger
• MPN: PRT12MF-R4

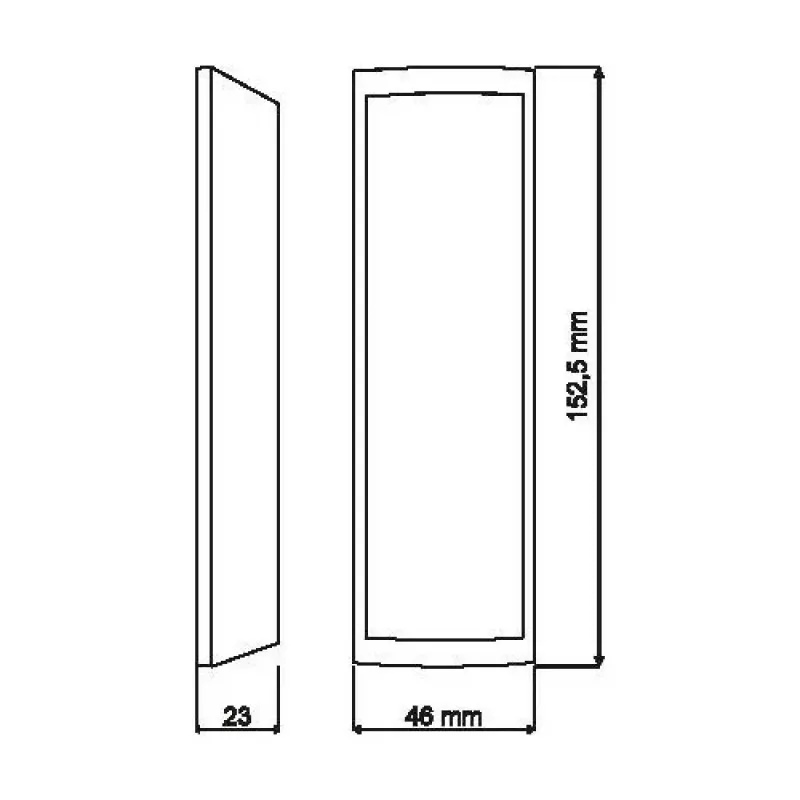

• Dimensions: 152.5 × 46 × 23 mm (H × W × D)
• CE; RoHS
