RUBI TZ-850 käsikäyttöinen laattaleikkuri 850 mm

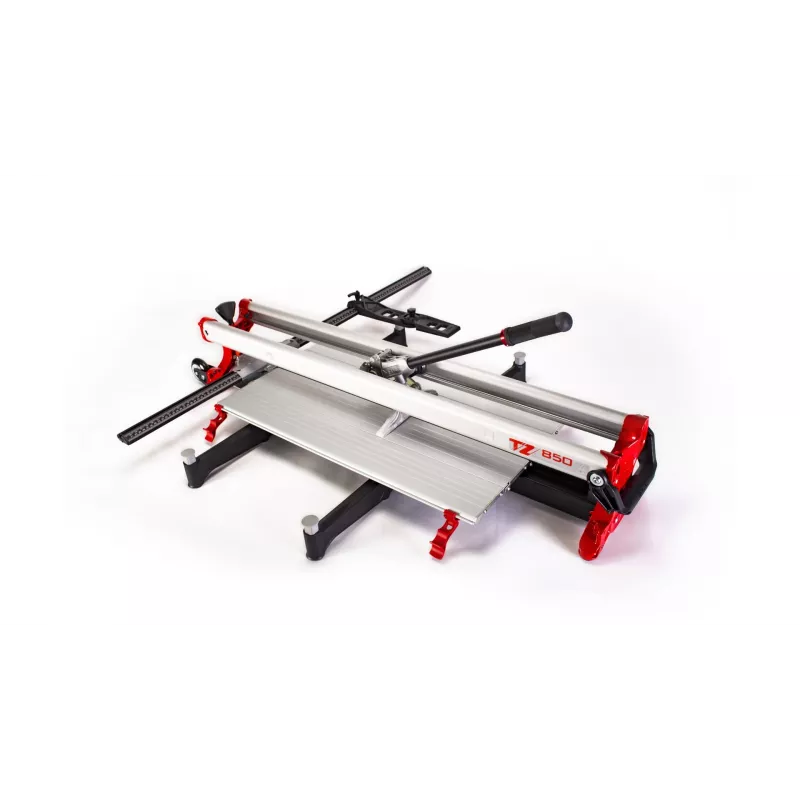

The RUBI TZ-850 is a professional manual tile cutter designed for high-precision cutting of ceramic, porcelain, and extruded tiles. With a maximum cutting length of 850 mm and a robust breaking power of 1200 kg, this tool ensures clean, accurate cuts every time. The double steel guide system and reinforced aluminum base provide exceptional stability and durability, while the ergonomic soft-grip handle offers comfortable operation. The swiveling breaking system and adjustable square with central pivot enhance versatility, making it ideal for both straight and diagonal cuts up to 600 x 600 mm. Integrated wheels and a transport handle facilitate easy movement on job sites.

Advantages

High-precision cutting with push/pull action; compatible with scoring wheels from Ø 8 to 22 mm; includes 8 mm and 18 mm EXTREME scoring wheels; suitable for tiles 3-21 mm thick; lightweight yet sturdy construction for professional use.

Suitable for

• Ceramic tiles
• Porcelain tiles
• Extruded tiles

Key specifications

• Max Cutting Length: 850 mm
• Max Diagonal Cutting Length: 600 x 600 mm
• Max Cutting Thickness: 3-21 mm
• Breaking Power: 1200 kg
• Scoring Wheel Diameter: Ø 8-22 mm
• Guide System: Double steel guides
• Base Material: Reinforced aluminum
• Handle: Ergonomic soft-grip
• Adjustable Square: Yes, with central pivot
• Transport Features: Integrated wheels and handle
• Cutting Type: Push/Pull
• Scoring Wheel Included: Yes (8mm and 18mm EXTREME)
• Breaking System: Swiveling breaking system

Recommendations

For best results, use with RUBI EXTREME scoring wheels and ensure the tile is properly supported. Regularly clean the guide rails and lubricate moving parts to maintain precision.
