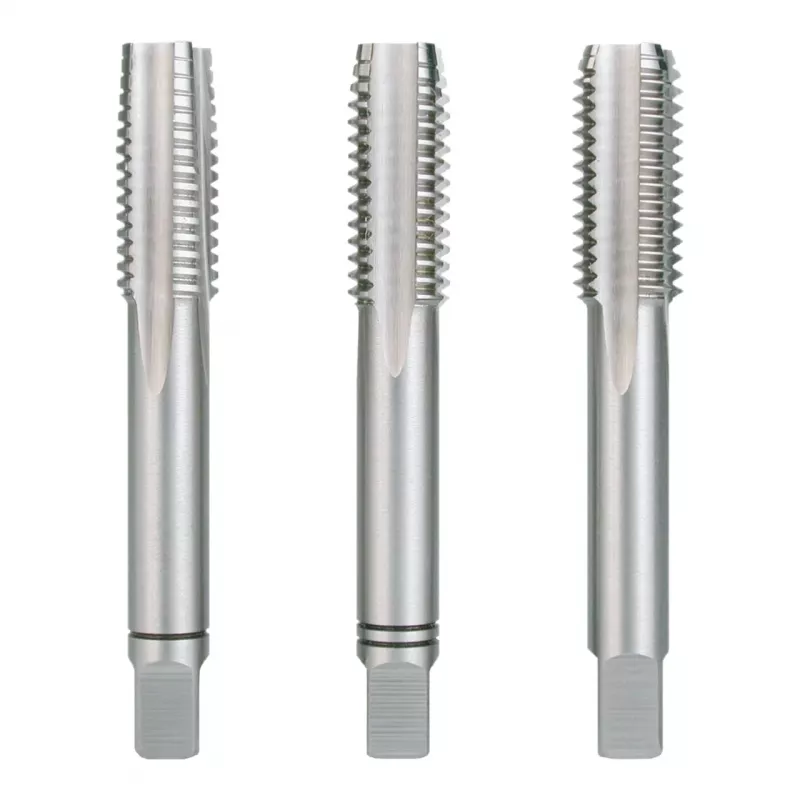

RUKO HGB-DIN352-HSS-M15x2,0mm käsikierteitystappisarja

Manual threading tool for cutting metric ISO threads with a 2.0 mm pitch. The HGB-DIN352-HSS-M15x2.0mm hand tap set is made from high-speed steel and includes a finishing tap (Form C) for right-hand cutting.

Advantages

High-speed steel construction provides durability and wear resistance for manual threading in general-purpose steels, non-ferrous metals, and cast iron. Straight flutes with 4 flutes ensure efficient chip evacuation.

Suitable for

• Creating M15 x 2.0 mm metric threads by hand
• Workshop and maintenance applications
• General purpose steels, non-ferrous metals, cast iron

Key specifications

• Thread type: Metric ISO thread
• Nominal diameter: M15
• Thread pitch: 2.0 mm
• Standard: DIN 352
• Material: High-speed steel (HSS)
• Cutting direction: Right-hand
• Flute type: Straight
• Number of flutes: 4
• Overall length: 110 mm
• Thread length: 35 mm
• Shank diameter: 11.0 mm
• Square drive size: 9.0 mm
• Tolerance class: 6H
• Lead type: Finishing tap (Form C)
• Surface treatment: Bright (uncoated)

Recommendations

Use with a suitable tap wrench and cutting fluid for best results.
