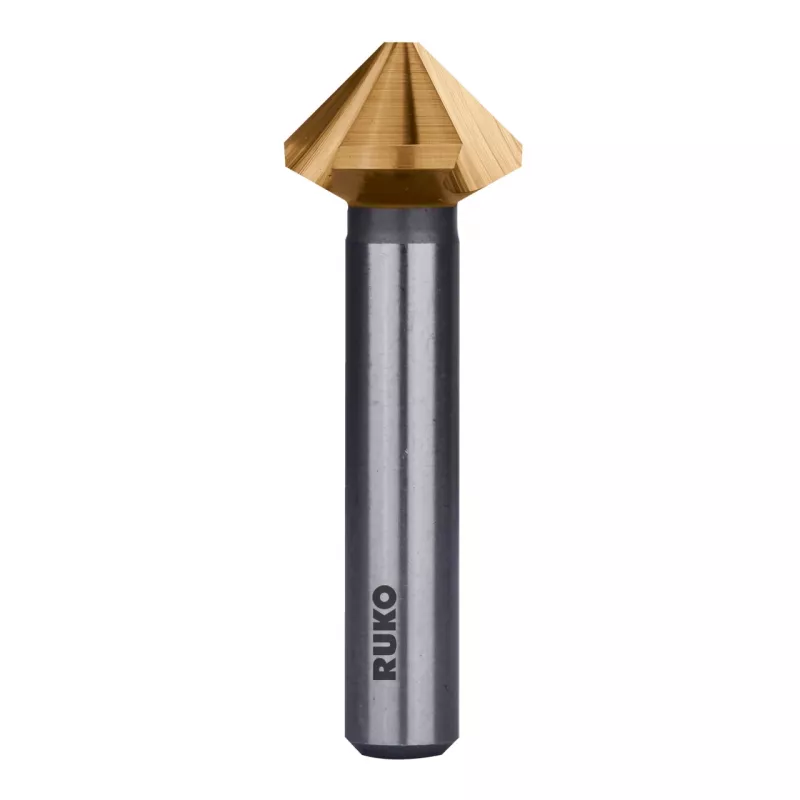

RUKO KES-DIN335-HSS-TiN-90°-Ø11,5mm kartio-upotuspora

Countersink bit with 90° cutting angle and 11.5 mm cutting diameter, made from high-speed steel with titanium nitride coating for extended tool life. The three-flute design with straight cutting edges ensures clean, chatter-free countersinking in a wide range of materials.

Advantages

The TiN coating reduces friction and heat build-up, allowing higher cutting speeds and longer intervals between regrinds. Fully ground flutes provide precise concentricity and smooth chip evacuation.

Suitable for

• Deburring and chamfering drilled holes
• Countersinking for flat-head screws
• Steel, cast iron, non-ferrous metals, plastics, and wood

Key specifications

• Standard: DIN 335 C
• Cutting diameter: 11.5 mm
• Shank diameter: 8 mm (cylindrical, tolerance h8)
• Overall length: 56 mm
• Number of flutes: 3
• Cutting angle: 90°
• Coating: Titanium Nitride (TiN)
• Material: High-Speed Steel (HSS)
• Direction of rotation: Right-hand

Recommendations

Use with a suitable countersinking depth stop for consistent results. For best tool life, apply cutting fluid when working with steel.
