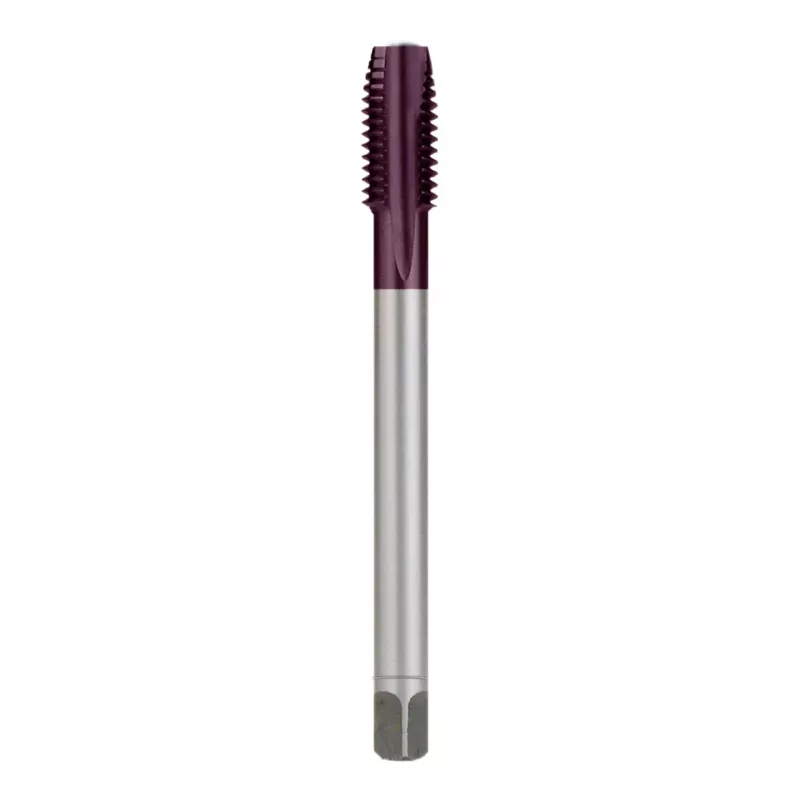

RUKO MGB-DIN376-HSSCo-TiCN-60°-M14x2,00 konekierretappi

When tapping M14 coarse threads in tough materials, ordinary taps can wear quickly or break. The RUKO MGB-DIN376-HSSCo-TiCN-60°-M14x2,00 machine tap solves this with cobalt high-speed steel and a TiCN coating for longer tool life and reliable performance.

Who is it for

Machinists and manufacturing professionals who need to produce metric coarse threads in through holes on steel, stainless steel, cast iron, or non-ferrous metals.

Main features

• M14 x 2.00 mm metric coarse thread to DIN 376
• HSS-Co cobalt high-speed steel for high hardness and heat resistance
• TiCN coating reduces friction and improves wear resistance
• Straight flute design for efficient chip evacuation in through holes
• Right-hand cutting direction with Form C lead (2-3 threads chamfer)

Specifications

• Tool Type: Machine Tap
• Thread Type: Metric Coarse
• Nominal Thread Diameter: M14
• Thread Pitch: 2.00 mm
• Manufacturing Standard: DIN 376
• Material: HSS-Co
• Coating: TiCN
• Thread Angle: 60°
• Tolerance Class: ISO 2 (6H)
• Flute Type: Straight Flute
• Cutting Direction: Right-hand Cut
• Overall Length: 110 mm
• Thread Length: 28 mm
• Shank Diameter: 11.0 mm
• Square Drive Size: 9.0 mm
• Lead Form: Form C (2-3 threads chamfer)
• Application: For Through Holes
• Recommended Material Groups: Steel, Stainless Steel, Cast Iron, Non-ferrous Metals

Tips

Use appropriate cutting fluid for the workpiece material to maximize tap life. Ensure the hole is properly sized according to the recommended drill diameter for M14 x 2.00 mm threads.
