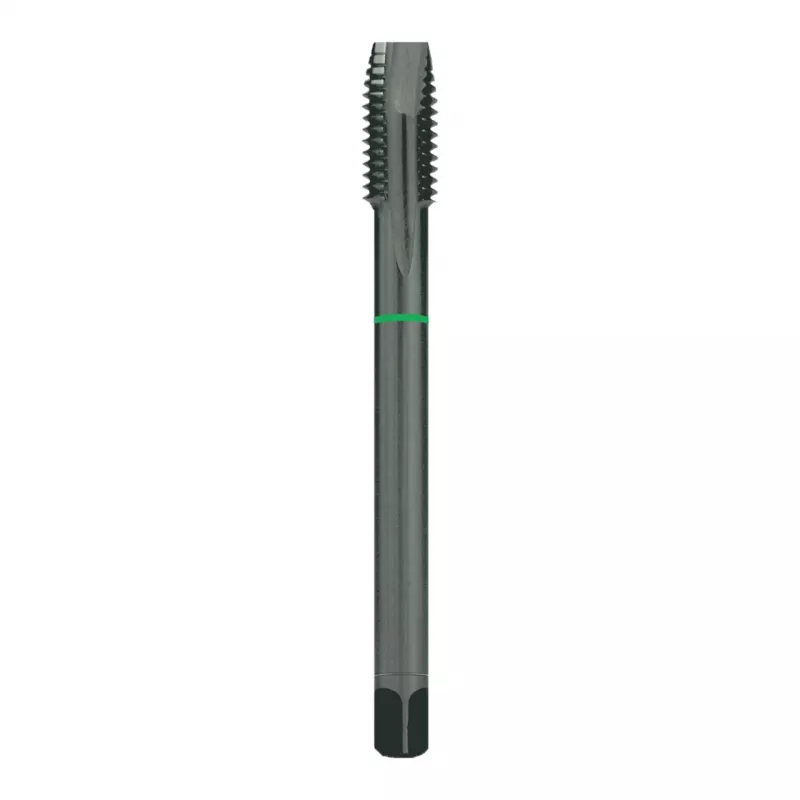

RUKO MGB-DIN376B-HSSCo-vap.-M5x0,80mm konekierretappi

Machine tap for metric coarse threads, designed for through holes. The MGB-DIN376B-HSSCo-vap.-M5x0.80mm cuts M5 threads with a 0.80 mm pitch in steel, stainless steel, cast iron, and non-ferrous metals. Its HSS-E Co cobalt steel construction and vaporized surface treatment deliver high wear resistance and reliable chip evacuation.

Advantages

High-speed steel with cobalt (HSS-E Co) provides excellent heat resistance and durability. The vaporized (steam oxidized) surface reduces friction and improves chip flow. Form B lead chamfer (3.5-5 threads) ensures easy starting and accurate thread guidance.

Suitable for

• Through holes in steel and stainless steel
• Cast iron components
• Non-ferrous metals such as aluminium and brass

Key specifications

• Thread standard: Metric Coarse (M)
• Nominal diameter: M5
• Thread pitch: 0.80 mm
• Tool standard: DIN 376 B
• Material: HSS-E Co
• Surface treatment: VAP (vaporized)
• Cutting direction: Right hand
• Flute type: Straight flute
• Number of flutes: 3
• Total length: 70 mm
• Thread length: 16 mm
• Shank diameter: 6 mm
• Square drive size: 4.9 mm
• Tolerance class: ISO 2 (6H)
• Coolant supply: External

Recommendations

Use with a suitable tapping fluid for optimal tool life. Ensure proper alignment and speed according to the material being tapped.
