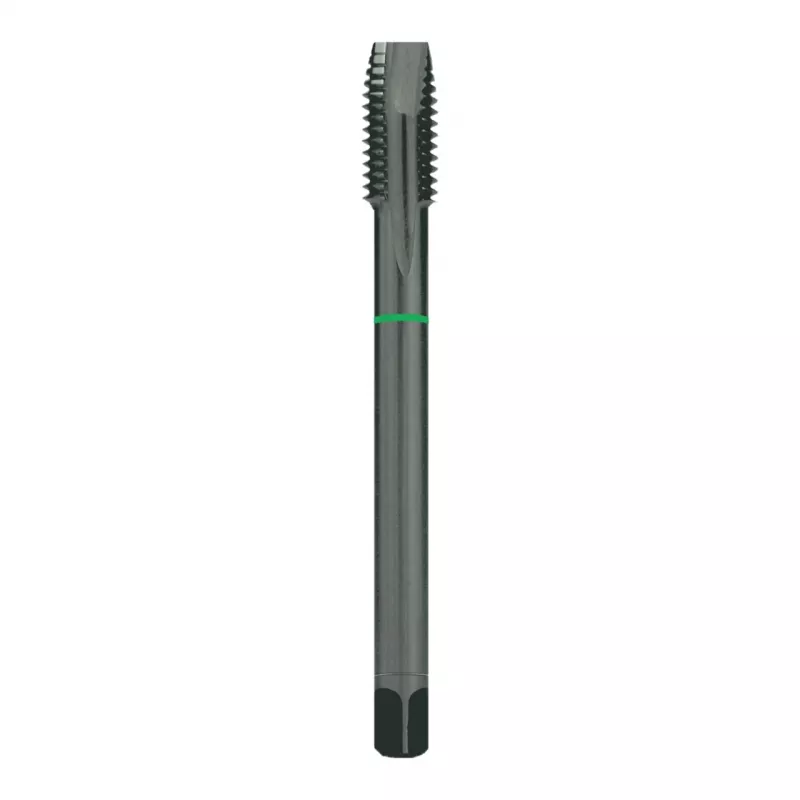

RUKO MGB-DIN376B-HSSCo-vap.-M6x1,00mm konekierretappi

The RUKO MGB-DIN376B-HSSCo-vap.-M6x1.00mm machine tap stands out with its HSSCo (high-speed steel with cobalt) construction and vaporized surface treatment, delivering enhanced wear resistance and tool life in demanding threading operations. Engineered to DIN 376 B specifications, this tap is optimized for through-hole threading with a straight flute design and lead chamfer for efficient chip evacuation.

Highlights

• Metric coarse thread M6 with 1.00 mm pitch
• HSSCo material for high hardness and heat resistance
• VAP (vaporized) surface treatment reduces friction and improves chip flow
• DIN 376 B standard for machine taps with reinforced shank
• 3 flutes with right-hand cut for through holes
• ISO 2 (6H) tolerance class for standard fit

In daily use

This tap is suitable for threading through holes in general-purpose steel, non-ferrous metals, and cast iron. The recommended pre-drill diameter is 5.0 mm. The square drive size is 4.9 mm, compatible with standard tap wrenches and machine holders. With an overall length of 80 mm and thread length of 18 mm, it provides adequate reach for most applications.

Full specifications

• Thread standard: Metric Coarse
• Nominal thread diameter: M6
• Thread pitch: 1.00 mm
• Tool standard: DIN 376 B
• Material: HSSCo (high-speed steel with cobalt)
• Surface treatment: VAP (vaporized / steam tempered)
• Application type: Through holes
• Tolerance class: ISO 2 (6H)
• Shank diameter: 6.0 mm
• Square drive size: 4.9 mm
• Overall length: 80 mm
• Thread length: 18 mm
• Pre-drill diameter (recommended): 5.0 mm
• Number of flutes: 3
• Cutting direction: Right-hand cut
• Flute type: Straight flutes with lead chamfer
• Tool type: Machine tap
• Suitable for materials: General purpose steel, non-ferrous metals, cast iron

Final note

Precision threading for through holes in a wide range of materials, backed by RUKO's quality manufacturing.
