RUKO SCE-DIN223-M33x3.5mm kierrepakka, HSS, metrinen karkea kierre

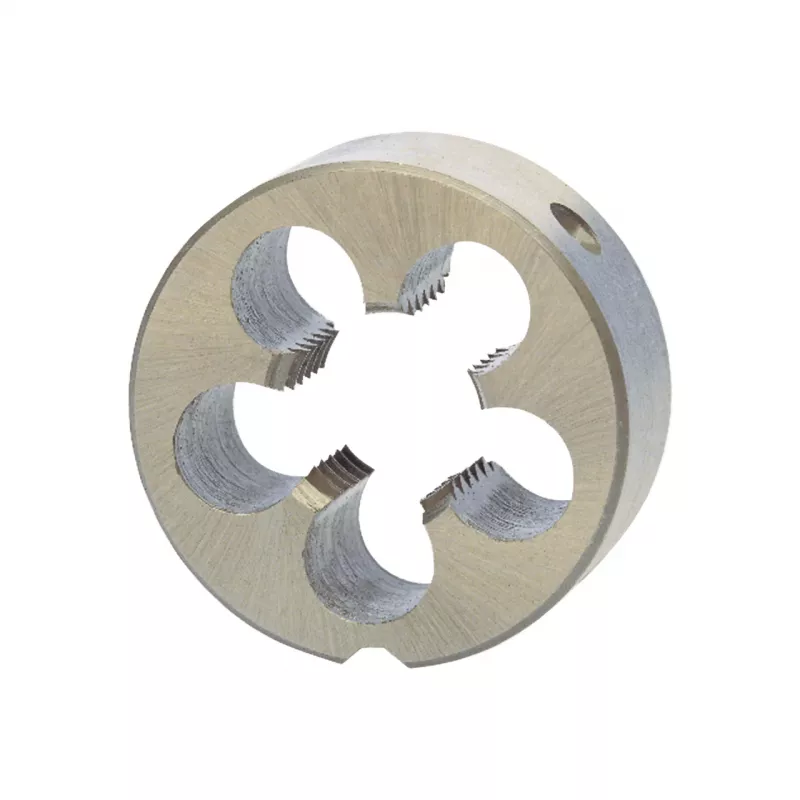

Cutting external metric threads by hand demands a die that stays sharp and accurate across many workpieces. The RUKO SCE-DIN223-M33x3.5mm round die is ground from high speed steel to produce clean, precise M33 coarse threads in unalloyed and low-alloyed steels, non-ferrous metals, and plastics.

Who is it for

Machinists, maintenance technicians, and metalworkers who need a durable, right-hand cutting die for manual or machine threading operations. It fits standard round die holders for secure mounting.

Main features

• Metric coarse thread M33 x 3.5 mm to DIN 13, tolerance class 6g
• Round die form to DIN 223 with 5 flutes for efficient chip removal
• High speed steel (HSS) with bright finish and ground profile
• Right-hand cutting direction for standard external threads
• Outer diameter 65 mm, thickness 18 mm

Specifications

• Thread type: Metric coarse
• Nominal thread diameter: 33 mm
• Thread pitch: 3.5 mm
• Thread standard: ISO Metric (DIN 13)
• Die standard: DIN 223
• Die type: Round die
• Material: High speed steel (HSS)
• Cutting direction: Right-hand
• Tolerance class: 6g
• Outer diameter (D1): 65 mm
• Thickness (h): 18 mm
• Number of flutes: 5
• Application: External thread cutting
• Suitable for materials: Unalloyed and low-alloyed steels, non-ferrous metals, plastics
• Surface finish: Bright
• Manufacturing process: Ground profile
• Tool holder compatibility: Requires suitable round die stock (not included)

Tips

Use a quality cutting oil to extend die life and improve thread finish. Ensure the workpiece is chamfered before starting the thread. Mount the die squarely in a suitable round die stock to avoid cross-threading.
