RUKO SCE-DIN223-MF14x1,5mm kierrepakka, metrinen hienokierre, HSS, DIN 223

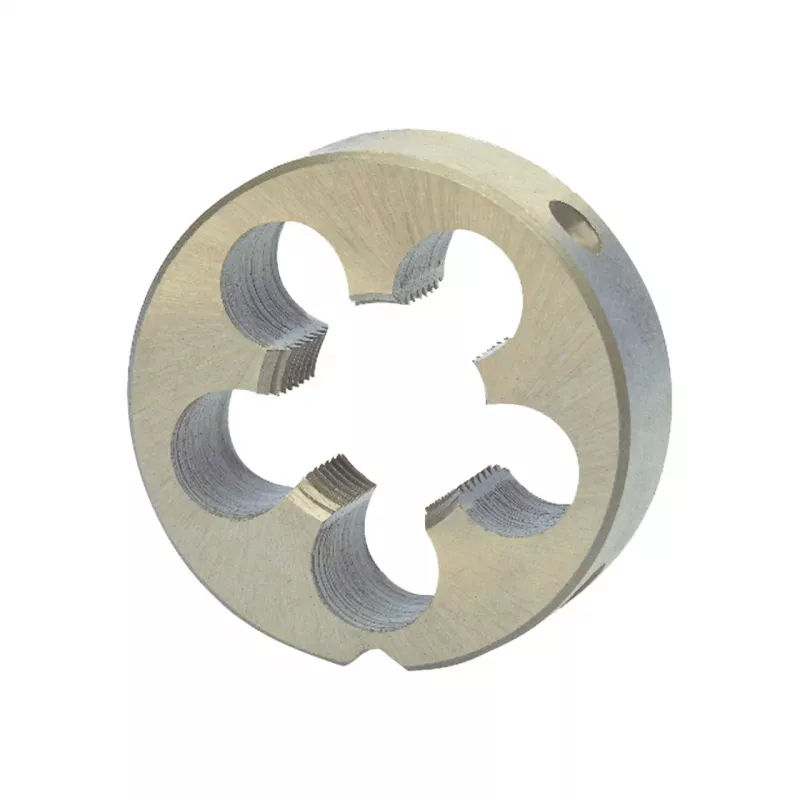

The RUKO SCE-DIN223-MF14x1.5mm round die cuts metric fine external threads with a 14 mm nominal diameter and 1.5 mm pitch. Ground from high-speed steel to DIN 223, it delivers precise threads in unalloyed and low-alloyed steels, non-ferrous metals, and cast iron.

Overview

This round die is a precision tool for manual or machine thread cutting. The ground thread profile ensures accurate pitch and flank geometry, while the bright, uncoated finish reduces friction during cutting. Three flutes provide efficient chip evacuation and allow coolant to reach the cutting edges.

What stands out

• Metric fine thread MF14 x 1.5 mm per DIN 223
• High-speed steel (HSS) for durability
• Ground thread for high precision and surface quality
• Right-hand cutting direction for standard threads
• Outer diameter 38 mm, thickness 10 mm
• Tolerance class 6g for standard external threads

Technical details

• Thread standard: Metric Fine (MF)
• Nominal thread diameter: 14 mm
• Thread pitch: 1.5 mm
• Tool standard: DIN 223
• Material: High-Speed Steel (HSS)
• Cutting direction: Right-hand
• Outer diameter: 38 mm
• Thickness: 10 mm
• Tolerance class: 6g
• Application: For cutting external threads
• Tool type: Round die
• Surface treatment: Bright / Uncoated
• Number of flutes: 3
• Suitable for materials: Unalloyed and low-alloyed steels, non-ferrous metals, cast iron
• Manufacturing process: Ground thread

Our verdict

A reliable round die for cutting metric fine threads in a range of materials. The ground HSS construction ensures clean, accurate threads, making it a solid choice for workshops and maintenance tasks.
