RUKO SPF-FCut-HM-AlTiN-6,0 mm VHM-varsijyrsin

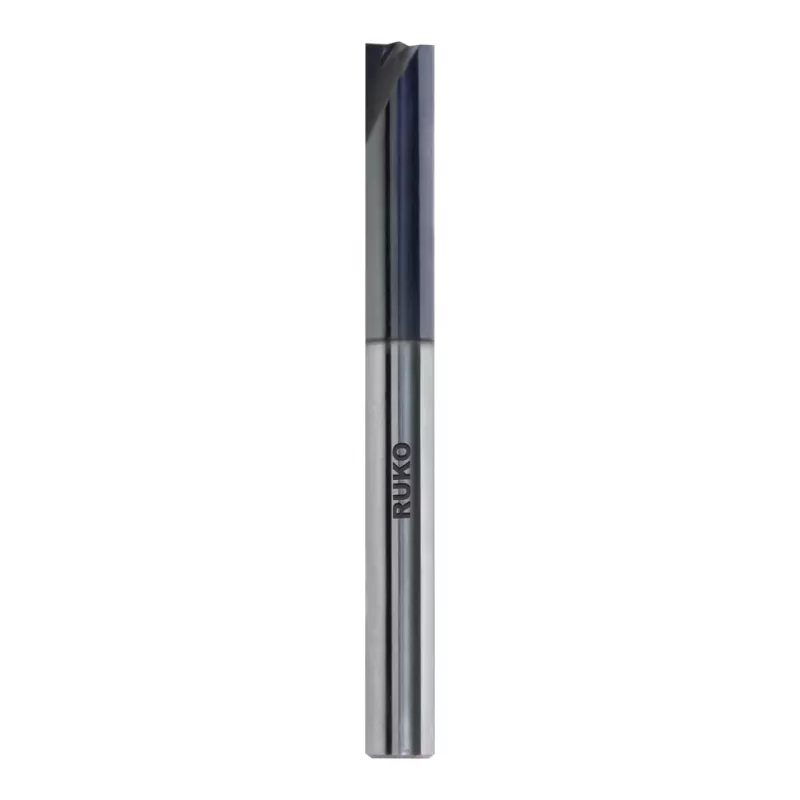

The RUKO GMBH SPF-FCut-HM-AlTiN-6.0mm is a high-performance solid carbide end mill engineered for precision finishing, slotting, and profiling in demanding materials. Its AlTiN coating and 30° helix angle deliver exceptional wear resistance and smooth cutting action, setting it apart from standard end mills.

Highlights

• Solid carbide construction for rigidity and long tool life
• AlTiN coating for high heat resistance and extended performance
• 4-flute design for efficient chip evacuation and superior surface finish
• Square end geometry for precise 90° corners and flat-bottom milling

In daily use

This end mill excels in finishing operations on steel, stainless steel, cast iron, non-ferrous metals, and hardened materials up to 55 HRC. The right-hand cut and h6 shank tolerance ensure stable clamping and accurate machining. External coolant supply is recommended to maximize tool life.

Full specifications

• Cutting diameter: 6.0 mm
• Shank diameter: 6.0 mm
• Overall length: 57.0 mm
• Cutting length: 13.0 mm
• Number of flutes: 4
• Helix angle: 30°
• Coating: AlTiN
• Tool material: Solid carbide
• Cutting edge geometry: Square end
• Application: Finishing, slotting, profiling
• Maximum material hardness: 55 HRC
• Cutting direction: Right-hand
• Shank tolerance: h6
• Coolant supply: External

Final note

RUKO GMBH precision tooling meets high standards for industrial machining applications.
