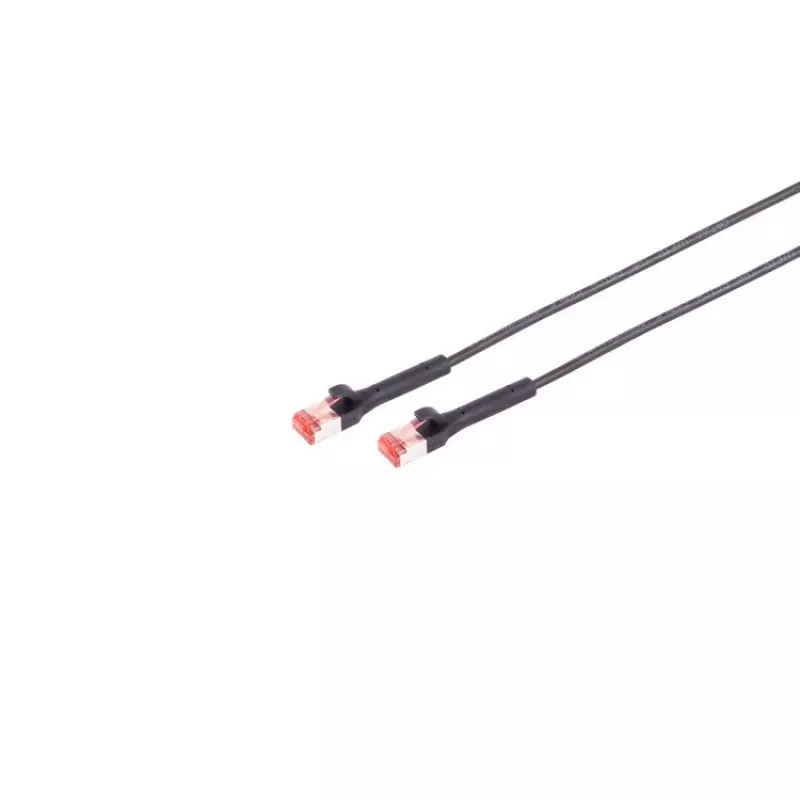

S CONN MAXIMUM CONNECTIVITY Cat. 6A U/FTP -verkkokaapeli, taipuisa RJ45, musta, 0,25 m 08-29005

Short patch cables often fail at the connector: the boot cracks, the clip snaps, or the cable kinks when routed behind a patch panel. This 0.25 m Cat. 6A patch cable solves that with a bendable RJ45 connector that flexes at the boot, protecting the latch and allowing tight bends without signal loss.

Who is it for

Network technicians, data center operators, and home users who need a very short, reliable link between adjacent ports, patch panels, or stacked equipment. The bendable connector is especially useful in high-density racks where space is limited and standard boots would be stressed.

Main features

• Cat. 6A performance: supports 10GBASE-T up to 500 MHz, future-proof for high-speed networks.
• U/FTP shielding: each pair is individually foiled, reducing alien crosstalk in dense installations.
• Bendable RJ45 connector: flexible boot allows 90° bends close to the plug without damaging the cable or latch.
• Gold-plated contacts (50µm): ensure reliable, corrosion-resistant connections.
• Stranded 26 AWG copper conductors: flexible and durable for frequent re-patching.
• PVC jacket: robust and suitable for indoor use.
• PoE support: handles PoE, PoE+, and 4PPoE (PoE++) for powering devices.

Specifications

• Cable length: 0.25 m
• Cable type: Patch cable, Cat. 6A (Class EA)
• Shielding: U/FTP (unshielded overall, foiled twisted pairs)
• Connectors: RJ45 male to RJ45 male, bendable boot
• Conductor: Copper, 26 AWG, stranded
• Jacket: PVC, black
• Data rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• PoE: PoE, PoE+, 4PPoE (PoE++)
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Operating temperature: -20°C to 60°C

Tips

For best performance, avoid sharp bends beyond the connector's designed flexibility. When used in PoE applications, ensure your power sourcing equipment is compatible with the cable's 26 AWG gauge for longer runs.
