SATEL SLIM-S-PIR katto-PIR-liiketunnistin

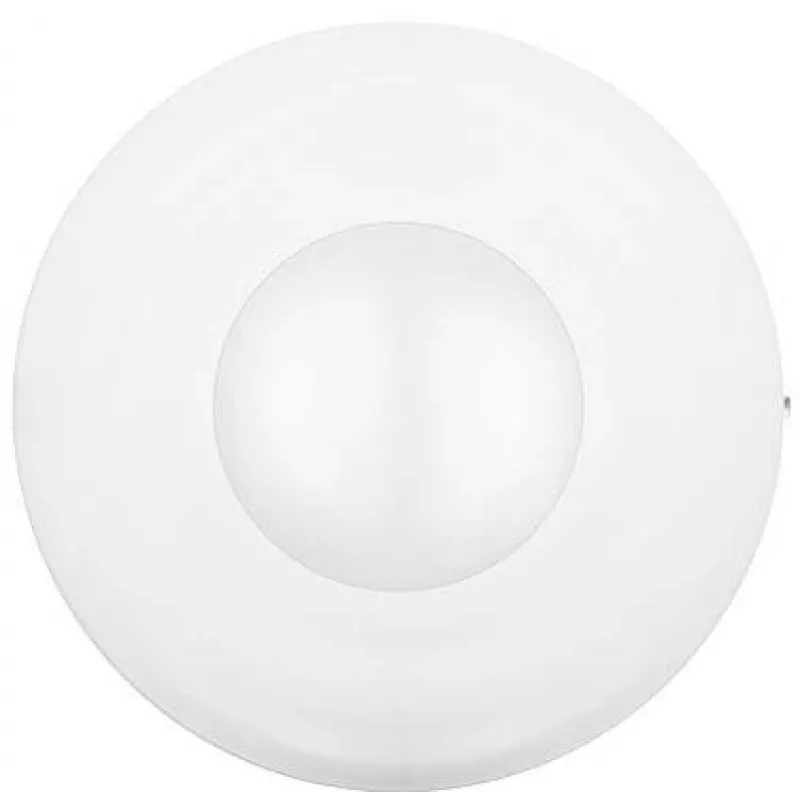

The SATEL SLIM-S-PIR is a professional ceiling-mounted passive infrared (PIR) motion detector designed for indoor security applications. With a 360° detection angle and a range of up to 16 meters in diameter, it provides comprehensive coverage for residential and commercial premises. The detector features digital signal processing, sensitivity adjustment, and built-in EOL resistors, ensuring reliable alarm detection while minimizing false alarms. Its compact design (97 mm diameter) and low current consumption (12 mA) make it an ideal choice for modern security systems.

Advantages

• 360° ceiling-mounted detection covers a wide area
• Digital signal processing reduces false alarms
• Built-in 2EOL/NC resistors simplify installation
• Low power consumption (12 mA) for energy efficiency
• Tamper protection ensures security against sabotage

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Ceiling-mounted installations where wall mounting is not possible
• Integration with SATEL alarm panels and other compatible systems

Key specifications

• Detection method: Passive Infrared (PIR)
• Mounting type: Ceiling
• Detection angle: 360°
• Detection range (diameter): Up to 16 m
• Recommended mounting height: 2.4 - 3.7 m
• Supply voltage: 12 V DC (±15%)
• Max current consumption: 12 mA
• Alarm output: NC relay, max 40 mA / 16 V DC
• Tamper output: NC relay, max 40 mA / 16 V DC
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Compliance: EN 50131-2-2 Grade 2
• Digital signal processing: Yes
• Sensitivity adjustment: Yes
• EOL resistors: 2EOL/NC (built-in)
• LED indicator: Yes (test mode)
• Enclosure tamper protection: Yes
• Diameter: 97 mm

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4–3.7 m and ensure the detection area is free from obstructions. Use with a compatible SATEL alarm panel for full system integration.
