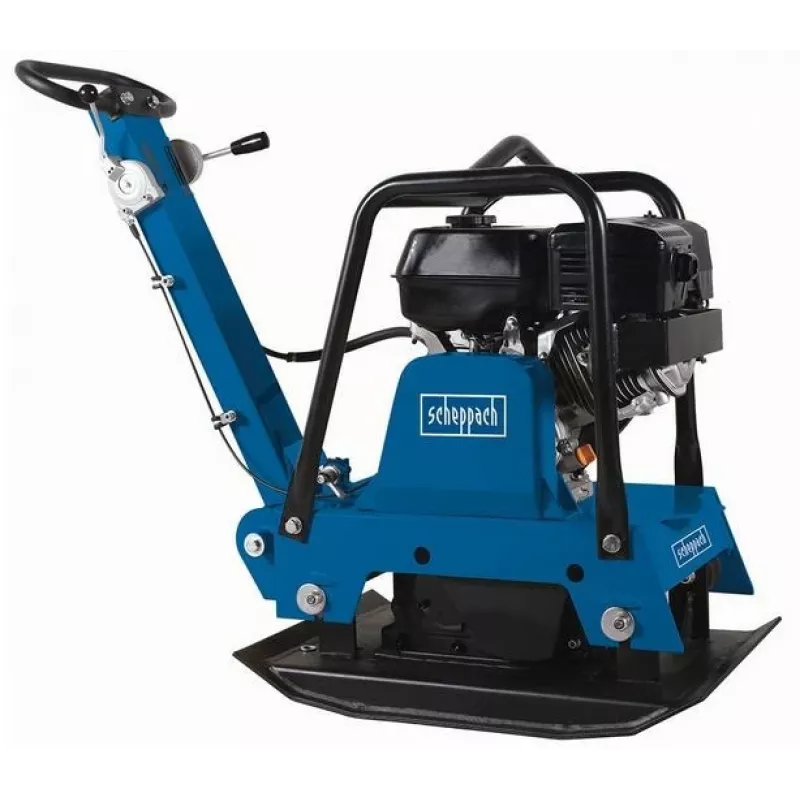

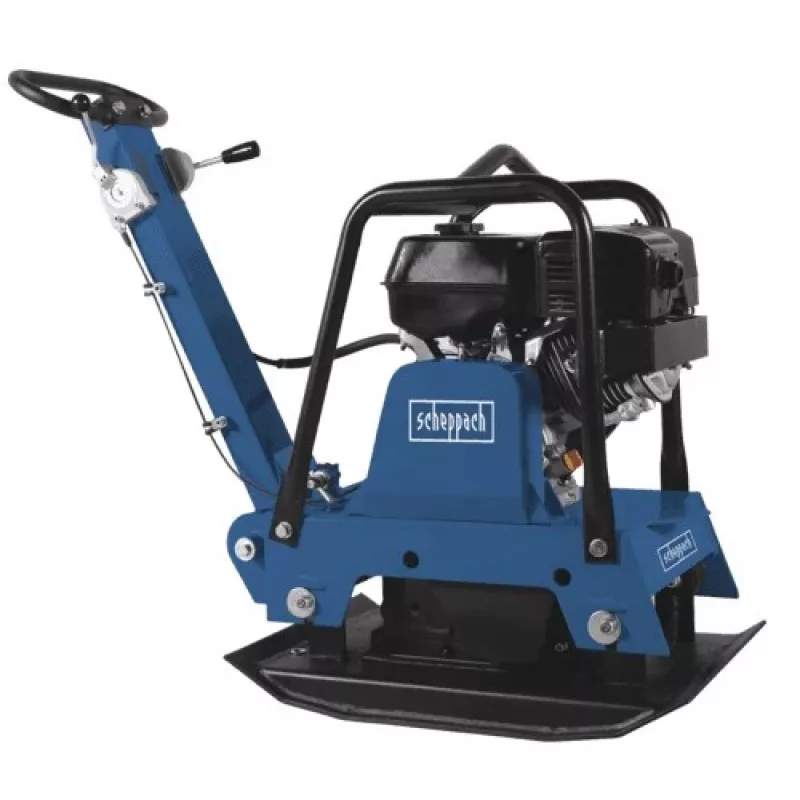

SCHEPPACH HP3000S tärylevy 730x450mm 170kg 9,0 PS bensiinitärylevy

The SCHEPPACH HP3000S Vibratory Plate is a powerful and reliable compaction tool designed for professional use on soil, gravel, and asphalt. With a robust 9.0 HP petrol engine and a centrifugal force of 30.5 kN, it delivers efficient compaction for a wide range of construction and landscaping applications. The large 730x450mm base plate ensures high productivity, while the included transport wheels and rubber mat enhance convenience and versatility.

Advantages

High compaction force of 30.5 kN for deep and effective compaction. Powerful 9.0 HP 4-stroke engine provides reliable performance. Large plate size (730x450mm) covers more area per pass. Durable high-strength steel base plate for long life. Easy to transport with included wheels. Rubber mat protects sensitive surfaces.

Suitable for

• Compacting soil, gravel, sand, and asphalt in construction projects
• Landscaping, paving, and road repair
• Trench backfill and foundation preparation
• Driveways, patios, and walkways

Key specifications

• Engine: 4-stroke petrol, 9.0 HP (6.6 kW), 270 cm³
• Plate size: 730 x 450 mm
• Centrifugal force: 30.5 kN
• Vibration frequency: 4000 vpm
• Compaction depth: 50 cm
• Travel speed: 25 m/min
• Fuel tank capacity: 6.0 L
• Oil tank capacity: 1.1 L
• Starting system: Recoil starter
• Sound power level: 108 dB(A)
• Vibration value (handle): 10.1 m/s²
• Weight: 170 kg
• Included: Transport wheels, rubber mat

Recommendations

For optimal performance, use fresh unleaded petrol and SAE 10W-30 engine oil. Always wear appropriate personal protective equipment.
