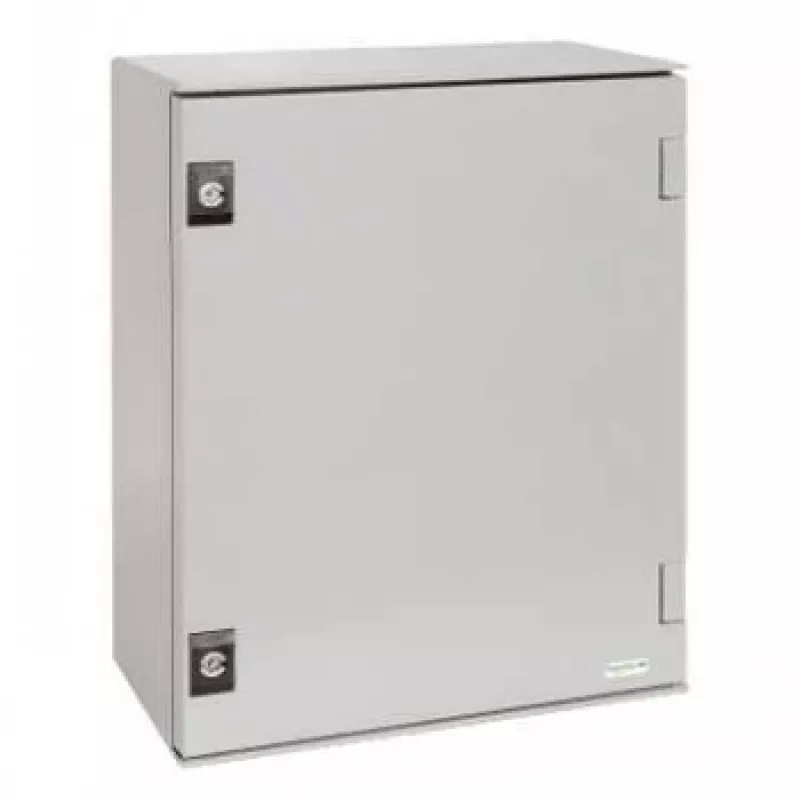

Schneider Electric Thalassa PLM kotelo 430x330x200 mm harmaa

The Schneider Electric Thalassa PLM enclosure is a robust, multi-purpose wall-mounted enclosure designed for demanding industrial and electrical applications. With dimensions of 430 x 330 x 200 mm (H x W x D), this enclosure offers ample space for housing electrical components, control systems, and distribution equipment. Manufactured from glass fibre reinforced polyester, it provides exceptional mechanical strength and durability. The enclosure features an IP66 protection rating, ensuring complete protection against dust and powerful water jets, and an IK10 impact resistance rating, making it suitable for harsh environments. The grey (RAL 7035) colour and plain, reversible door with a 3 mm double-bar lock offer flexibility and security. This model is UV and corrosion resistant, and complies with IEC 62208, UL 508A, and NEMA 4X standards.

Advantages

High protection against dust and water (IP66) and impact (IK10) ensures reliable performance in challenging conditions. The glass fibre reinforced polyester material provides excellent corrosion and UV resistance, extending the product's lifespan. The reversible door and double-bar lock offer convenient installation and secure closure. Insulation Class II and rated insulation voltage up to 1000 V enhance safety.

Suitable for

• Industrial control cabinets
• Electrical distribution boxes
• Telecommunications enclosures
• Outdoor installations requiring weatherproofing

Key specifications

• Enclosure Type: Multi-purpose enclosure
• Mounting Type: Wall-mounted
• Material: Glass fibre reinforced polyester
• IP Protection Level: IP66
• IK Protection Level: IK10
• External Height: 430 mm
• External Width: 330 mm
• External Depth: 200 mm
• Colour: Grey (RAL 7035)
• Door Type: Plain, reversible
• Number of Doors: 1
• Lock Type: 3 mm double-bar lock
• Number of Locks: 1
• Gland Plate: No
• UV Resistance: Yes
• Corrosion Resistance: Yes
• Operating Temperature: -30 to 130 °C
• Standards: IEC 62208, UL 508A, NEMA 4X
• Insulation Class: Class II
• Rated Insulation Voltage (Ui): 1000 V

Recommendations

For optimal installation, ensure the wall surface is flat and capable of supporting the enclosure's weight. Use appropriate cable glands for entry points to maintain IP66 integrity. This enclosure is ideal for use in industrial automation, power distribution, and outdoor telecom applications.
