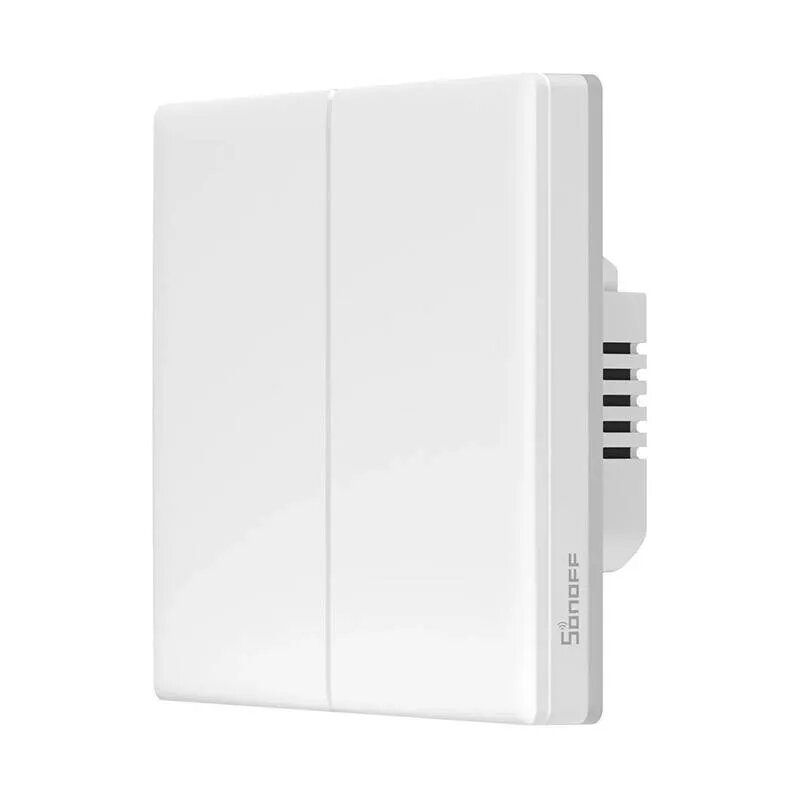

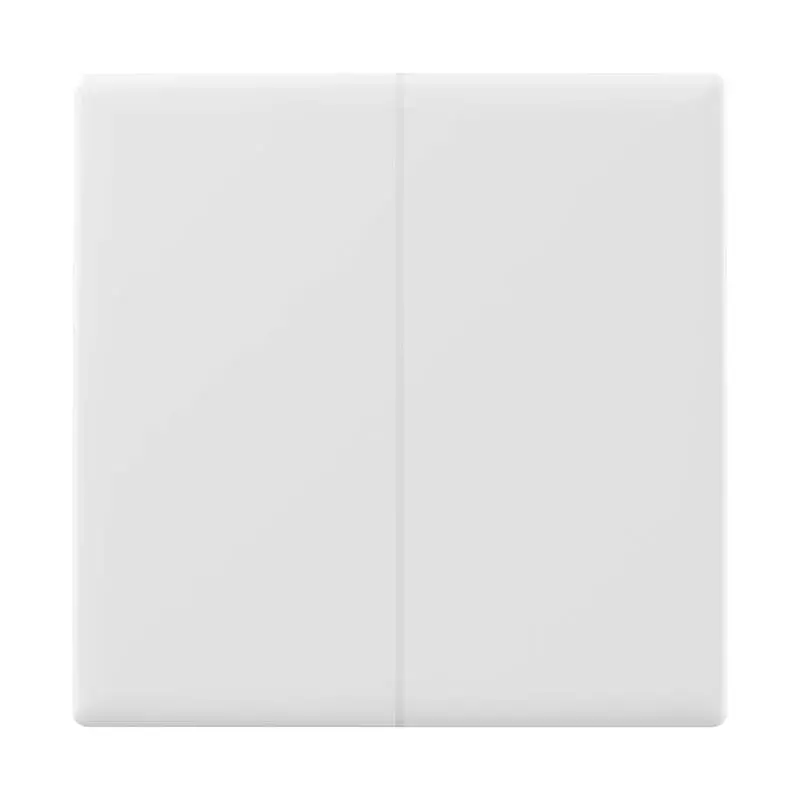

Seinäasennettava älykäs Sonoff WiFi-kosketuskytkin TX T5 2C, 2-kanava, kosketuspaneelit kahdelle virtapiirille

Smart Wi‑Fi Touch Wall Switch Sonoff TX T5 2C is a two‑channel touch switch designed for wall mounting and controlling two independent lighting circuits or small appliances. It supports Wi‑Fi connection (2.4 GHz), remote control via the eWeLink app, voice assistants (Amazon Alexa, Google Home, Alice) and basic automation functions such as timers and smart scenes. The device features customizable colorful LED backlighting, touch feedback (sound and vibration), and fits standard 86 × 86 mm wall boxes. The set includes the switch, two screws and a user manual.

Advantages

The Sonoff TX T5 2C provides direct touch control for two circuits with up to 1200 W per channel (240 V) and a combined power of 2400 W. It integrates with eWeLink for remote control and scheduling, supports bidirectional lighting control when used as a gateway with compatible Sonoff devices, and works with popular voice assistants for hands‑free operation. Additional features include an adjustable timer, 8 backlight modes for easy locating in the dark, and optional decorative panels to change the appearance.

Suitable for

• Controlling two separate lighting circuits in homes or apartments
• Switching small electrical appliances within specified power limits
• Integrating with smart home scenes and schedules via eWeLink
• Voice‑controlled light switching using Alexa, Google Home or Alice

Key specifications

• Manufacturer: Sonoff
• Model: TX T5 2C (MPN: T5-2C-86, EAN: 6920075740233)
• Channels: 2
• Input / Output Voltage: 100–240 V ~ 50/60 Hz, max. 10 A
• Power: 1200 W max. per channel (240 V), 2400 W total
• LED load: 150 W max. per channel (240 V) / 75 W max. per channel (100 V)
• Wi‑Fi: IEEE 802.11 b/g/n, 2.4 GHz
• Bluetooth: 4.2
• App: eWeLink (iOS, Android)
• Color: White
• Material: PC, CRS
• Dimensions: 86 × 86 × 39 mm
• Weight: 168.5 g

How to use

Install the Sonoff TX T5 2C into a standard 86 mm wall box following electrical safety rules and the included user manual. Connect each circuit to the corresponding channel following the wiring diagram. Pair the switch with the eWeLink app over 2.4 GHz Wi‑Fi for remote control, scheduling and scene creation. You can also link the device to Alexa, Google Home or Alice for voice control. Use the touch buttons to operate each channel locally; the switch provides audible and haptic feedback and shows the selected backlight mode.

Recommendations

Ensure that connected loads do not exceed the specified per‑channel and total power ratings. For LED fixtures check the LED load limits. Use a stable 2.4 GHz Wi‑Fi network for reliable remote control. If integrating as a gateway or with additional Sonoff devices, follow manufacturer instructions for scene and device pairing. For safety, turn off mains power before installation and consult a qualified electrician if unsure.
