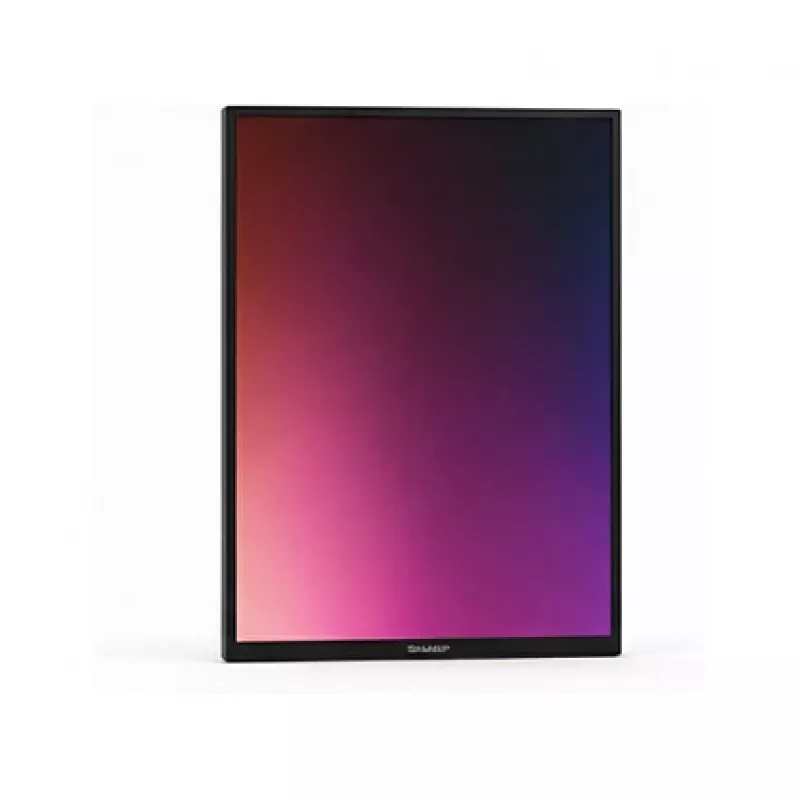

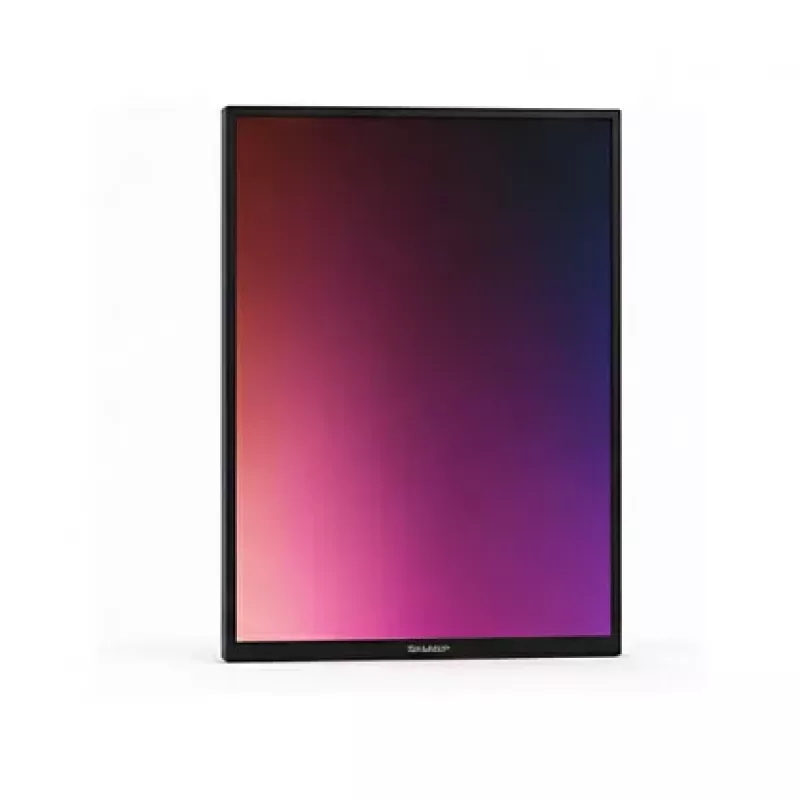

Sharp EP-CA22 A2 E-Paper Full Color Display 13,3 tuuman ACeP

The Sharp EP-CA22 is an A2-sized full color e-paper display utilizing Advanced Color ePaper (ACeP) technology. With a 13.3-inch screen and 1600x1200 resolution, it delivers vibrant 7-color images (red, green, blue, cyan, magenta, yellow, black, white) without the need for a backlight. Its bistable nature retains the image even when power is removed, making it ideal for low-power signage, retail labels, and information displays.

Advantages

Ultra-low power consumption (only draws power during refresh), wide viewing angle >170°, and excellent readability in direct sunlight. The display is lightweight and thin, perfect for portable or wall-mounted applications. Integrated controller simplifies integration with Raspberry Pi, Arduino, or STM32 via 4-wire SPI interface.

Suitable for

• Electronic shelf labels (ESL)
• Digital signage for retail, museums, or offices
• Information boards (timetables, menus, maps)
• IoT devices requiring low-power displays
• Educational and prototyping projects

Key specifications

• Display Technology: ACeP (Advanced Color ePaper)
• Display Size: 13.3 inches (A2)
• Resolution: 1600 x 1200 pixels
• Color Depth: 7 colors + black/white
• Interface: 4-wire SPI
• Viewing Angle: >170°
• Full Refresh Time: ~15-30 seconds
• Operating Voltage: 3.3V / 5V
• Active Area: 270.4 x 202.8 mm
• Pixel Pitch: 0.169 mm
• Connector: 24-pin FPC
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -25°C to 70°C

Recommendations

For optimal performance, use with a compatible driver board and ensure proper SPI timing. The display is sensitive to static discharge; handle with care. Development resources are available for Raspberry Pi, Arduino, and STM32 platforms.
