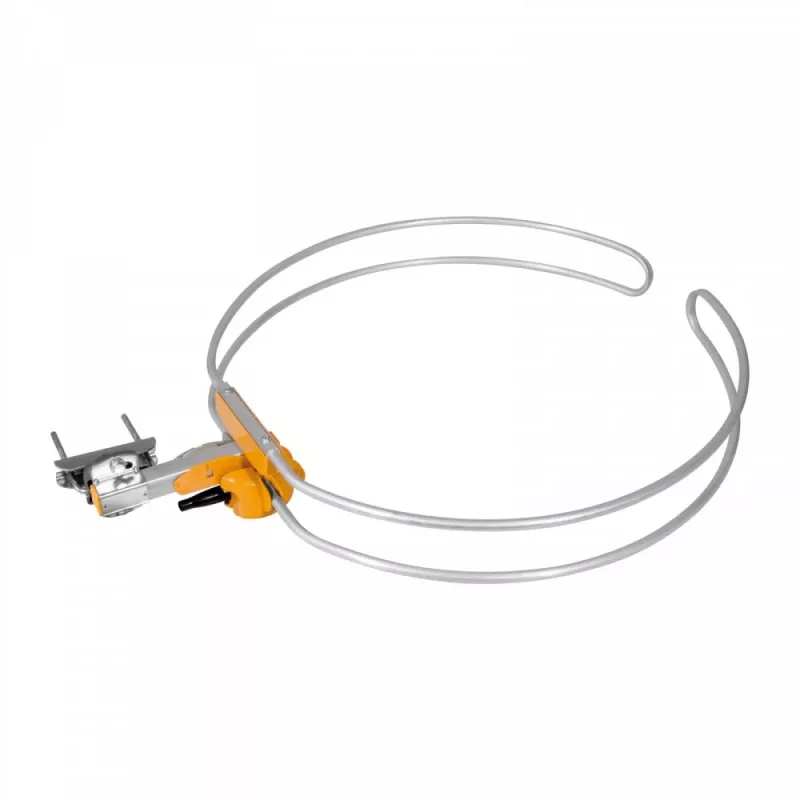

Televes 1201 FM-radioantenni 1 dB

The Televes 1201 is a high-performance outdoor FM dipole antenna designed for clear reception of FM radio broadcasts in the 87.5-108 MHz band. With a gain of 0 dBd (2.15 dBi), it provides reliable signal capture for standard FM tuners and receivers. Its robust, weather-resistant construction ensures long-lasting performance in outdoor environments.

Advantages

This antenna offers excellent value for FM radio enthusiasts. Its omnidirectional reception pattern in the horizontal plane allows for consistent signal pickup from multiple directions without the need for precise aiming. The aluminum radiating elements and UV-resistant plastic housing provide durability against wind, rain, and sun exposure. Easy mast mounting (up to 50mm diameter) simplifies installation.

Suitable for

• Outdoor FM radio reception in residential or commercial settings
• Users seeking a reliable, low-gain antenna for local FM stations
• Integration with standard FM tuners, receivers, and audio systems

Key specifications

• Antenna Type: Dipole Antenna
• Frequency Range: 87.5 - 108 MHz
• Gain: 0 dBd (2.15 dBi)
• Impedance: 75 Ohm
• Connector Type: F-type
• Polarization: Horizontal
• Number of Elements: 1
• Material: Aluminum (radiating elements), UV-resistant plastic (housing)
• Mounting Type: Mast Clamp (up to 50mm diameter)
• Wind Load: 2.5 N (at 130 km/h)
• VSWR: < 2:1
• Reception Pattern: Omnidirectional (in horizontal plane)
• Operating Temperature: -20°C to +50°C
• Application: Outdoor FM Radio Reception
• Compatibility: Standard FM tuners and receivers
• Construction: Robust and weather-resistant

Recommendations

For optimal performance, mount the antenna as high as possible and use high-quality 75 Ohm coaxial cable with F-type connectors. Ensure the mast is securely grounded. This antenna is ideal for areas with strong to moderate FM signal strength.
