Termostaattinen patteriventtiili Avatto TRV10 Zigbee Tuya langaton ohjaus, älykäs TRV

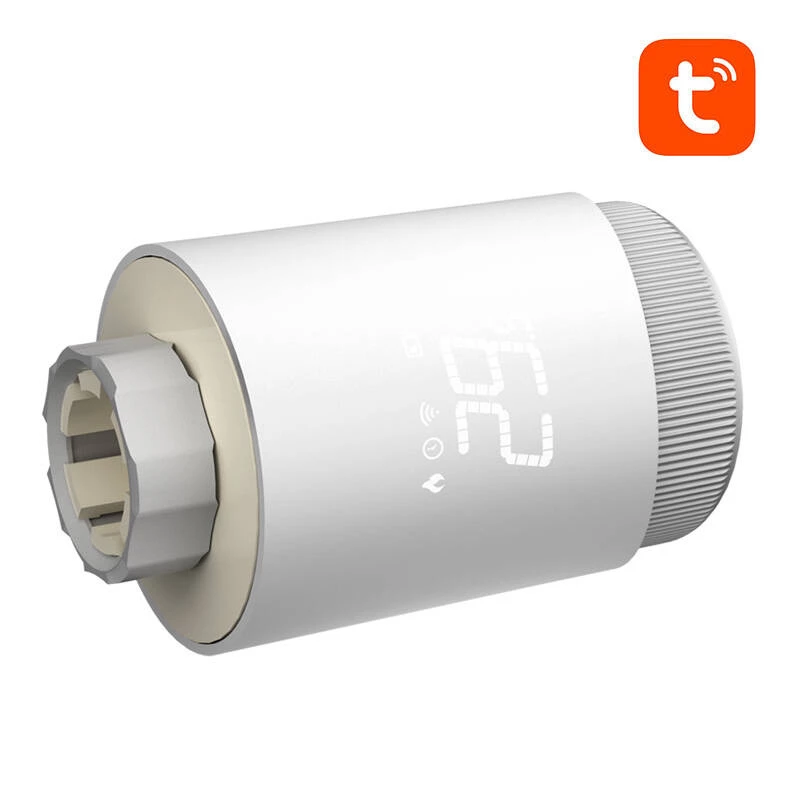

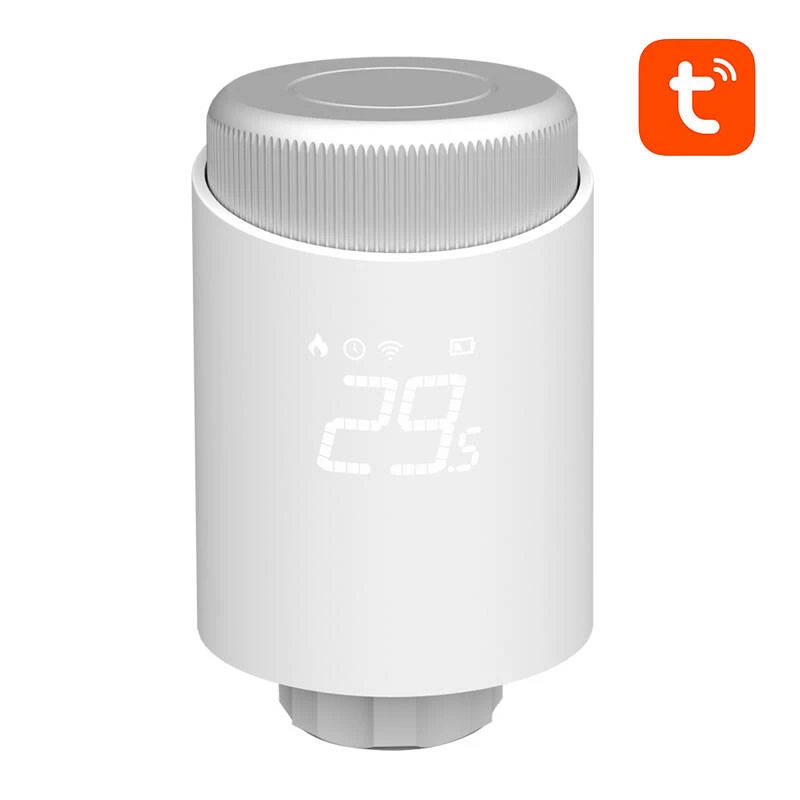

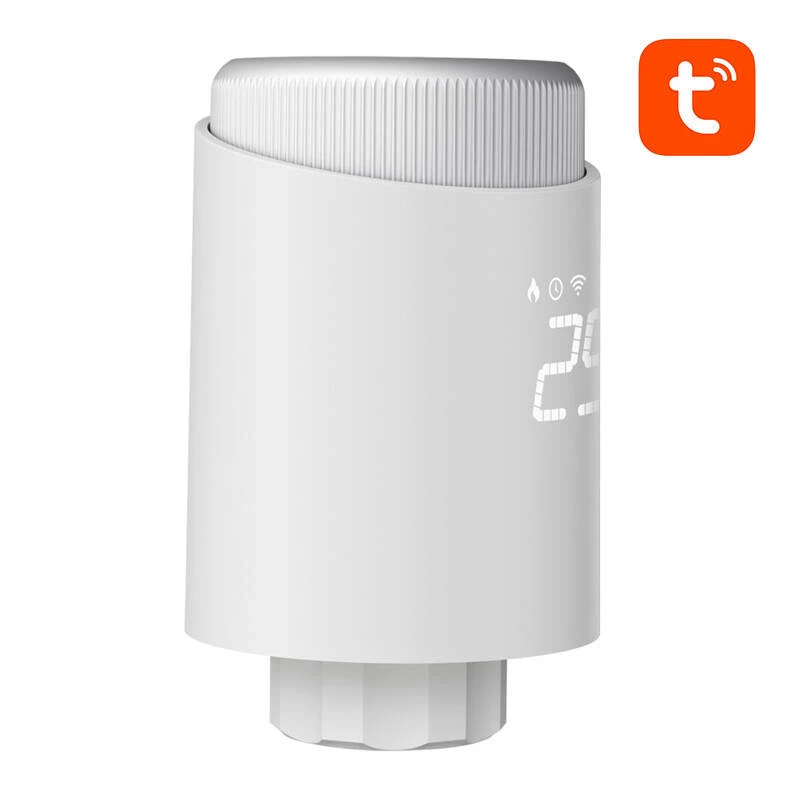

Avatto TRV10 Zigbee Tuya smart thermostatic head is a compact, battery-powered device for wireless radiator temperature control. Designed to replace standard TRV heads, the Avatto TRV10 works with Zigbee hubs and the Smart Life / Tuya app to enable remote and automated regulation of radiator output, weekly scheduling, temperature history recording and group control. The package includes the thermostatic head, six adapters and an instruction manual.

Advantages

The Avatto TRV10 combines a compact form factor (59.4 × 99.3 × 59.4 mm) with adjustable display rotation and brightness, multiple operating modes (auto / manual / off / on), and low-maintenance power from three AA batteries. It supports Zigbee connectivity for integration with smart gateways and voice assistants, offers temperature calibration and an open-window detection feature, and includes adapter fittings for compatibility with different radiator valves.

Suitable for

• Zoned heating control in homes and apartments
• Remote and scheduled radiator management via Smart Life / Tuya
• Energy-saving temperature automation and scene linkages
• Rooms where open-window detection and temperature calibration are useful

Key specifications

• Producer: Avatto
• Model: TRV10
• Dimensions: 59.4 × 99.3 × 59.4 mm
• Battery: 3 × 1.5 V AA
• Maximum temperature: 90°C
• Connection: M30 × 1.5 mm
• Degree of protection: IP20
• Ambient operating temperature: 0–50°C

How to use

Install the thermostatic head on a compatible radiator valve using one of the supplied adapters, following the instruction manual. Insert three AA batteries and configure the device in the Smart Life or Tuya app via a Zigbee gateway or compatible hub. Use the app to set weekly schedules, program temperature setpoints, calibrate the temperature sensor and enable open-window detection. For voice control link the device through a compatible smart gateway to assistants such as Amazon Alexa or Google Home.

Recommendations

Place the Avatto TRV10 on interior radiators away from direct drafts or heat sources for accurate temperature readings. Regularly check battery status and replace all three AA cells when indicated. Use the app’s child lock to prevent unintended adjustments and create automations or groups for synchronized control of multiple valves.
