THERMALTAKE virtalähde - Toughpower GF3 ARGB 750W Gold - TT Premium Edition

Power Up Next Generation Hardware

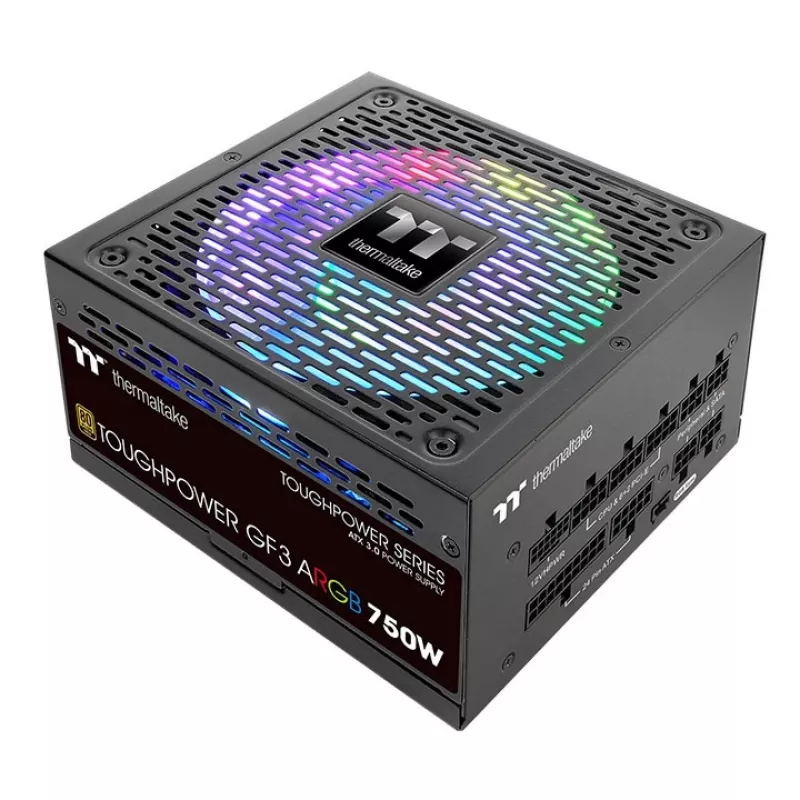

Toughpower GF3 ARGB Gold Series (750W/850W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector, the new ATX 3.0 PSU is ready to take full advantage of next-gen GPUs and CPUs. The 16.8 million-color 140mm addressable RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting, and supports synchronization with mainstream motherboards.

Fully Compatible with Intel ATX 3.0 Standards
Toughpower GF3 ARGB series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready
Toughpower GF3 ARGB Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs natively. The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF3 ARGB 750W can deliver up to 300W for PCIe 5.0 graphics cards.

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The GF3 ARGB series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.

Glow with the Flow

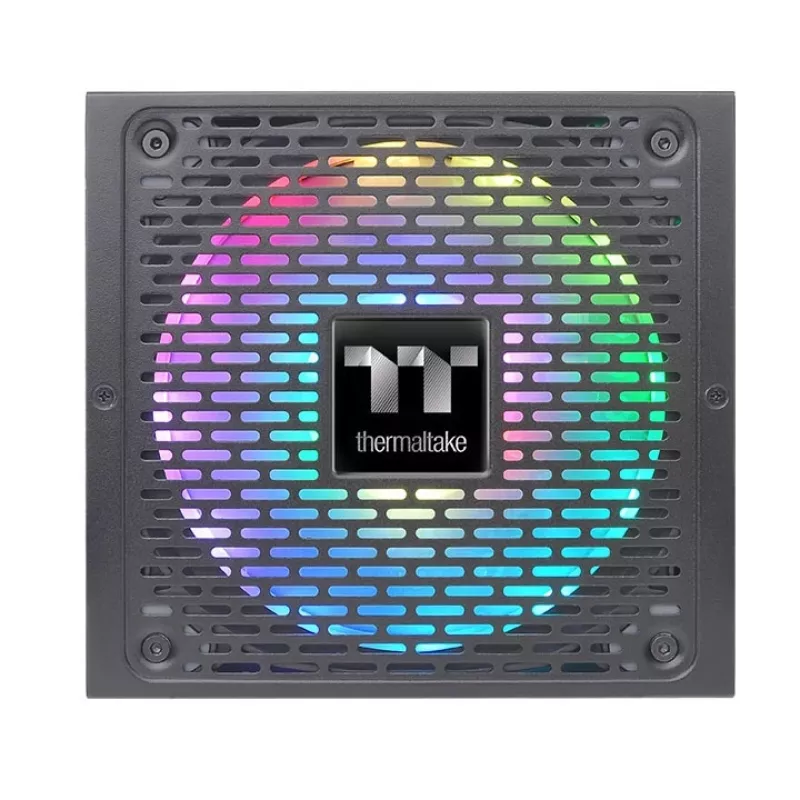

The built-in RGB Fan features with addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. The lighting modes and color options can be switched through physical control buttons.

Be Smart, Stay Quiet

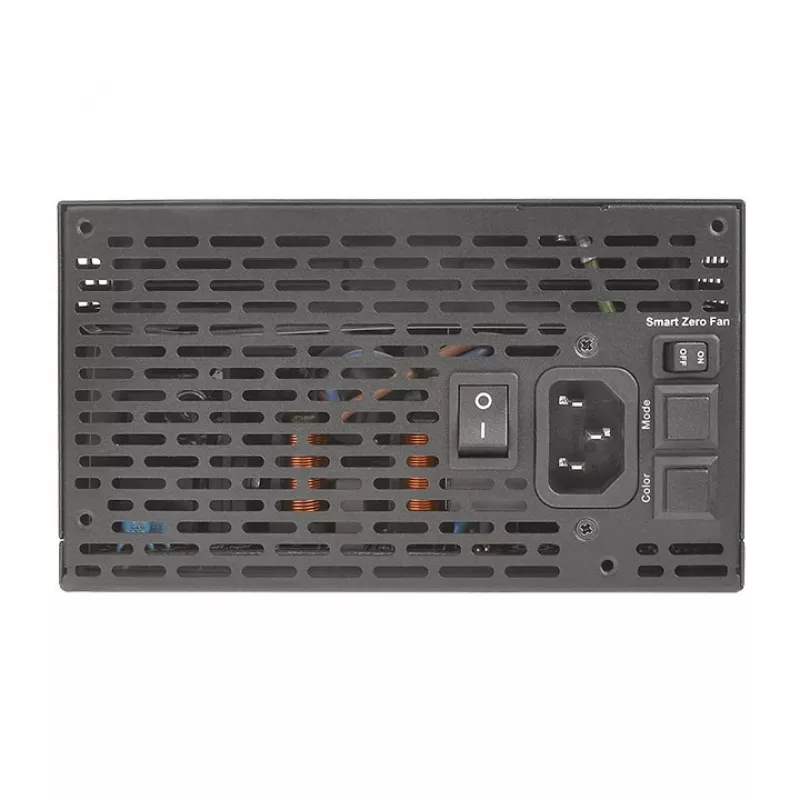

Featuring a 140mm fluid dynamic bearing fan to creates the perfect balance between silence and superior cooling. Furthermore, with the Smart Zero Fan, the fan will not spin until it reaches a certain temperature, minimizing the fan noise.

<30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

17ms and up Hold Up Time
During a power interruption, your computer might shut down or reboot. We make sure that the GF3 ARGB series will deliver at least 17ms at 100% workload, without system reboot or resetting.
We make sure the GF3 ARGB series will deliver at least 17ms at 100% workload, without system reboot or resetting.

More Stable than Ever
100% high quality Japanese 105°C/221°F capacitors provides great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

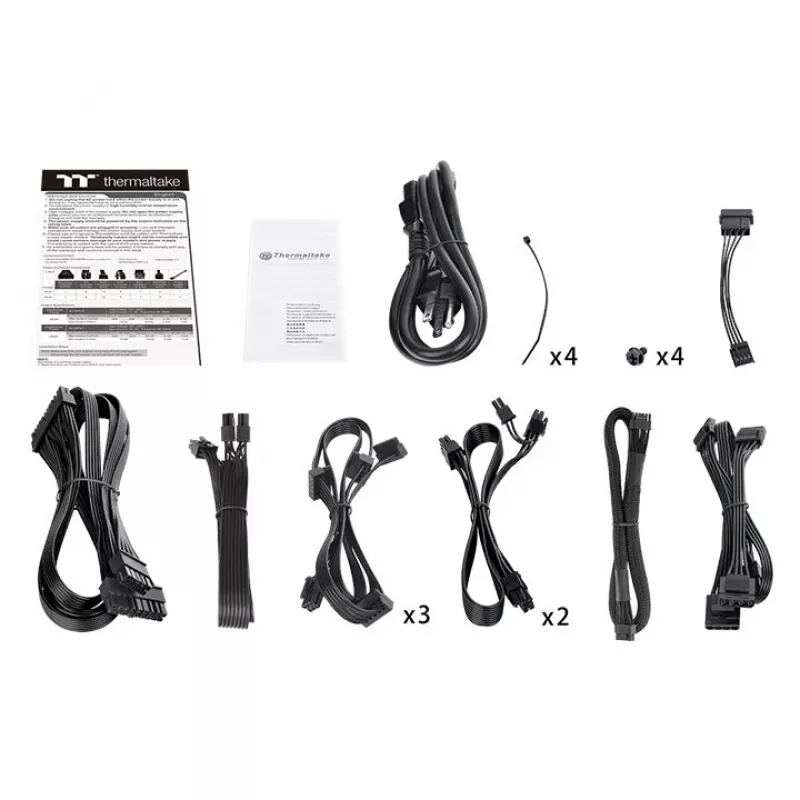

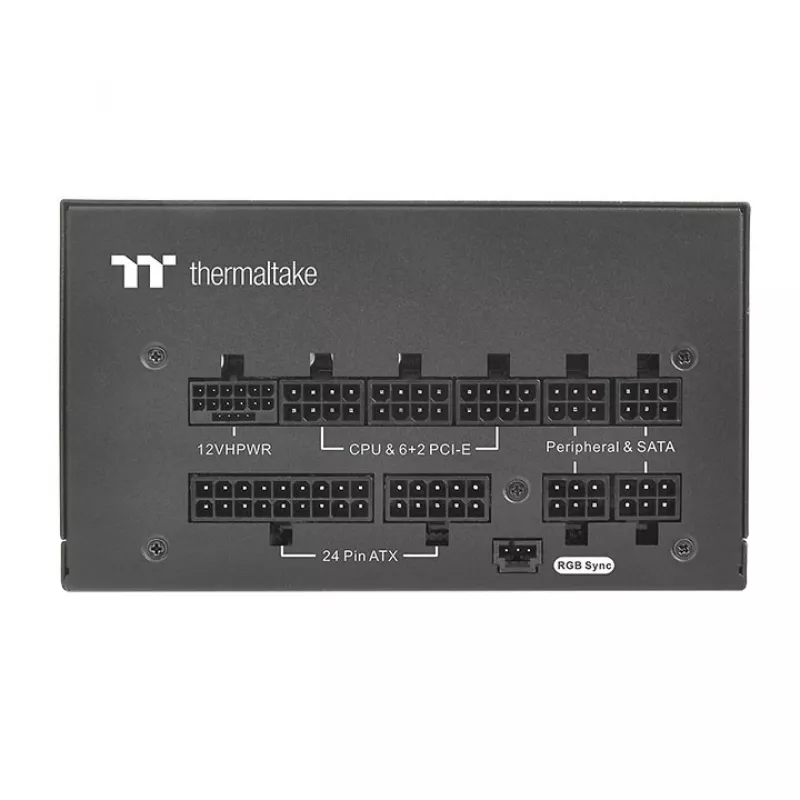

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF3 ARGB series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel processors to achieve maximum energy saving.

CYBENETICS - EFFICIENCY LEVEL CERTIFICATION – PLATINUM & GOLD
Toughpower GF3 750W ARGB is certified to CYBENETICS PLATINUM in 115V input and GOLD in 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥89% to ＜91% of 115V input and ≥87% to ＜89% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power)

CYBENETICS – NOISE LEVEL CERTIFICATION – STANDARD+
Toughpower GF3 ARGB 750W is certified to CYBENETICS STANDARD+ in terms of the noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

How to use

Install the PSU into a compatible ATX case following standard safety procedures: switch off mains power, connect the 24‑pin ATX motherboard connector and required CPU and PCIe power cables, and route modular cables to minimize obstruction to airflow. For PCIe 5.0 GPUs, use the native 16‑pin (12VHPWR) connector and observe the recommended wattage indicated on the connector or GPU manufacturer guidelines. Connect the 5V addressable RGB cable to a compatible motherboard header to enable synchronized lighting control via motherboard software.

Recommendations

Use this PSU in systems with adequate ventilation; avoid sustained operation above rated ambient temperatures. When installing high‑power graphics cards, ensure your case and cooling provide sufficient airflow and follow GPU vendor guidelines for power delivery and connector use.
