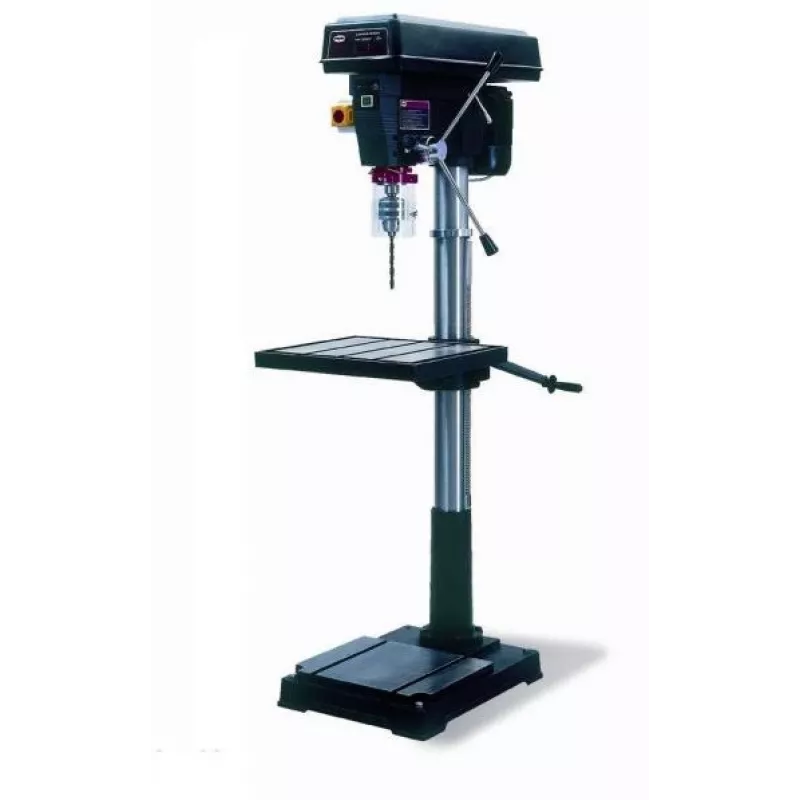

TRITON PROMA pylväsporakone E-2020F/400

The TRITON PROMA Pillar Drill E-2020F/400 is a robust and versatile drilling machine designed for professional workshops and industrial applications. With a powerful 1.1 kW motor and 400 V three-phase power supply, it delivers reliable performance for drilling in steel, wood, and other materials. The 16-speed gearbox provides a wide range of spindle speeds from 180 to 2740 RPM, allowing precise drilling for various tasks. The machine features a sturdy cast iron base and column, ensuring stability and durability during operation.

Advantages

High torque and power for heavy-duty drilling; 16-speed selection for optimal cutting speed; large drilling capacity up to 20 mm in steel; precise depth adjustment with scale; tilting table for angled drilling; safety features including emergency stop and chuck guard.

Suitable for

• Metalworking workshops
• Woodworking shops
• Maintenance and repair facilities
• Educational institutions
• DIY enthusiasts

Key specifications

• Motor Power: 1.1 kW
• Voltage: 400 V
• Frequency: 50 Hz
• Spindle Taper: MK2
• Max Drilling Capacity (Steel): 20 mm
• Spindle Speed Range: 180 - 2740 RPM
• Number of Spindle Speeds: 16
• Spindle Travel: 80 mm
• Throat Depth: 170 mm
• Table Dimensions: 290 x 290 mm
• Table Tilt: ±45°
• Column Diameter: 70 mm
• Max Distance Spindle to Table: 720 mm
• Max Distance Spindle to Base: 1230 mm
• Chuck Capacity: 3 - 16 mm
• Chuck Type: Keyed
• Drive Type: V-belt
• Safety Features: Emergency stop, Chuck guard

Recommendations

For optimal performance, use sharp HSS twist drill bits and ensure the workpiece is securely clamped. Regularly lubricate the spindle and check belt tension. Always wear safety goggles and follow workshop safety guidelines.
